Reliable Controls SMART-Space Controller User Manual

BACNET NETWORK APPLICATIONS
36
 2012-2015 Reliable Controls Corporation

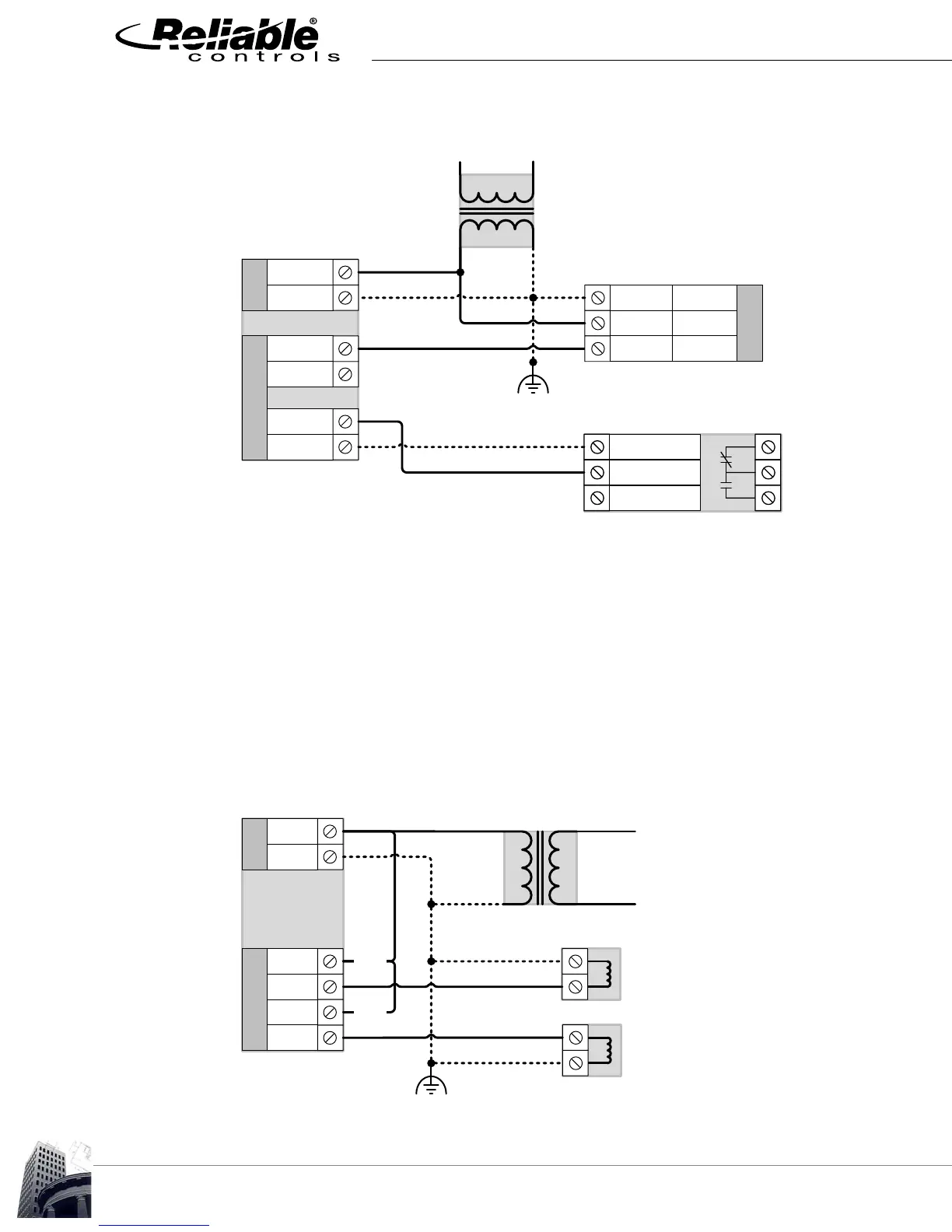

FIGURE 28: UNIVERSAL OUTPUT WIRING
RELAY OUTPUTS
Starting with Revision E, SMART-Space Controllers use latching relays for both
jumper-selectable and fixed relay outputs. The relays provide normally open dry contacts,
rated for continuous loads up to 500mA. Relay outputs switch to the 'open' or 'off' state
upon failure of controller power.
Figure 29 shows the typical Relay output wiring for an SSC or SSCE. The output terminals
are completely isolated between outputs, and from the power connections. For this
reason, SSC and SSCE models can switch any mix of DC and AC loads.
FIGURE 29: SSC AND SSCE TYPICAL RELAY OUTPUT WIRING
OUT2+
OUT2-
SSC
COM
10-30 VAC/DC
120 VAC
FUNCTIONAL DEVICES RIBMU1C
OUT1+
OUT1-
OUTPUT
COM
HOT
MFT
BELIMO ACTUATOR
1 (BLK)
2 (RED)
3 (WHT) INPUT
24 VAC
24COM
PWR
PRI VAC
24 VAC
TRANSFORMER
X1
OUT1+
OUT1-
OUTPUT
SSC
24 VAC LOAD
24VAC
GND
PWR
PRI VAC
24 VAC
TRANSFORMER
L1
L2
OUT2+
OUT2-
24 VAC LOAD
( 24 VAC )
( 24 VAC )
