10A-99
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

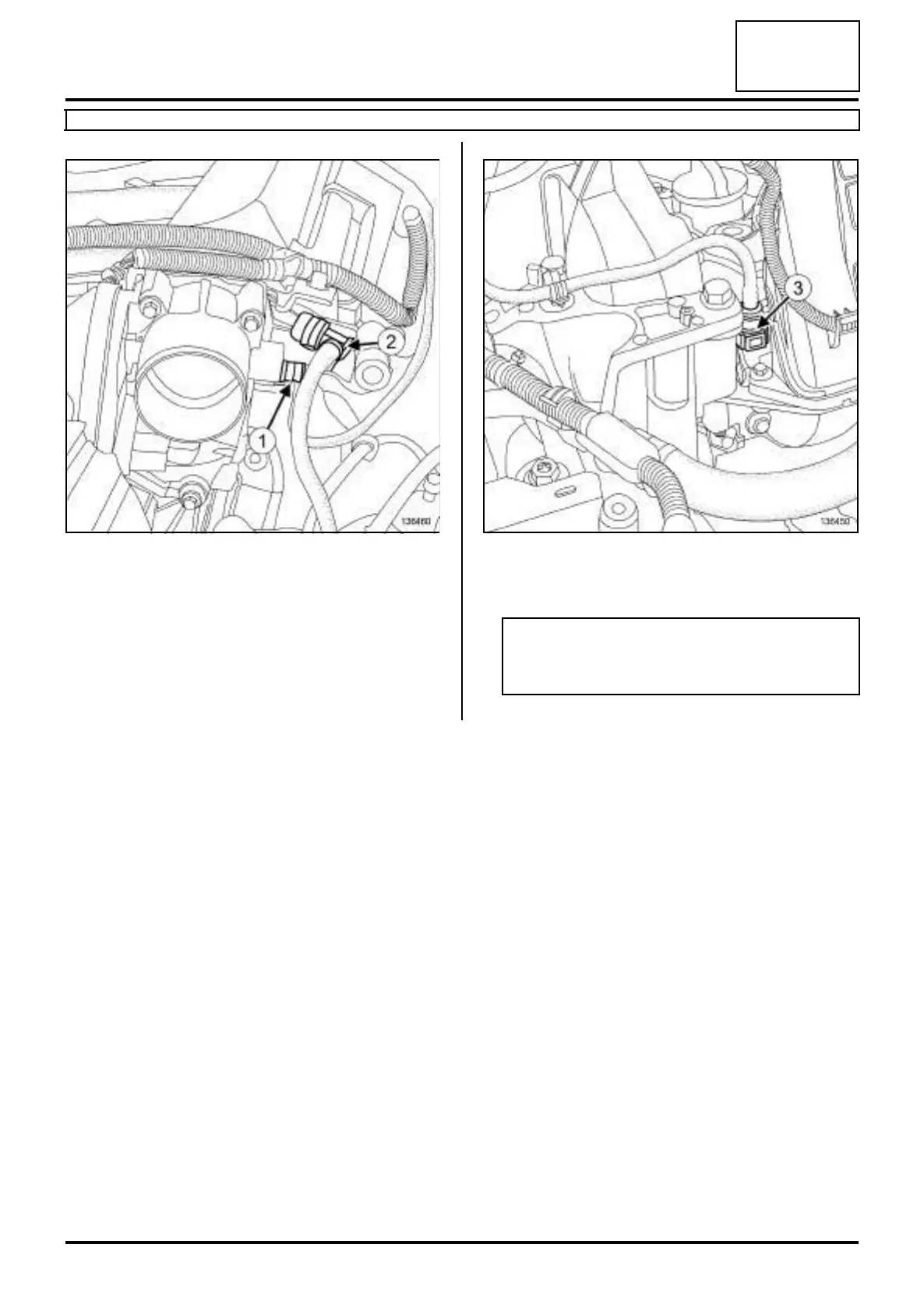

a Disconnect the fuel vapour rebreathing pipe (1) from
the throttle valve.
a Unclip the fuel vapour rebreathing pipe from the
throttle valve.
a Disconnect the vacuum pipe (2) from the throttle val-
ve.
a Disconnect the fuel supply pipe (3) from the injector
rail.
a Fit blanking plugs on the fuel supply pipe.
136460 136450
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
