10A-100
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

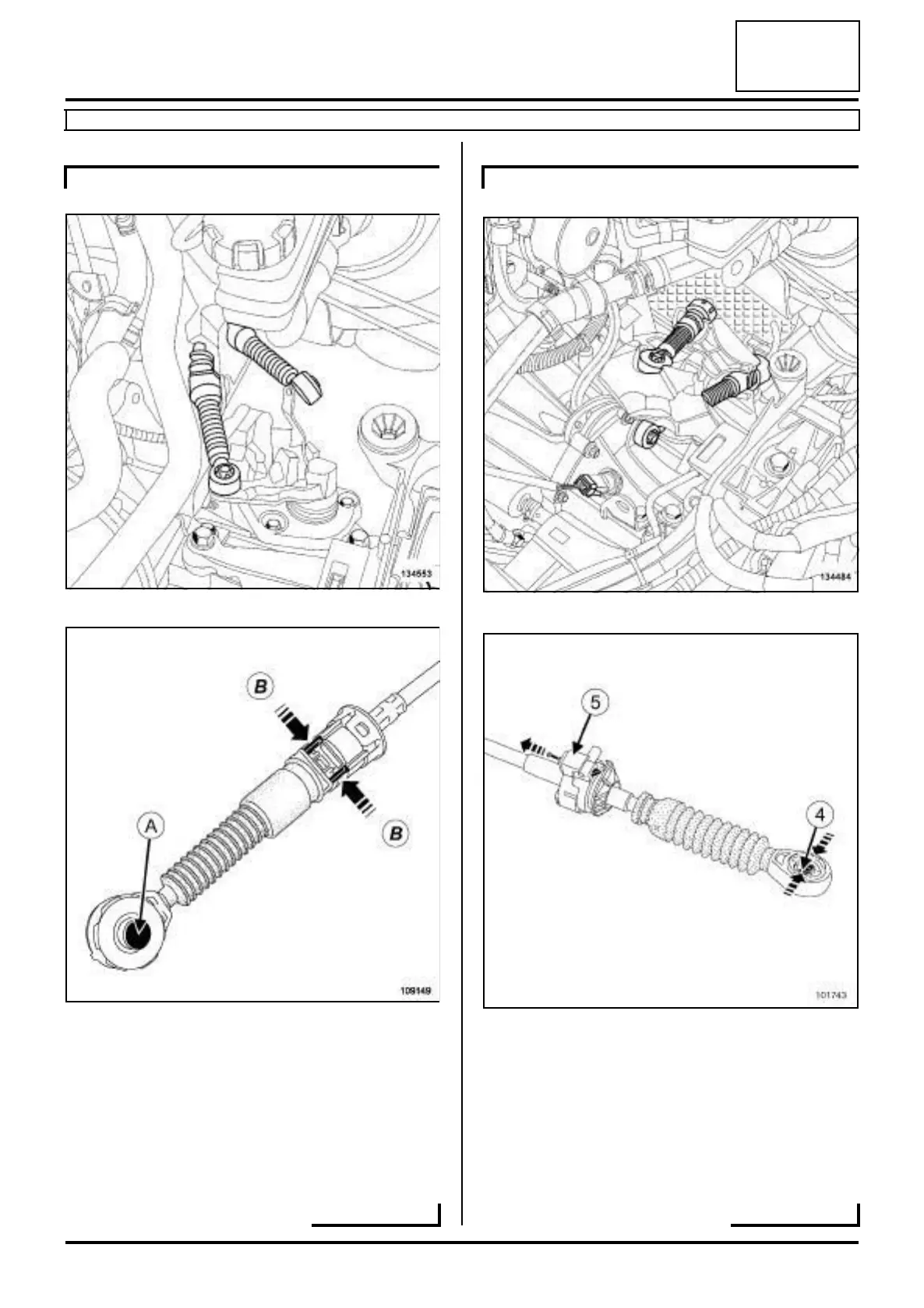

a Unclip:
-the gear control cables from the manual gearbox
by pressing at (A) ,
-the control cables by pushing at (B) .
a Move the gearbox control cables aside.
a Unclip from the manual gearbox controls:
- the anchoring ball joints at (4) ,
- the sleeve stops at (5) .
a Move aside the manual gearbox controls.
K4M, and 848
134553
109149
K4M, and 858 or 866
134484
101743
