10A-101
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

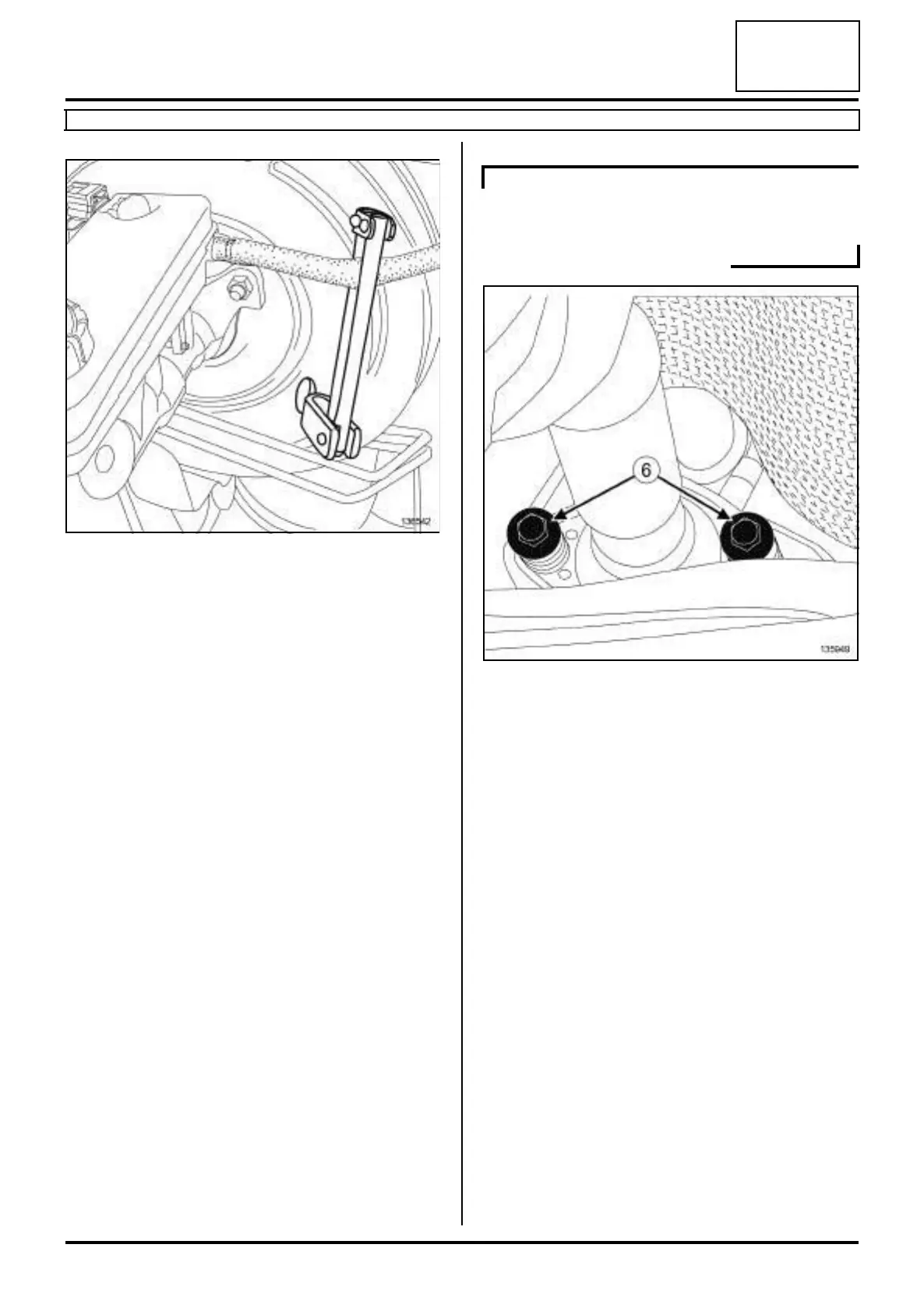

a Place the tool (Ms. 583) between the brake fluid re-
servoir and the clutch master cylinder.
a Remove the hydraulic clutch pipe (see Clutch cir-
cuit: Removal - Refitting) (37A, Mechanical com-
ponent controls).
a Remove:
-the breather pipe onto the gearbox,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
a Drain:
-the cooling system (see 19A, Cooling, Cooling
circuit: Draining - Refilling, page 19A-17) ,
-the manual gearbox (see Manual gearbox oil:
Draining - Refilling) (21A, Manual gearbox).
-the refrigerant circuit using a refrigerant charging
station (see Coolant circuit Draining - Refilling)
(62A, Air conditioning),
-the engine oil if necessary (see 10A, Engine and
cylinder block assembly, Engine oil: Draining -
Refilling, page 10A-40) .
a Disconnect the reverse gear switch connector.
a Remove:
- the bolts (6) from the exhaust bracket,
- the exhaust flange ring,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
- the front left-hand wheel driveshaft (see Front left-
hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
136542
JH3
135949
