ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

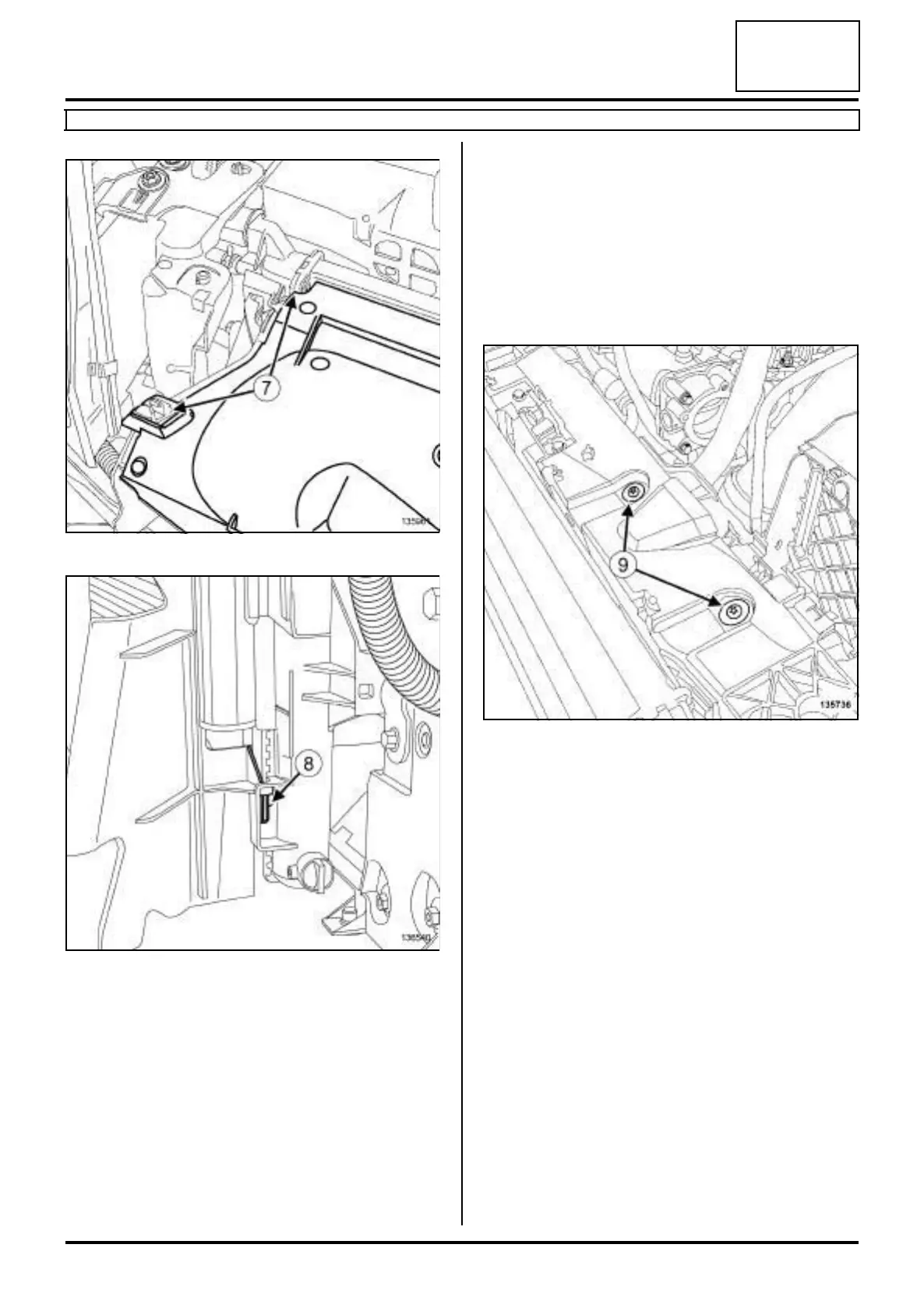

a Unclip the deflectors at (7) and (8) .
a Remove:
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the audible warning (see Horn: Removal - Refit-
ting) (82B, Horn),
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
lower structure),
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms).
a Remove the bolts (9) of the engine wiring channel
from the cooling fan assembly.
