10A-103
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A

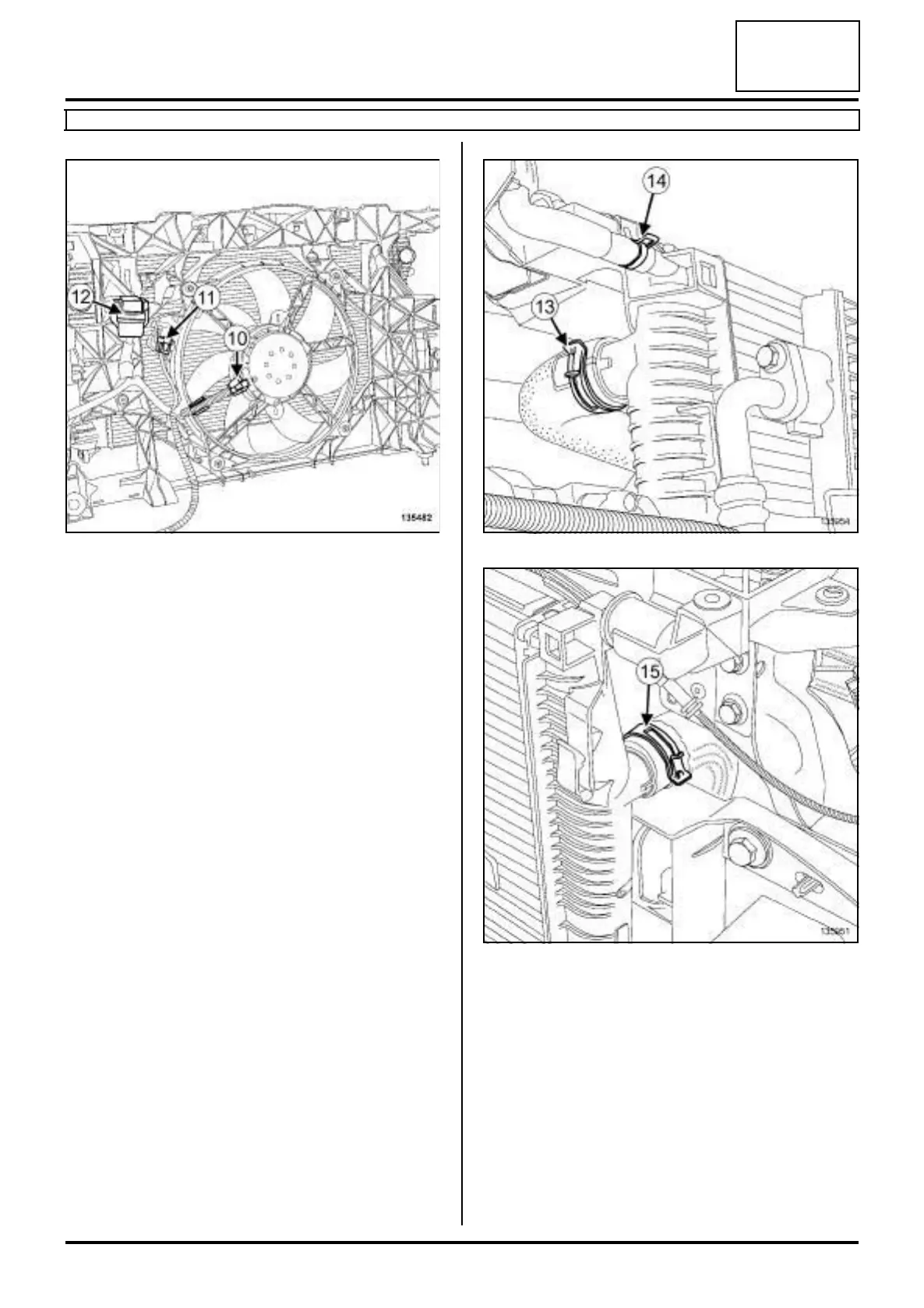

a Disconnect from the cooling fan assembly:
-the connector (10) ,
-the resistor connector (11) ,
-the relay unit (12) of the front end panel.
a Unclip the cooling fan assembly wiring.
a Move aside the cooling fan assembly wiring.
a Remove using the (Mot. 1448) :
- the top cooling hose clip from the cooling radiator,
- the expansion bottle degassing hose clip from the
cooling radiator,
- the bottom cooling hose clip from the cooling radia-
tor.
a Disconnect:
- the top cooling hose (13) from the cooling radiator,
- the expansion bottle degassing hose (14) from the
cooling radiator,
135482 135954
135951
