Renault F4R - Page 111

10A-105
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
K4M
10A
a Remove:

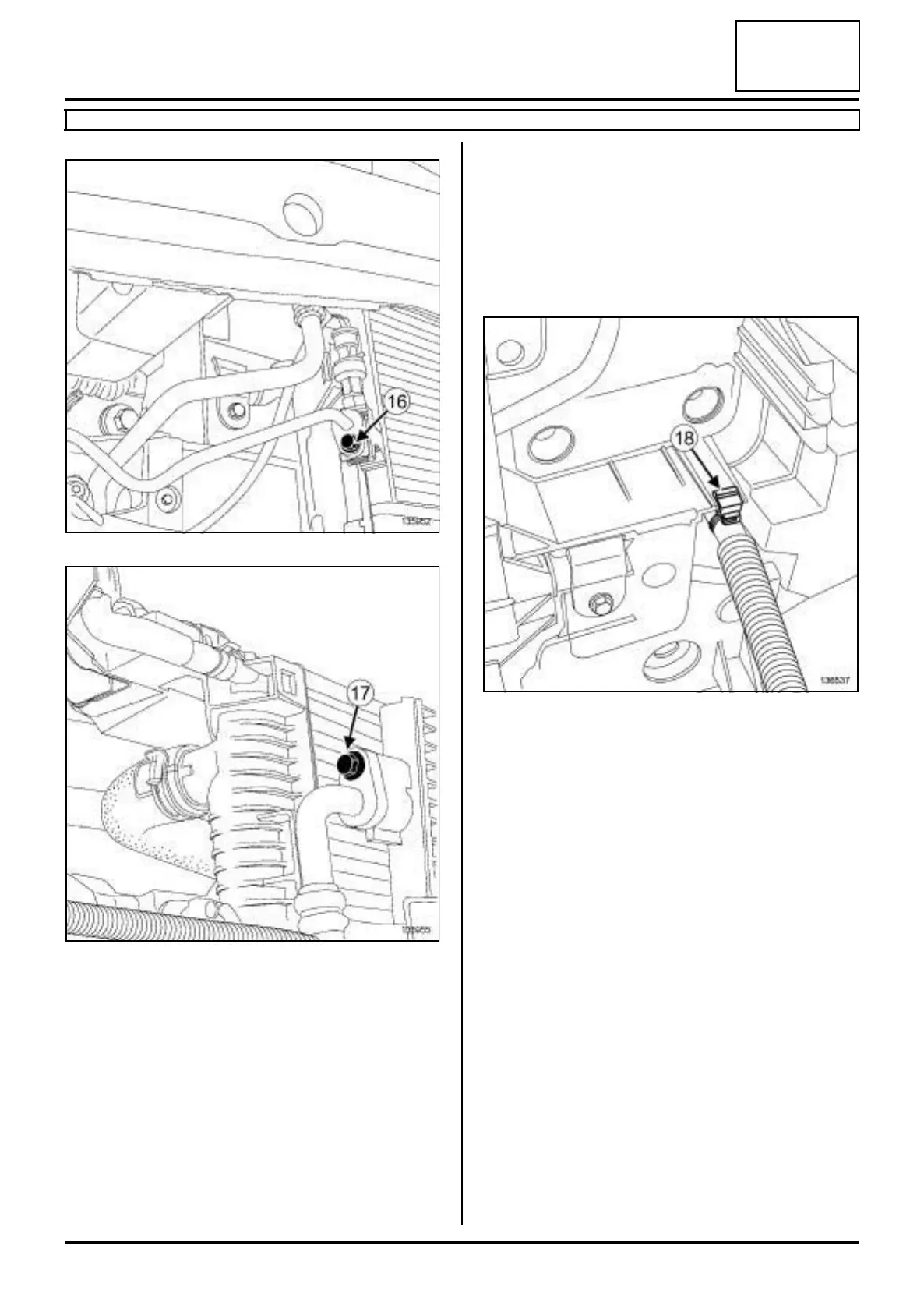

-the bolt (16) of the « condenser - expansion valve »
connecting pipe bracket,
-the bolt (17) for the « compressor - condenser »
connecting pipe bracket.
a Disconnect:
-the « condenser - expansion valve » connecting
pipe from the condenser,
-the « compressor - condenser » connecting pipe
on the condenser.
a Remove:
- the seal of the « condenser - expansion valve »
connecting pipe,
- the seal of the « compressor - condenser » con-
necting pipe.
a Insert the blanking plugs.
a Disconnect the pressostat connector from the con-
denser.
a Unclip the wiring of the right-hand headlight (18) on
the front end panel.
