10A-138
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine/gearbox assembly: Removal - Refitting
F9Q
10A

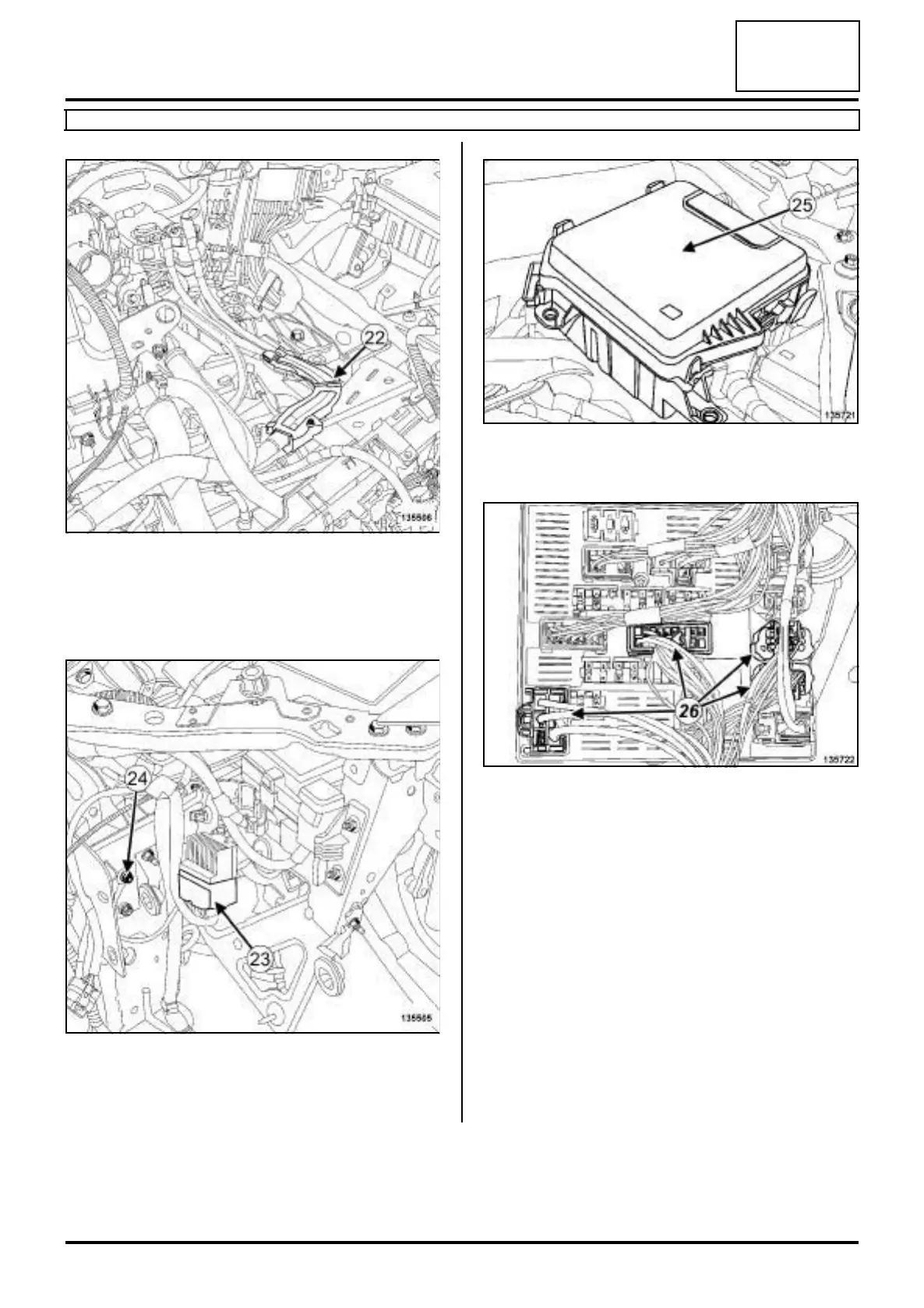

a Unclip the power wiring channel (22) from the left-
hand suspended engine mounting.
a Remove the air resonator (see 12A, Fuel mixture,
Air resonator: Removal - Refitting, page 12A-1) .
a Disconnect the connector (23) from the pre-posthea-
ting unit.
a Remove the earth cable nut (24) .
a Remove the cover (25) from the Protection and Swit-
ching Unit.
a Disconnect the connectors (26) from the Protection
and Switching Unit.
