10A-158
ENGINE AND CYLINDER BLOCK ASSEMBLY
Flywheel: Removal - Refitting
K4M
10A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

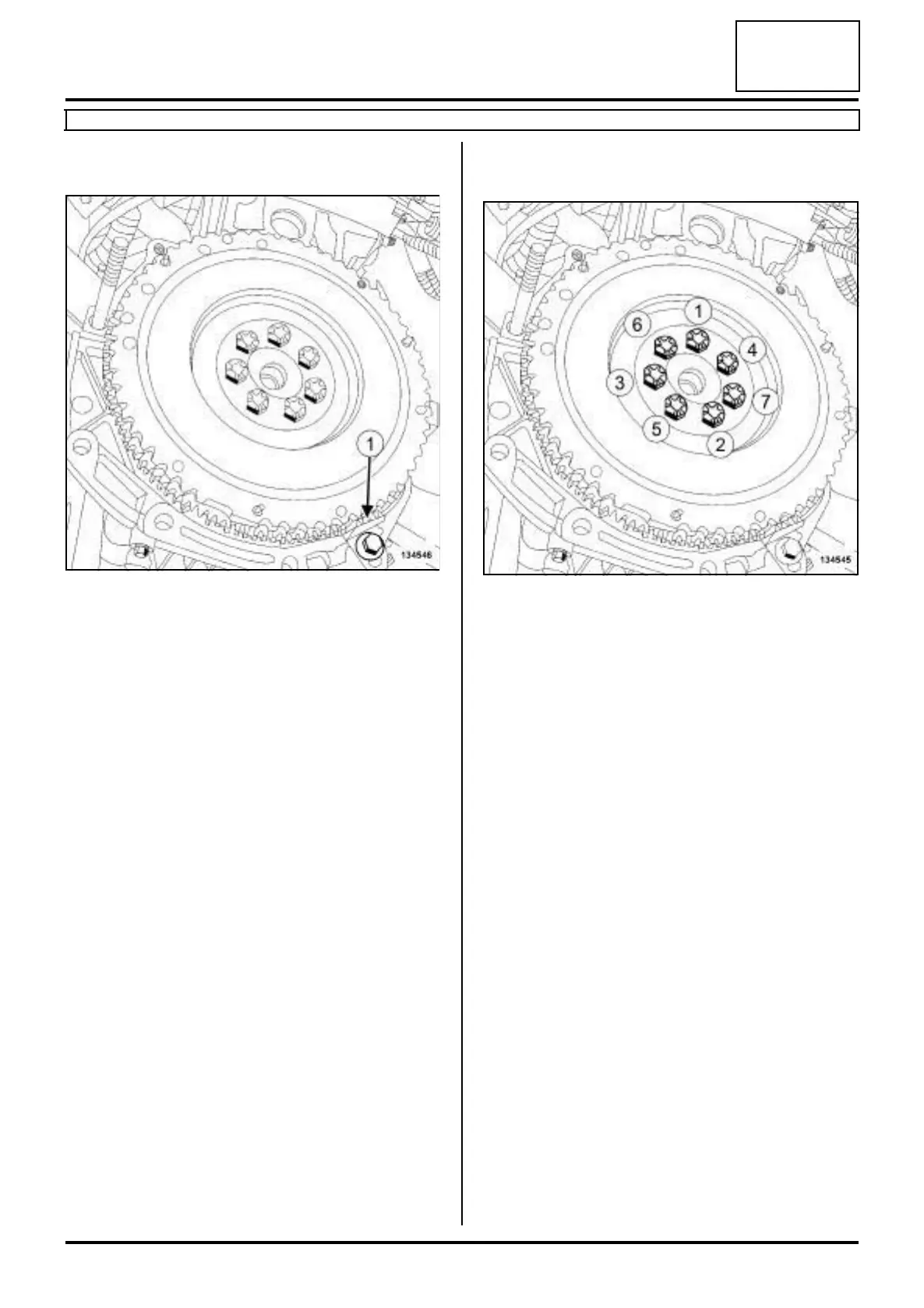

a Lock the flywheel using tool (Mot. 1677) (1) .
a Remove:
-the flywheel bolts,
-the flywheel,
-the (Mot. 1677).
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Flywheel bolts (10,
03,03,14).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the flywheel bearing face if reusing,
-the crankshaft bearing face.
a Check the condition of the flywheel and its seal.
II - REFITTING OPERATION FOR PART
CONCERNED
a Position the flywheel equipped with new bolts.
a Fit the new bolts on the flywheel without tightening
them.
a Position the (Mot. 1677).
a Tighten to torque and in order the new flywheel
bolts (25 N.m + 50˚ ±±
±±
6˚).
a Remove the (Mot. 1677).
III - FINAL OPERATION
a Refit:
- the « pressure plate - disc » assembly (see Me-
chanism / Disk: Removal - Refitting) (20A,
Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox).
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the front axle subframe (see Front axle sub-fra-
me: Removal - Refitting) (31A, Front axle compo-
nents),
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
134546
134545
