ENGINE AND CYLINDER BLOCK ASSEMBLY
Flywheel: Removal - Refitting
K9K
10A
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the flywheel,
-new flywheel bolts.
-the (Mot. 582).
a Tighten to torque and in order the flywheel bolts
(20 N.m + 36˚ ±±
±±
6˚).
a Tighten to torque and in order the flywheel bolts
(50 N.m).
III - FINAL OPERATION
a Refit:
- the clutch disc and pressure plate (see Mecha-
nism / Disk: Removal - Refitting) (20A, Clutch),
-the hydraulic clutch release bearing (see Clutch
thrust bearing: Removal - Refitting) (20A,
Clutch),
- the manual gearbox (see Manual gearbox: Remo-
val - Refitting) (21A, Manual gearbox).
- the left-hand suspended engine mounting (see
19D, Engine mounting, Left-hand suspended
engine mounting: Removal - Refitting, page
19D-1) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),

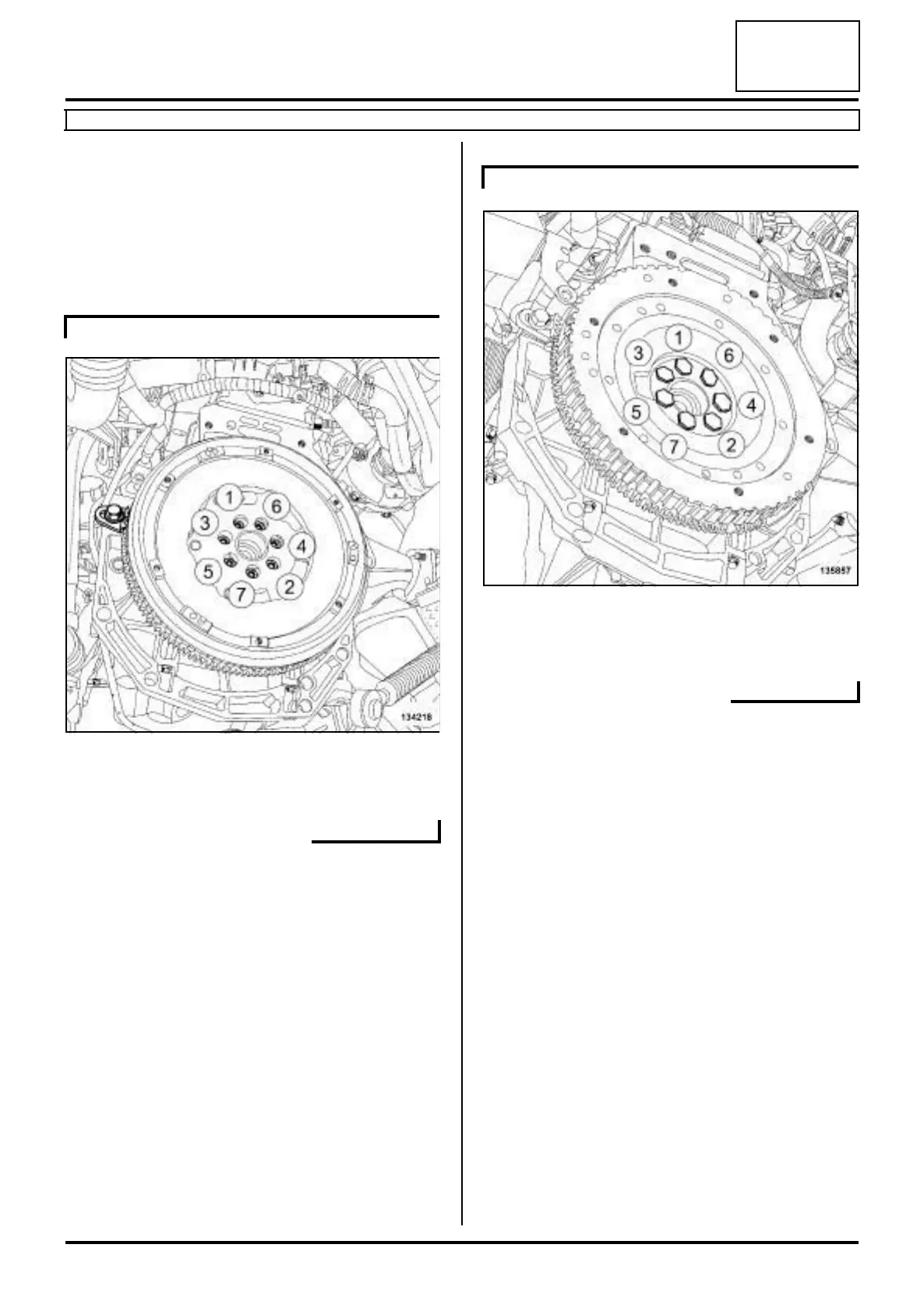

K9K, and TL4
