11A-7
TOP AND FRONT OF ENGINE
Accessories belt: Removal - Refitting
K4M
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Turn the accessories belt auto tensioner clockwise
using a 16 mm spanner.
a Lock the tensioning roller using a 6 mm Allen key.
a Remove the accessories belt.
a Remove:
- the tensioning roller bolt,
- the tensioning roller.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Accessories belt
(10,10,01,03).
a parts always to be replaced: Accessories belt
tensioning roller (10,10,01,04).
a Use a brush to remove any deposits from the
crankshaft pulley V-grooves.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit a new tensioning roller.
Tightening torquesm
tensioning roller bolt 40 N.m
IMPORTANT
Wear protective gloves during the operation.
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.

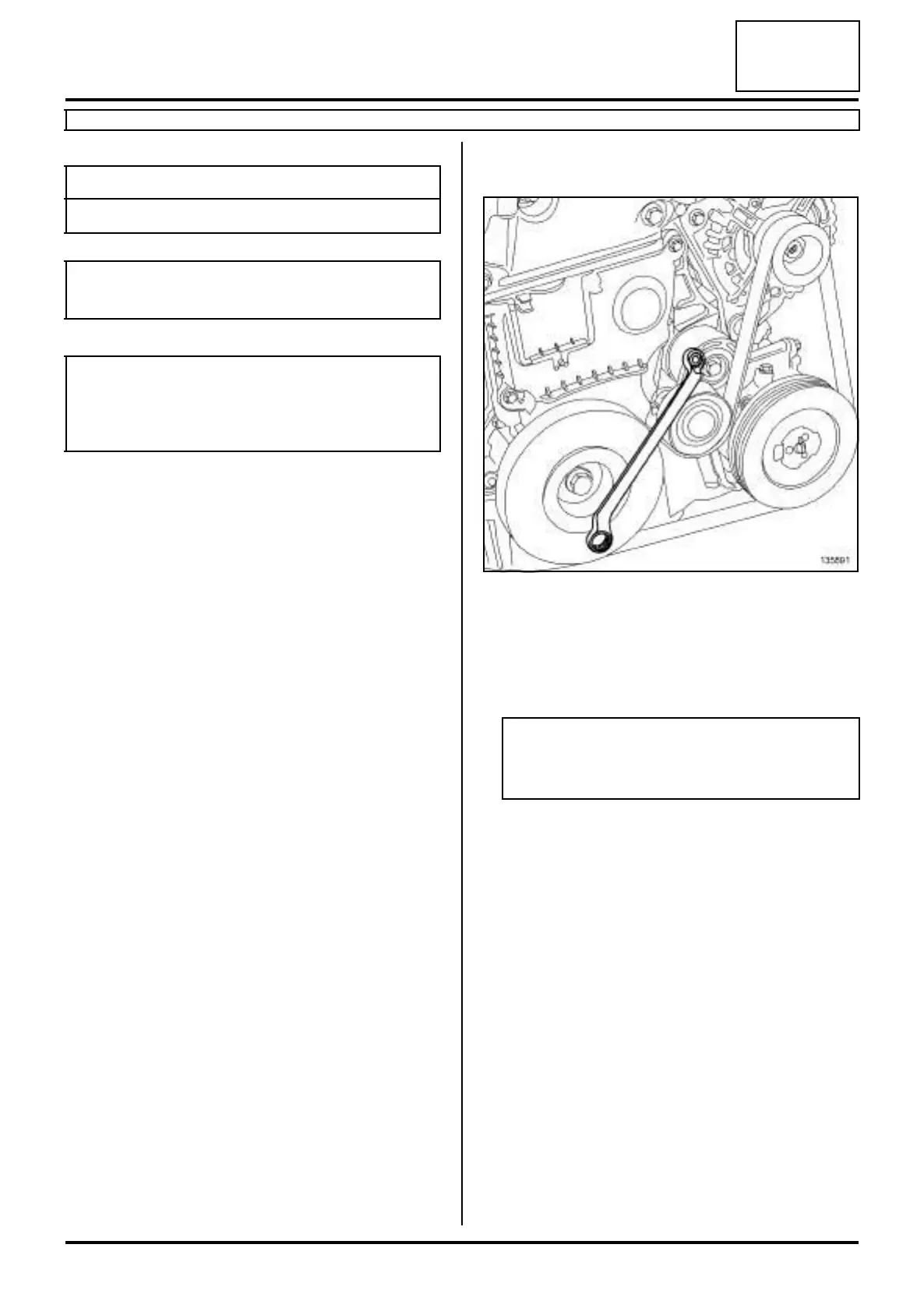

135891
Note:
Before removing the tensioning roller, always
retrieve the 6 mm Allen key.
