11A-25
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

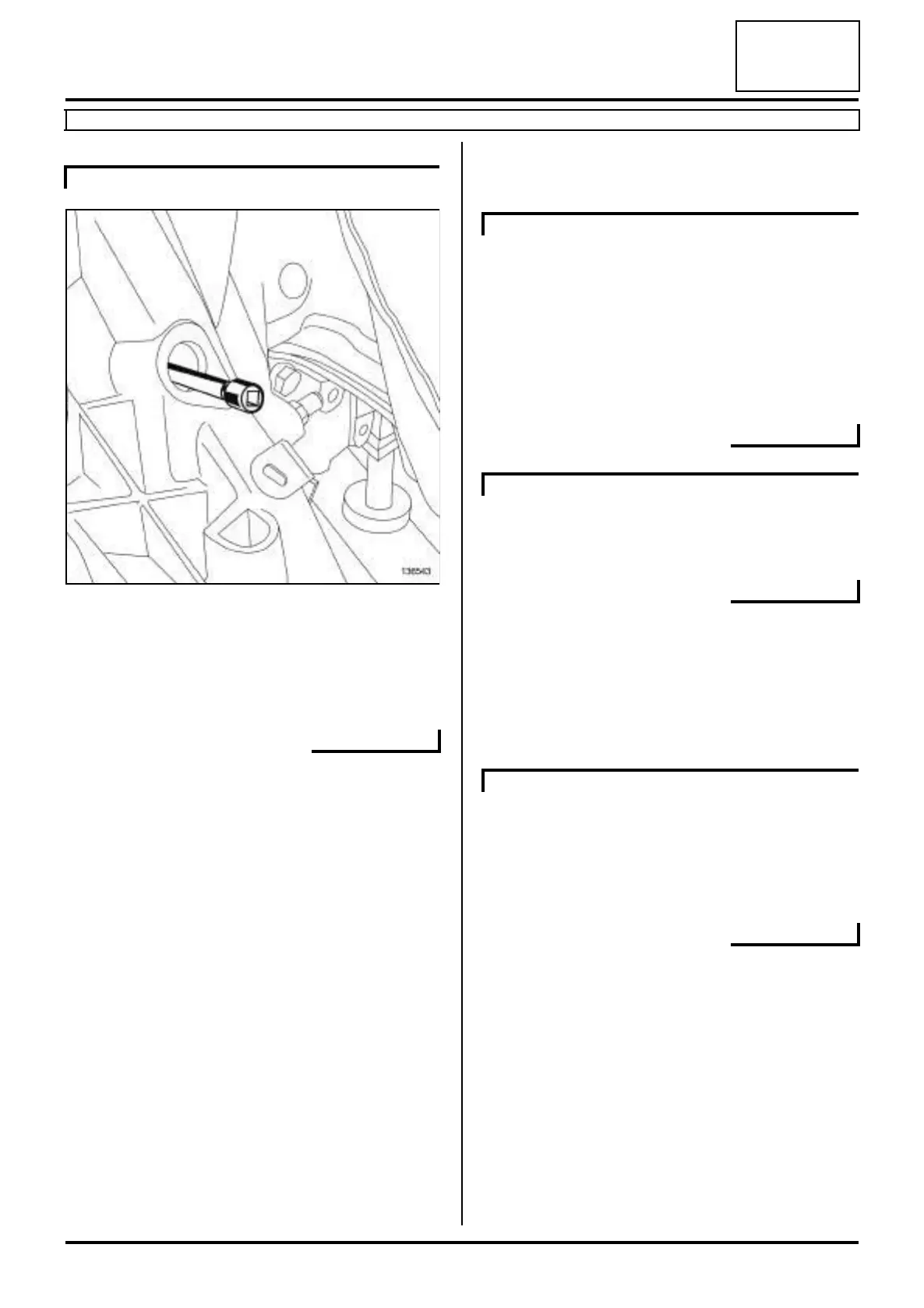

a If the crankshaft is not pressing against the TDC set-
ting pin, bring the crankshaft back by turning the
flywheel using a ratchet extension piece or an 8 mm
Allen key through the crankshaft position sensor ho-
le.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the accessories crankshaft pulley with a new
bolt.
a Torque tighten the new bolt of the crankshaft ac-
cessories pulley (40 N.m + 145˚ ±±
±±
15˚).
III - FINAL OPERATION
a Remove:
-the TDC setting pin (Mot. 1489),
-the lifting eye bolt from the timing tool (Mot. 1496)
fitted with the (Mot. 1750),
-the timing tool (Mot. 1496) fitted with the (Mot.
1750).
a Refit:
-the inlet camshaft plug using the (Mot. 1487),
-the exhaust camshaft plug using the (Mot. 1488),
-the lifting eye.
a Torque tighten the lifting eye bolts (10 N.m).
a Fit the engine wiring on the lifting eye.
a Clip the engine wiring connector on the lifting eye.
a Refit:
- the engine wiring retaining bolt on the lifting eye,
- the dipstick guide on the lifting eye.
a Torque tighten the dipstick guide tube bolt (10
N.m).
a Refit the engine wiring nut on the lifting eye.
a Clip the engine wiring connector onto the lifting eye.
a Place a drop of SILICONE ADHESIVE SEALANT
(see Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products) on the
thread of the TDC setting pin plug.
a Refit the TDC setting pin plug.
a Torque tighten the TDC pin plug (25 N.m).
a Fit the crankshaft position sensor.
a Refit the bolt on the crankshaft position sensor.
a Torque tighten the crankshaft position sensor
bolt (10 N.m).
a Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the engine undertray,
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
K4M, and 858 or 866
136543
K4M, and 848
K4M, and 858 or 866
K4M, and 858 or 866
