11A-24
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

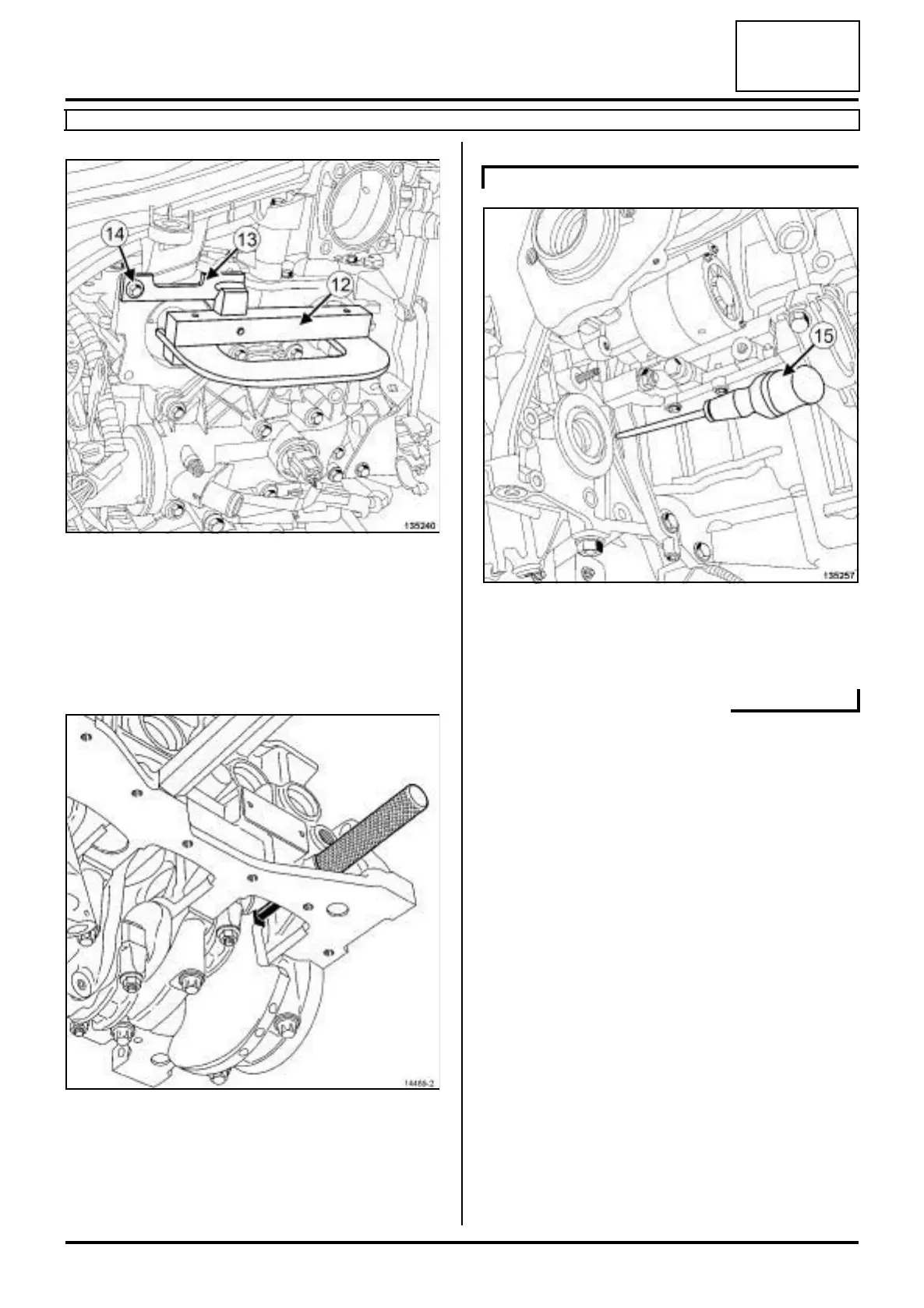

a Fit:
-the timing tool (Mot. 1496) (12) fitted with the (Mot.
1750) (13) ,
-a lifting eye bolt (14) to secure the timing tool (Mot.
1496) fitted with the (Mot. 1750).
a Screw in the TDC setting pin (Mot. 1489).
a Check that the crankshaft is pressing against the
TDC setting pin.
a The crankshaft groove must be upwards.
a If the crankshaft is not pressing against the TDC set-
ting pin, bring the crankshaft back by turning the
flywheel using a screwdriver (15) .
135240
14489-2
K4M, and 848
135257
