11A-23
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

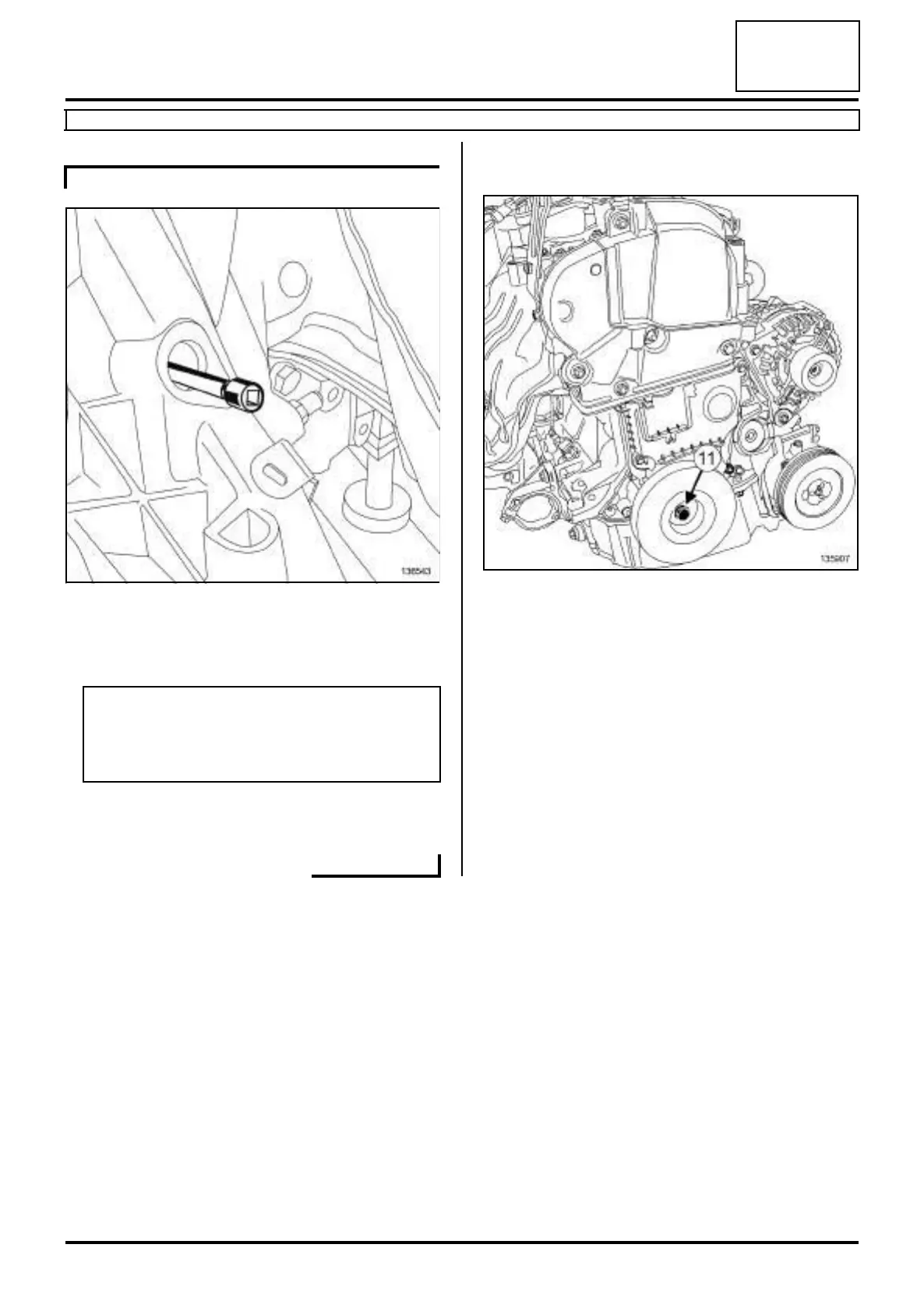

a Position an 8mm male offset Allen key or a ratchet
extension piece in the crankshaft position sensor ho-
le.
a Turn the engine slightly and smoothly to position the
offset key in the groove of a flywheel target tooth.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the crankshaft accessories pulley bolt (11) ,
- the crankshaft accessories pulley.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft acces-
sories pulley bolts (10,10,01,11).
.
K4M, and 858 or 866
136543
WARNING
Failure to observe the following procedure may
damage the flywheel target and therefore prevent
the engine from starting.
135907
