TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

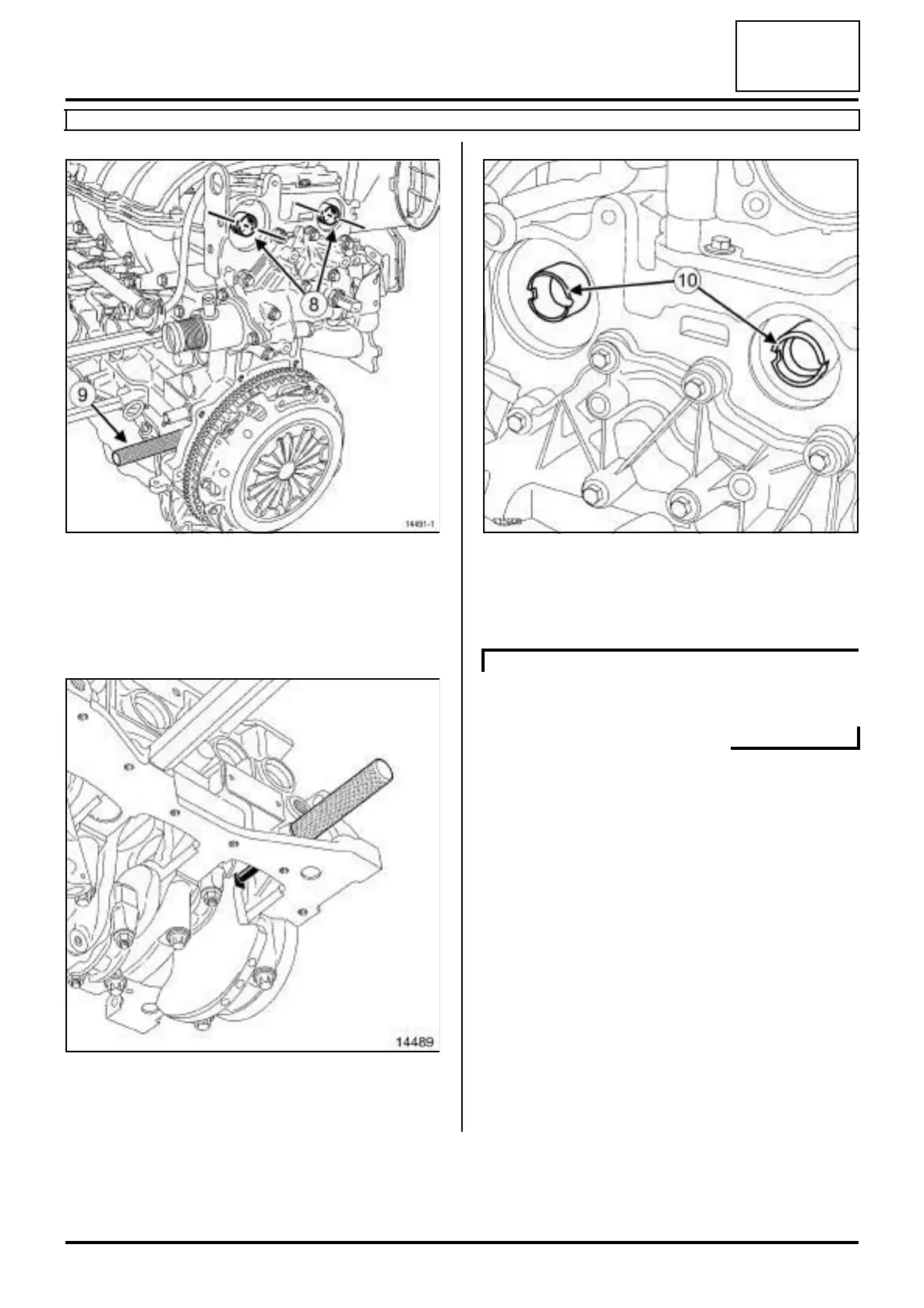

a Position the camshaft grooves (8) almost horizontal-
ly and offset towards the bottom turning the cranks-
haft in the operating direction (clockwise at timing
end).
a Screw in the TDC setting pin (Mot. 1489) (9) .
a Turn the crankshaft in its operating direction (cloc-
kwise at timing end), until the crankshaft presses
against the TDC setting pin (Mot. 1489).
a The camshaft grooves (10) must be horizontal and
offset downwards.
a Remove the TDC setting pin (Mot. 1489).
a Lock the flywheel using a screwdriver.
14491-1
14489
135905
K4M, and 848
