11A-21
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K4M
11A

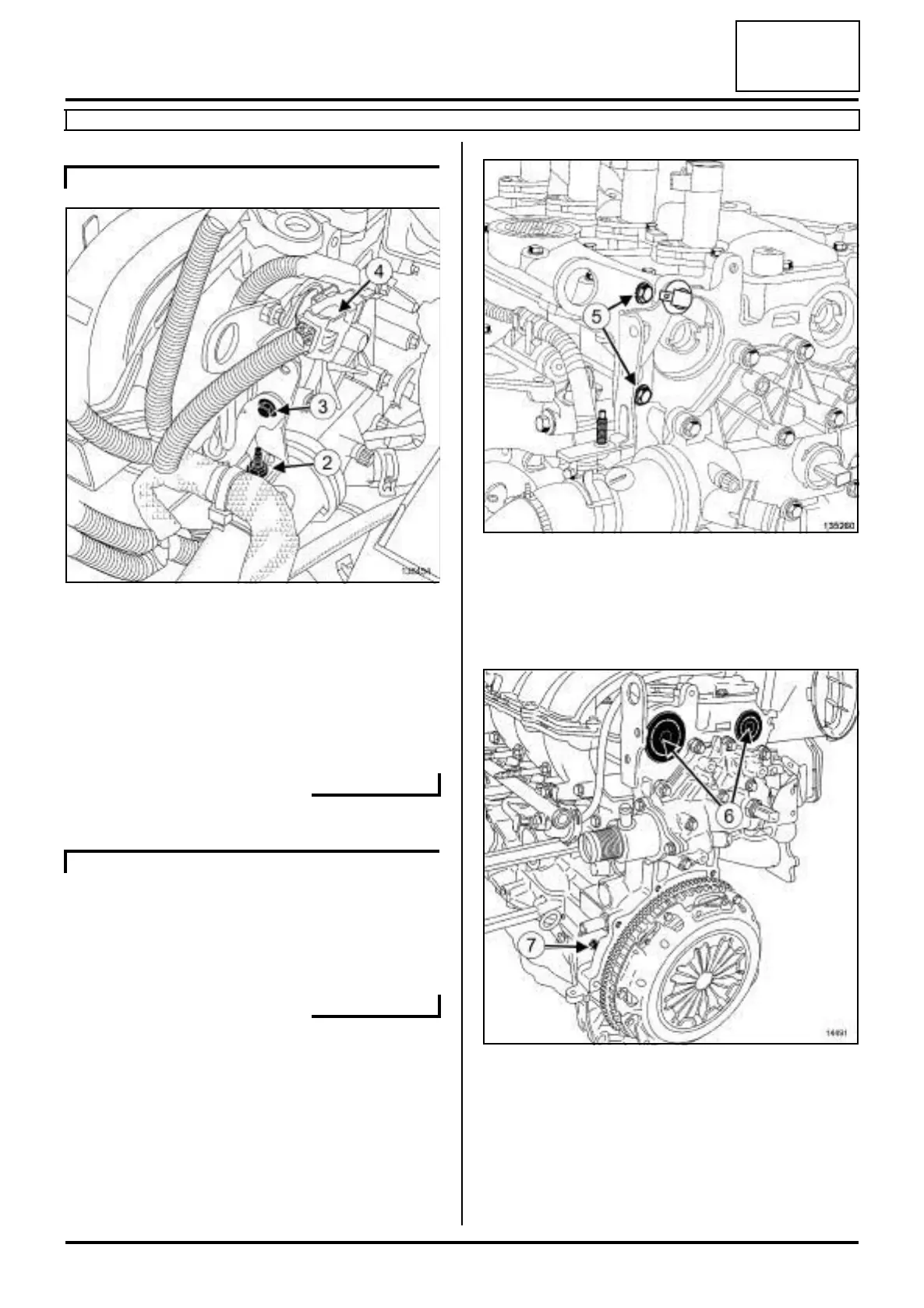

a Remove:
-the nut (2) securing the engine wiring on the lifting
eye,
-the dipstick guide bolt (3) from the lifting eye.
a Unclip the engine wiring connector (4) from the lifting
eye.
a Move aside the engine wiring.
a Remove the nut securing the engine wiring on the lif-
ting eye.
a Unclip the engine wiring connector from the lifting
eye.
a Remove:
- the lifting eye bolts (5) ,
- the lifting eye.
a Pierce the centre of the plugs (6) at the camshaft
ends with a screwdriver.
a Remove:
- the plugs from the camshaft ends with a screwdri-
ver,
- the TDC setting pin plug (7) .
K4M, and 848
136454
K4M, and 858 or 866
135260
14491
