11A-27
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
F9Q
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) .

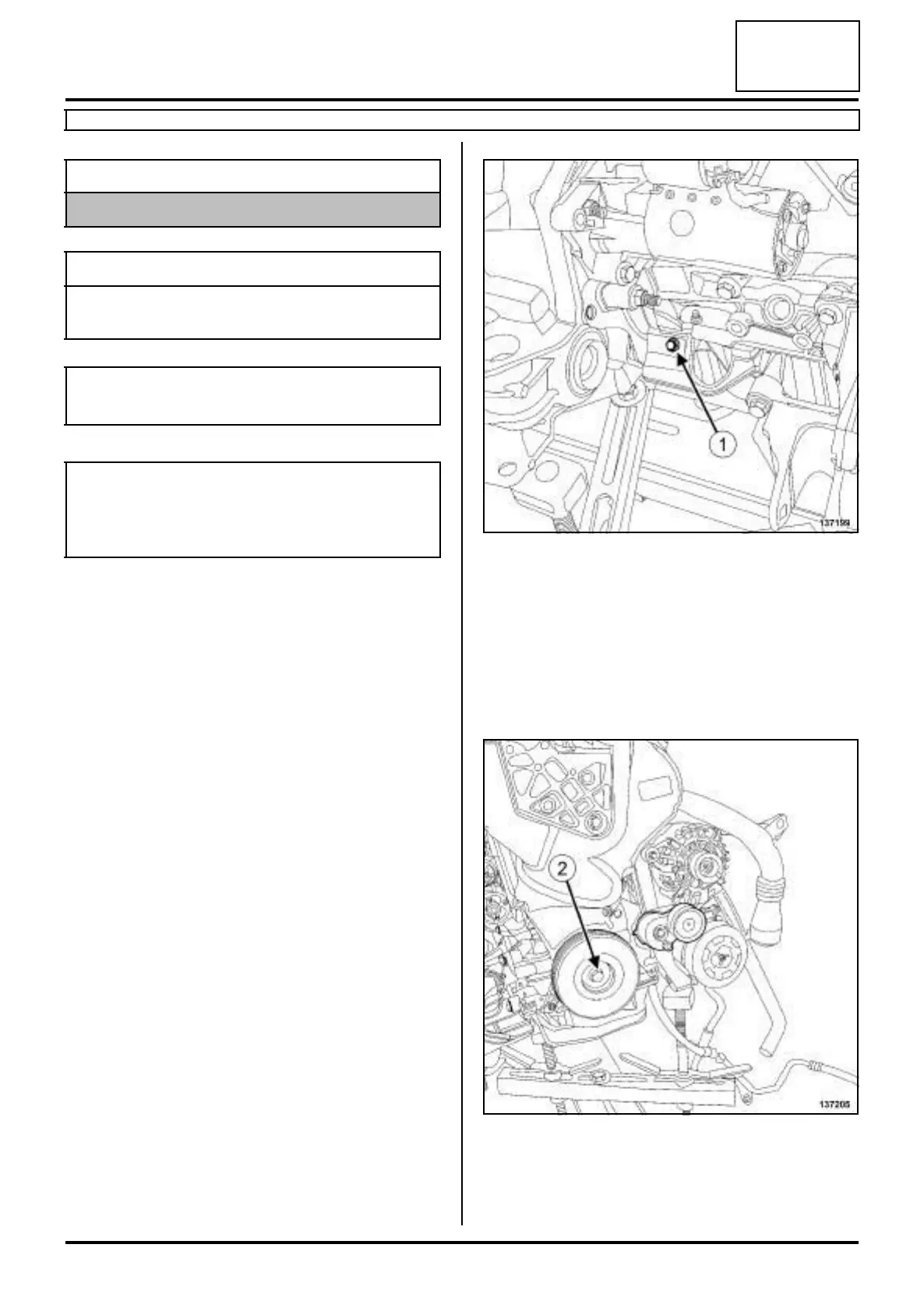

a Remove the bolt (1) from the protective plate.
a Remove the protective plate.
a Lock the flywheel using a 30 torx screwdriver.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the crankshaft accessories pulley bolt (2) ,
- the crankshaft accessories pulley.
Essential equipment
brush with non abrasive bristles
Tightening torquesm
crankshaft accessories
pulley bolt
40 N.m + 110˚
+/- 10˚
IMPORTANT
Wear protective gloves during the operation.
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
