11A-35
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

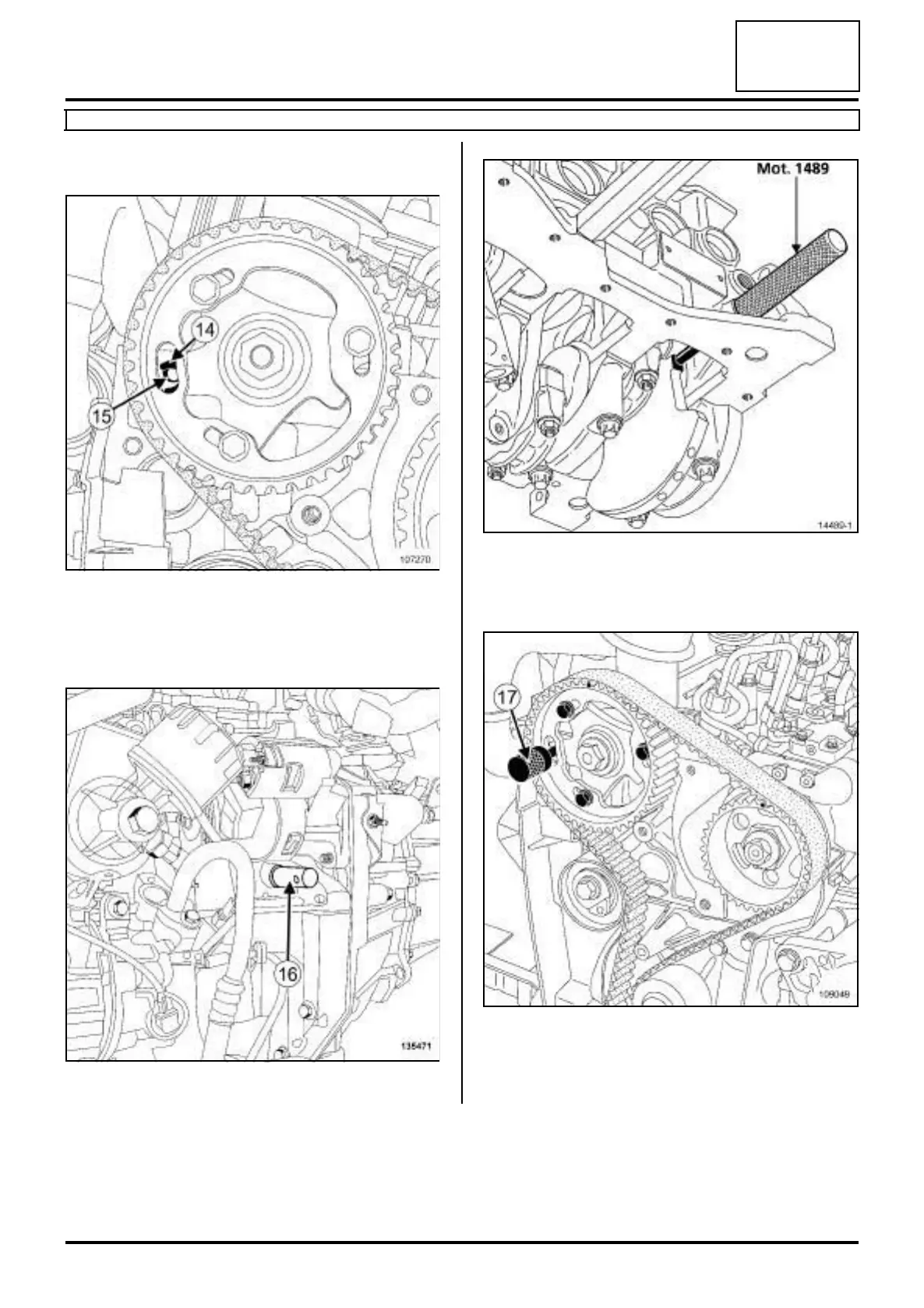

a Turn the crankshaft clockwise (timing end) using the
old crankshaft accessories pulley bolt and its spacer
to position the hole (14) of the camshaft pulley hub
almost opposite the hole (15) in the cylinder head.
a Screw tool (Mot. 1489) (16) into the cylinder block.
a Turn the crankshaft clockwise (timing end) smoothly
until the crankshaft comes in contact with the (Mot.
1489).
a Insert the tool (Mot. 1430) (17) in the holes of the
camshaft pulley hub and the hole of the cylinder
head.
107270
135471
14489-1
109049
