TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A

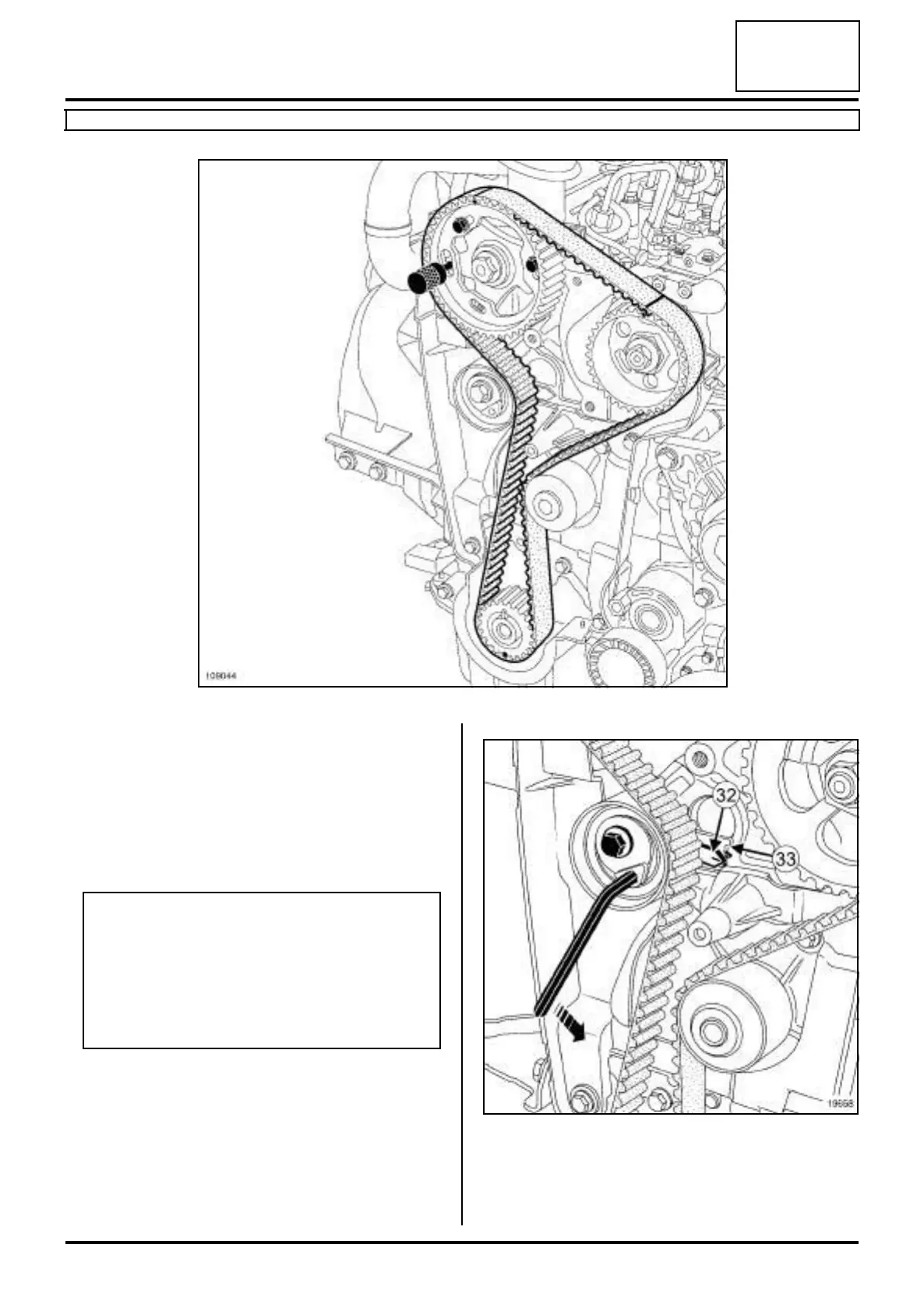

a Fit the new timing belt starting with the crankshaft
sprocket.
a Align the timing belt marks with the marks:
-of the crankshaft timing sprocket,
-of the camshaft pulley,
-of the high pressure pump pulley.
a Bring the timing belt tensioning roller adjustable in-
dex (32) opposite the lug (33) using a 6 mm Allen
key, turning it anti-clockwise.
a Tighten the timing belt tensioning roller bolt.
109044
Note:
There should be 19 timing belt tooth grooves
between the marks on the camshaft pulley and
the high pressure pump pulley and 51 timing belt
tooth grooves between the marks on the cranks-
haft timing sprocket and the high pressure pump
pulley.
