11A-38
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A

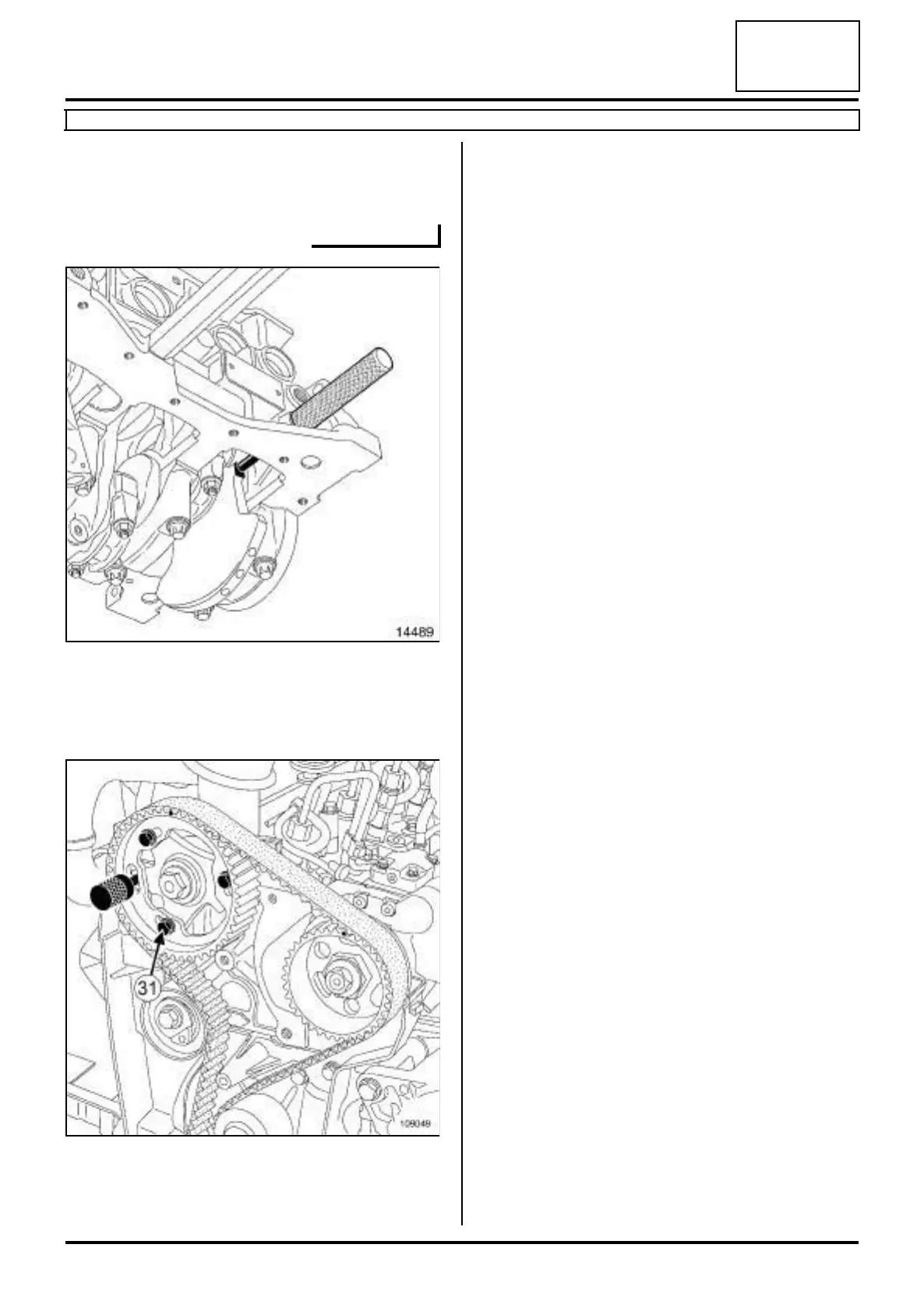

-the crankshaft is resting on the tool (Mot. 1489)
(the cotter (30) of the crankshaft timing sprocket
upwards).
a Check that the crankshaft is resting on the tool (Mot.
1489) while turning the crankshaft clockwise using
the old crankshaft accessories pulley bolt and its
spacer.
a Remove the bolt (31) from the camshaft pulley hub.
a Loosen the other bolts of the camshaft pulley hub by
one turn.
14489
109049
