11A-37
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A
-the crankshaft is resting on the tool (Mot. 1489)
(the cotter (24) of the crankshaft timing sprocket
must be vertical and upwards).

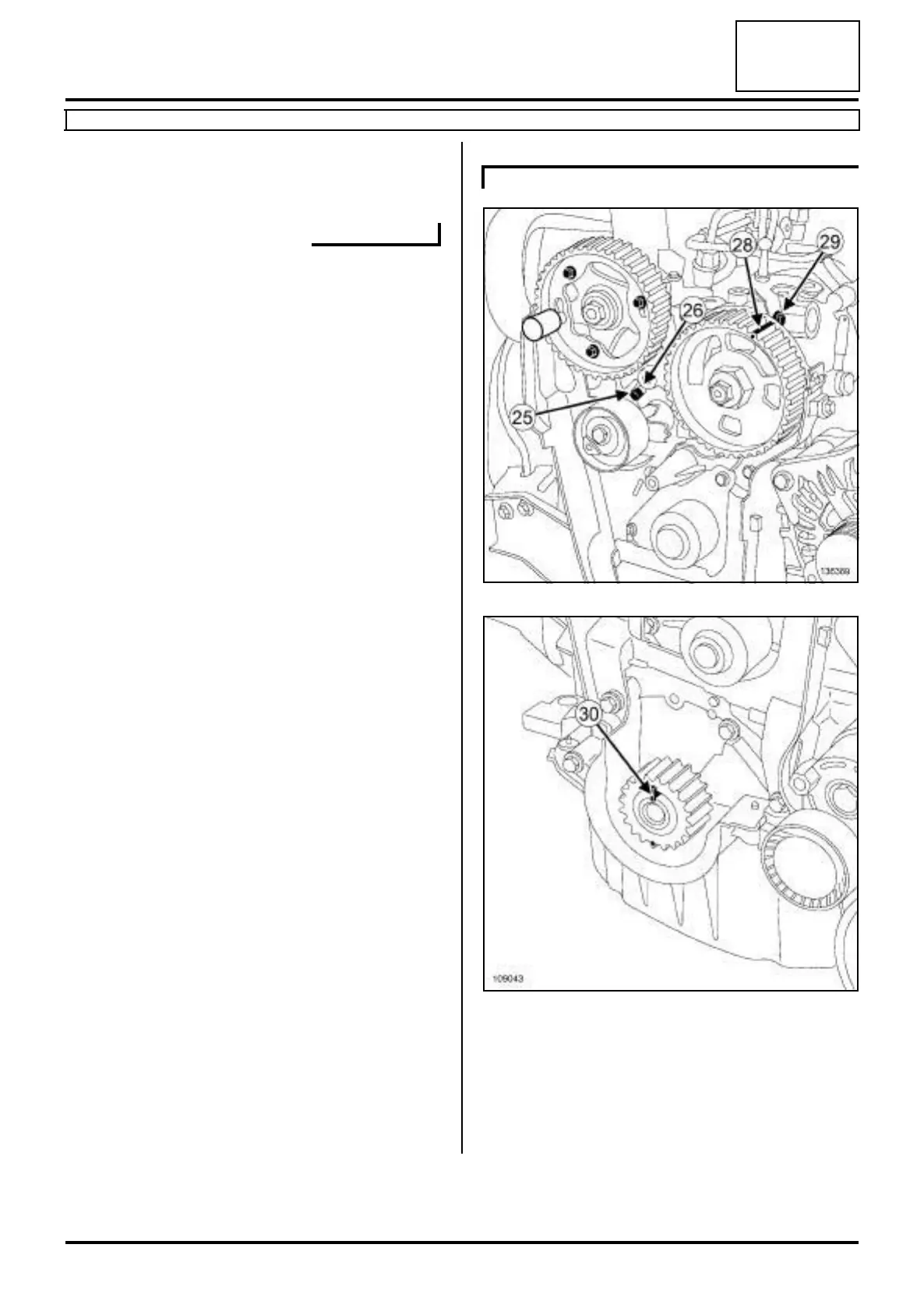

a Refit the new timing belt tensioning roller.
a Fit the timing belt tensioning roller lug (25) in the cy-
linder head groove (26) .
a Check that:
- Check that the mark (28) on the high pressure
pump is opposite the bolt head (29) .
K9K, and 830 or 834
136389
109043
