Renault F4R - Page 219

11A-45
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K
11A
a Refit the camshaft position sensor (see 13B, Diesel
injection, Camshaft position sensor: Removal -
Refitting, page 13B-19) .
a Refit:
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing).
a Refit the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-33) .
a Remove the old crankshaft accessories pulley bolt
with its spacer.
a Refit:
-the crankshaft accessories pulley,
-a new crankshaft accessories pulley bolt.

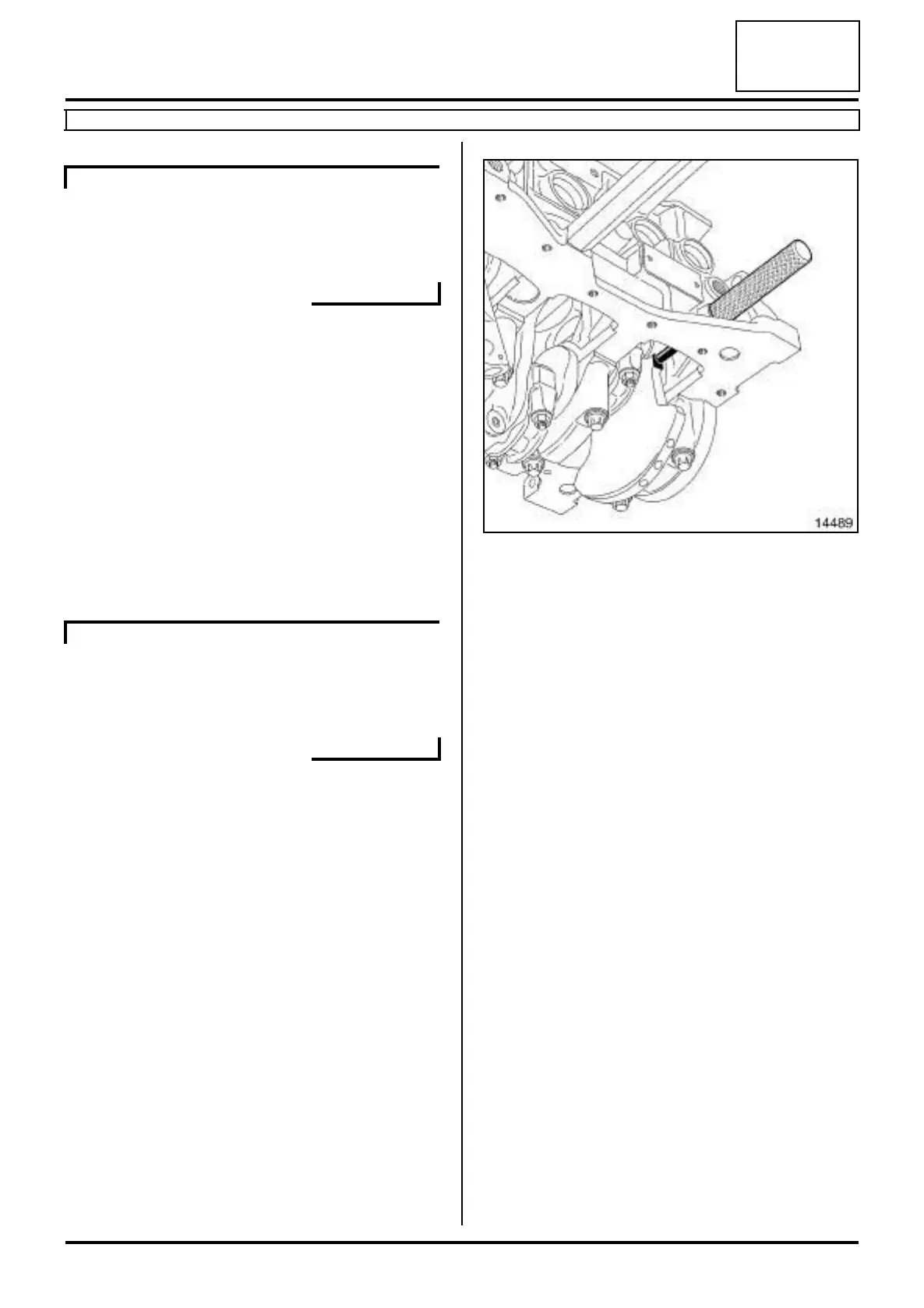

a Turn the crankshaft clockwise (timing end) smoothly
using the bolt of the crankshaft accessories pulley,
until the crankshaft presses against the tool (Mot.
1489).
a Torque tighten a new crankshaft accessories pul-
ley bolt (120 N.m + 95 ±±
±±
15˚).
a Remove the tool (Mot. 1489).
a Apply a drop of SILICONE ADHESIVE SEALANT
(see Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products) to the thread
of the TDC setting pin plug.
a Torque tighten the TDC setting pin plug (25 N.m).
a Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the engine undertray,
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the engine cover.
a Connect the battery (see Battery : Removal - Refit-
ting) (80A, Battery).
K9K, and 830
K9K, and 830
14489
