11A-46
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F9Q
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the engine cover,
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the engine undertray bolts,
-the engine undertray,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) .

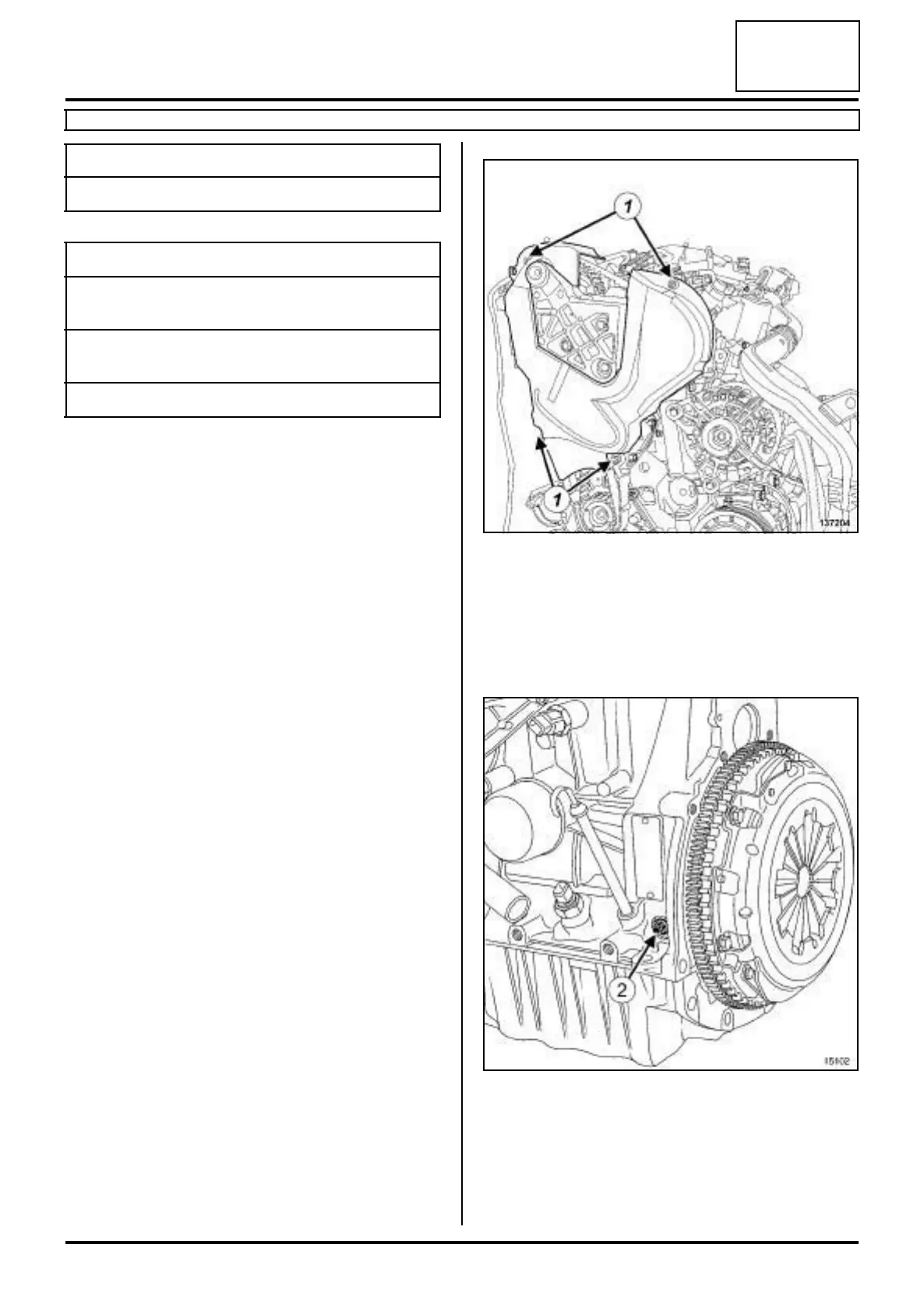

a Remove:
- the timing cover bolts (1) ,
- the timing cover.
Adjusting the timing
a Remove the TDC setting pin plug (2) .
a Fit the (Mot. 1054) without inserting it fully.
Essential special tooling
Mot. 1054 TDC setting pin.
Tightening torquesm
timing tensioning roller
bolts
10 N.m
timing tensioning roller
nut
25 N.m
TDC pin plug 25 N.m
137204
15102
