11A-51
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A

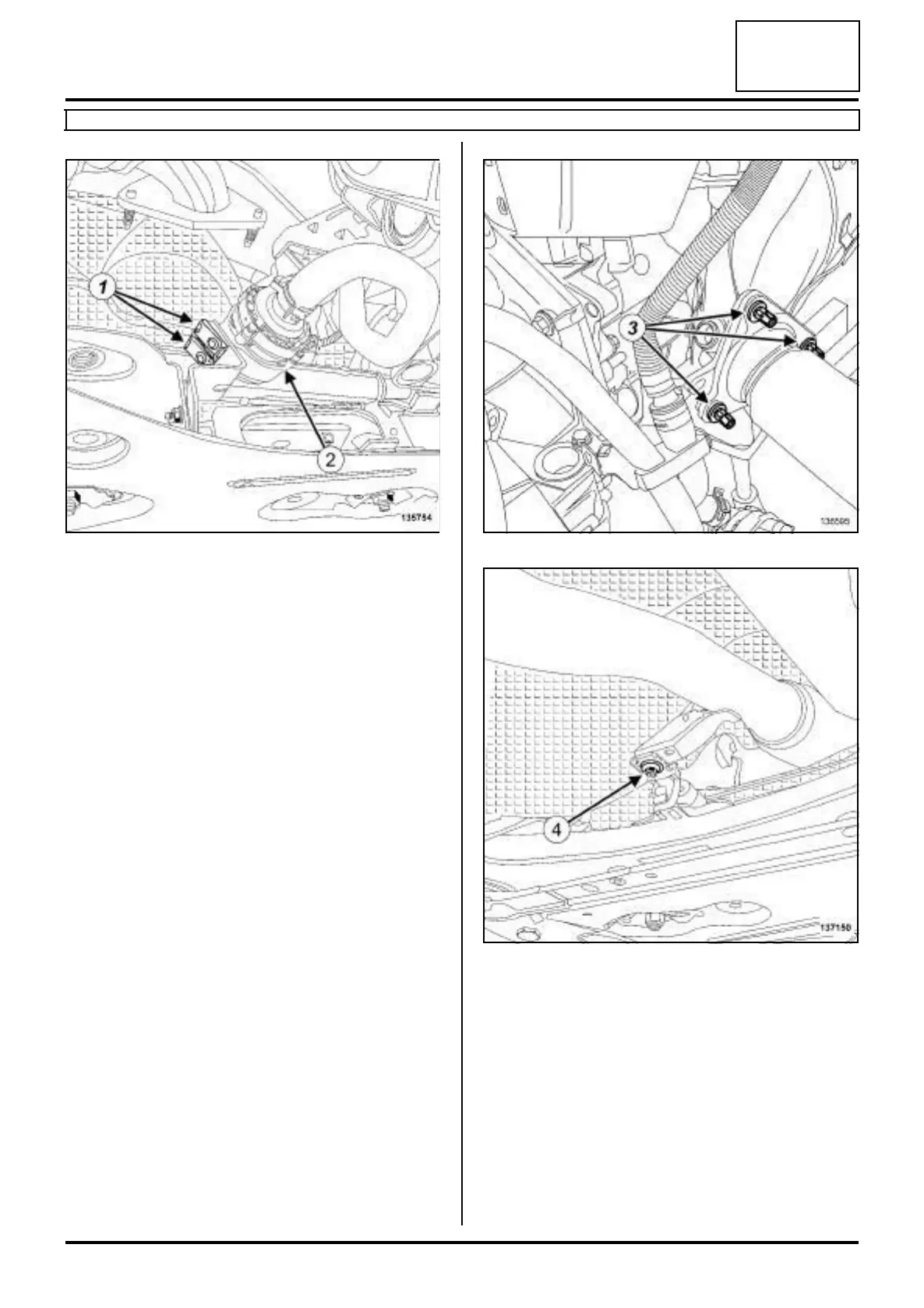

a Remove the clips (1) from the electric coolant pump
(2) .
a Move aside the electric coolant pump.
a Remove:
- the nuts (3) from the exhaust connecting hose,
-the rubber mounting bush retaining bolt (4) from
the exhaust hose,
- the connecting hose seal.
a Move aside the connecting hose.
a Remove:
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
