TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment).
a Disconnect:

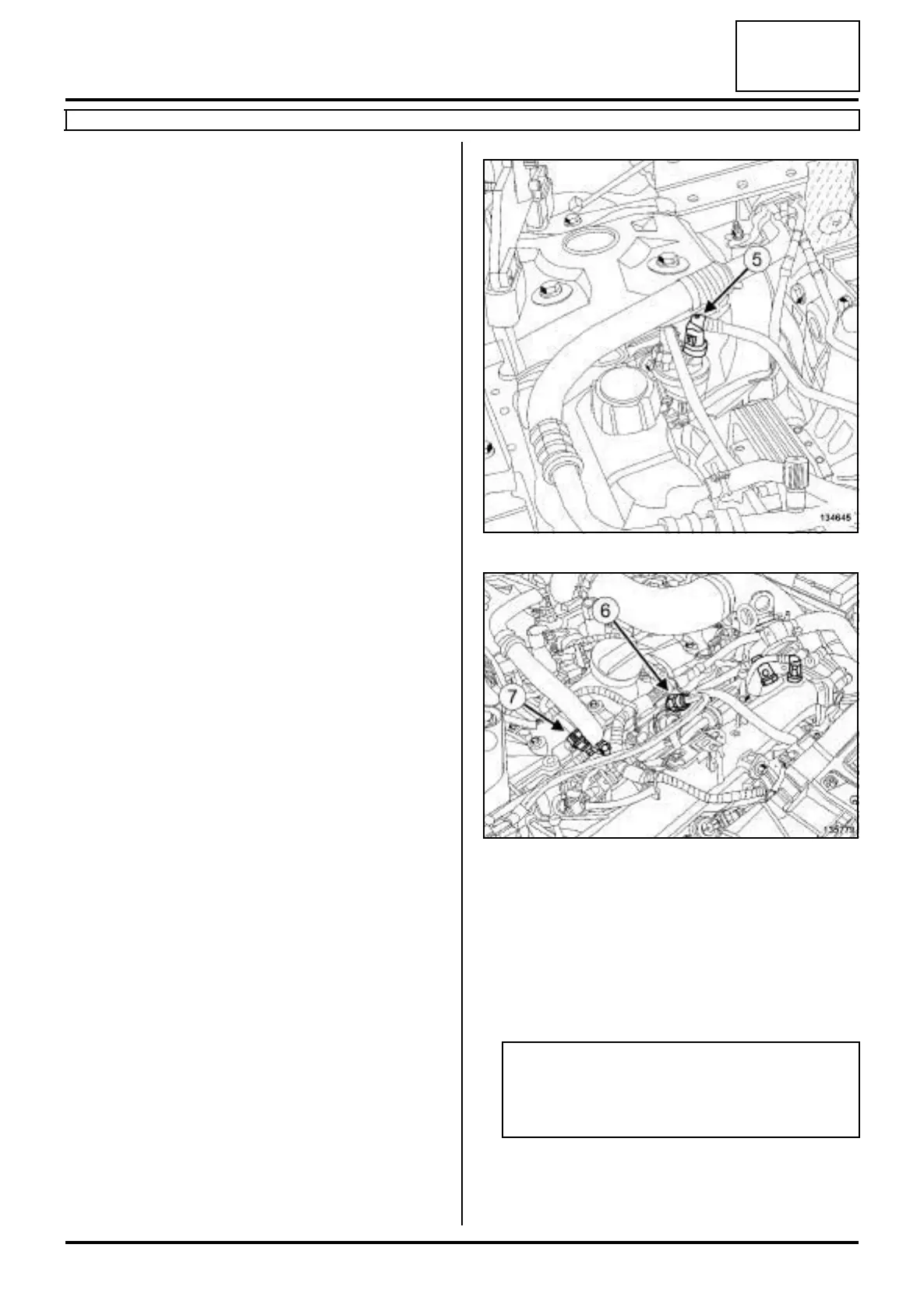

- the pipe (5) on the petrol vapour rebreathing sole-
noid valve,
- the fuel supply pipe (6) on the injector rail,
- the petrol vapour rebreathing pipe at (7) .
a Insert the blanking plugs.
a Unclip the pipes on the right-hand suspended engi-
ne mounting cover.
134645
135779
WARNING
To prevent impurities from entering the circuit,
place protective plugs on all fuel circuit compo-
nents exposed to the open air.
