11A-53
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A

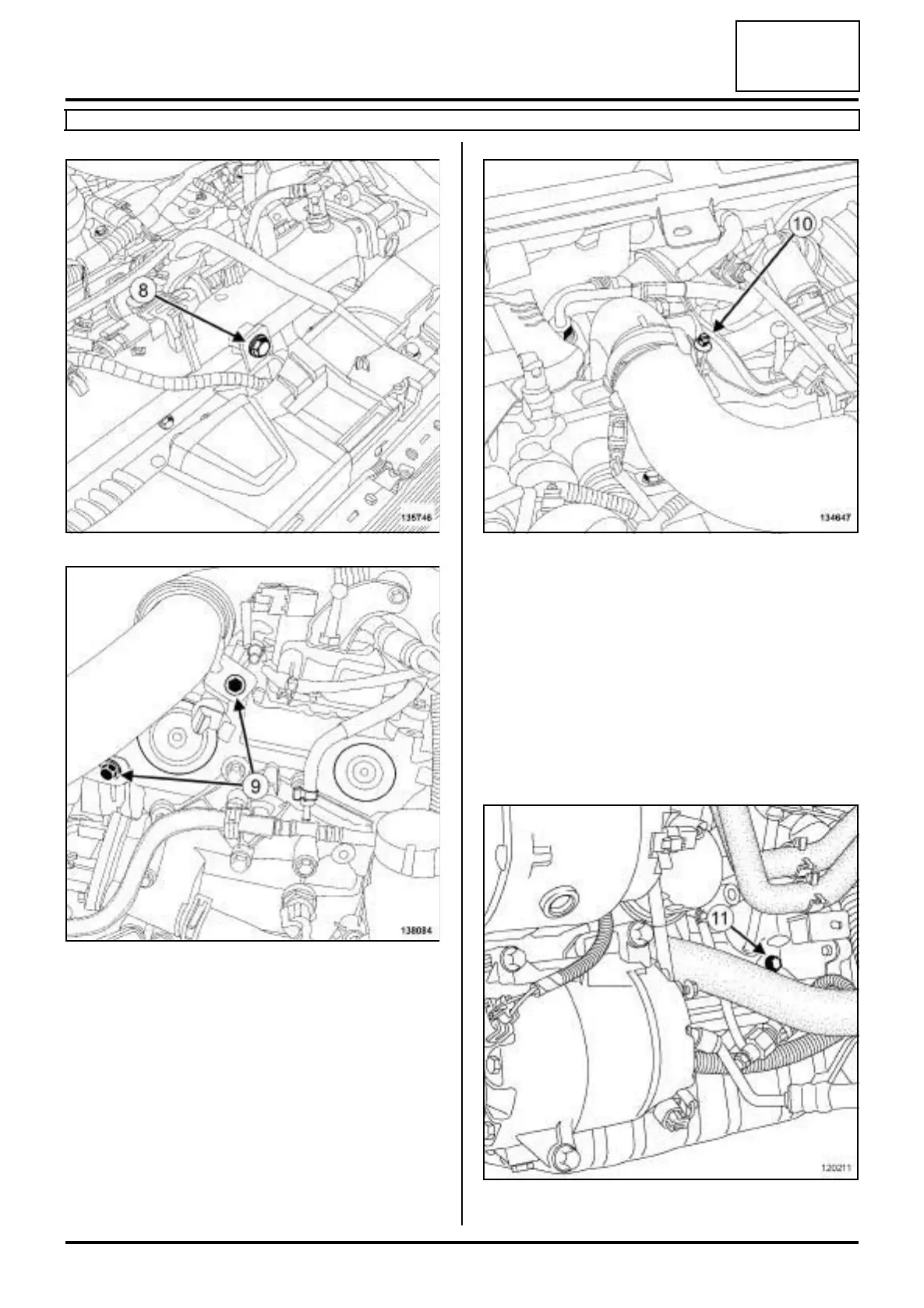

a Remove:
- the bolt (8) from the air pipe on the intake distribu-
tor,
- the retaining bracket bolts (9) on the turbocharger
air outlet pipe.
a Loosen the clip (10) on the intercooler outlet air pipe.
a Disconnect the turbocharger air outlet pipe.
a Move aside the turbocharger air outlet pipe.
a Remove the plug (11) from the TDC setting pin.
135746
138084
134647
120211
