11A-56
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A

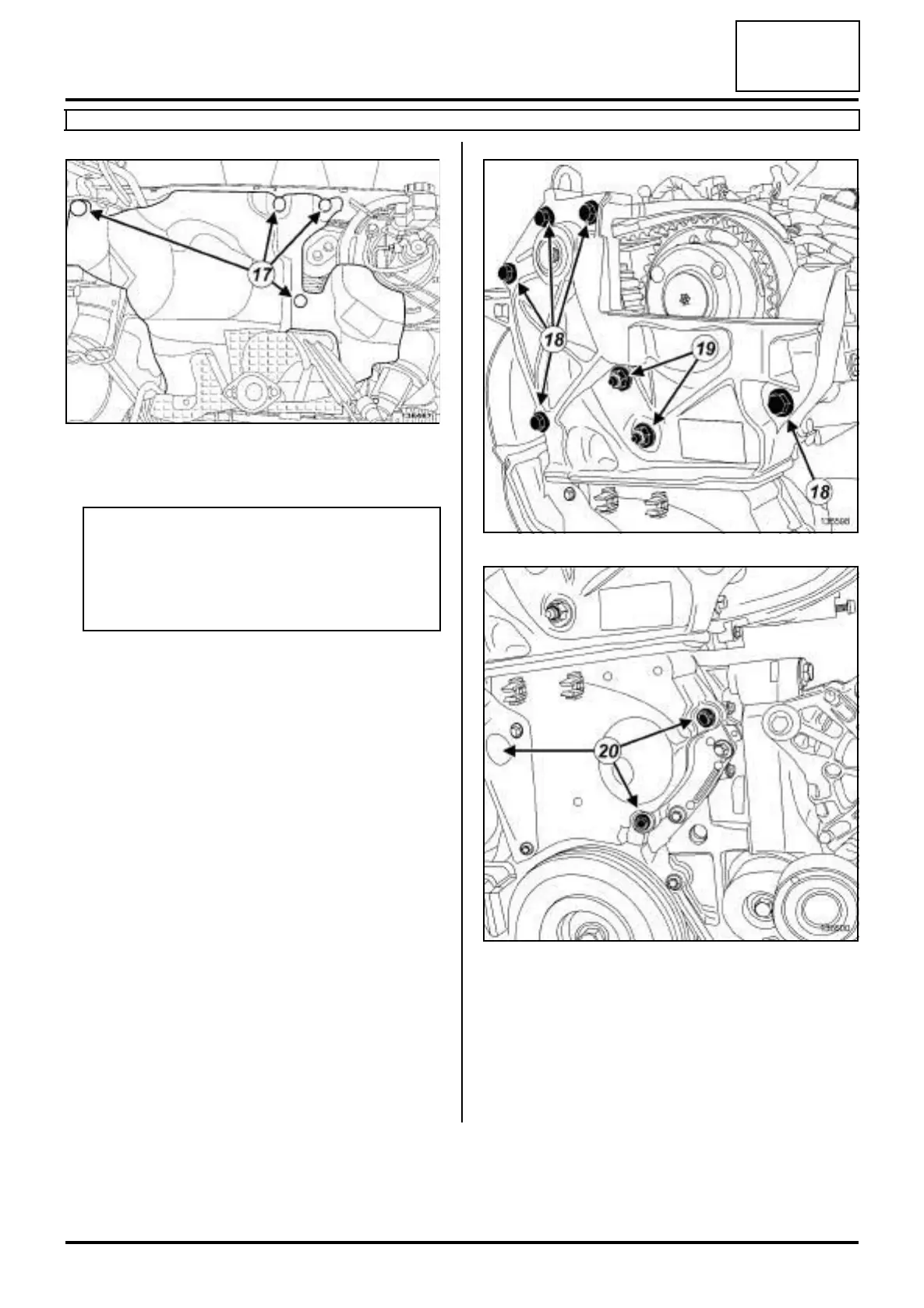

a Remove the bolts (17) from the bulkhead heat
shield.
a Move the bulkhead heat shield to one side.
a Remove:
- the bolts (18) from the upper timing cover,
- the upper timing cover nuts (19) ,
- the upper timing cover,
- the bolts (20) on the lower timing cover,
- the lower timing cover.
136467
WARNING
To prevent the surrounding components from
overheating, do not damage (tear, pierce, bend,
etc.) a heat shield.
Any damaged heat shields must be replaced.
136598
136600
