TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
F4R
11A

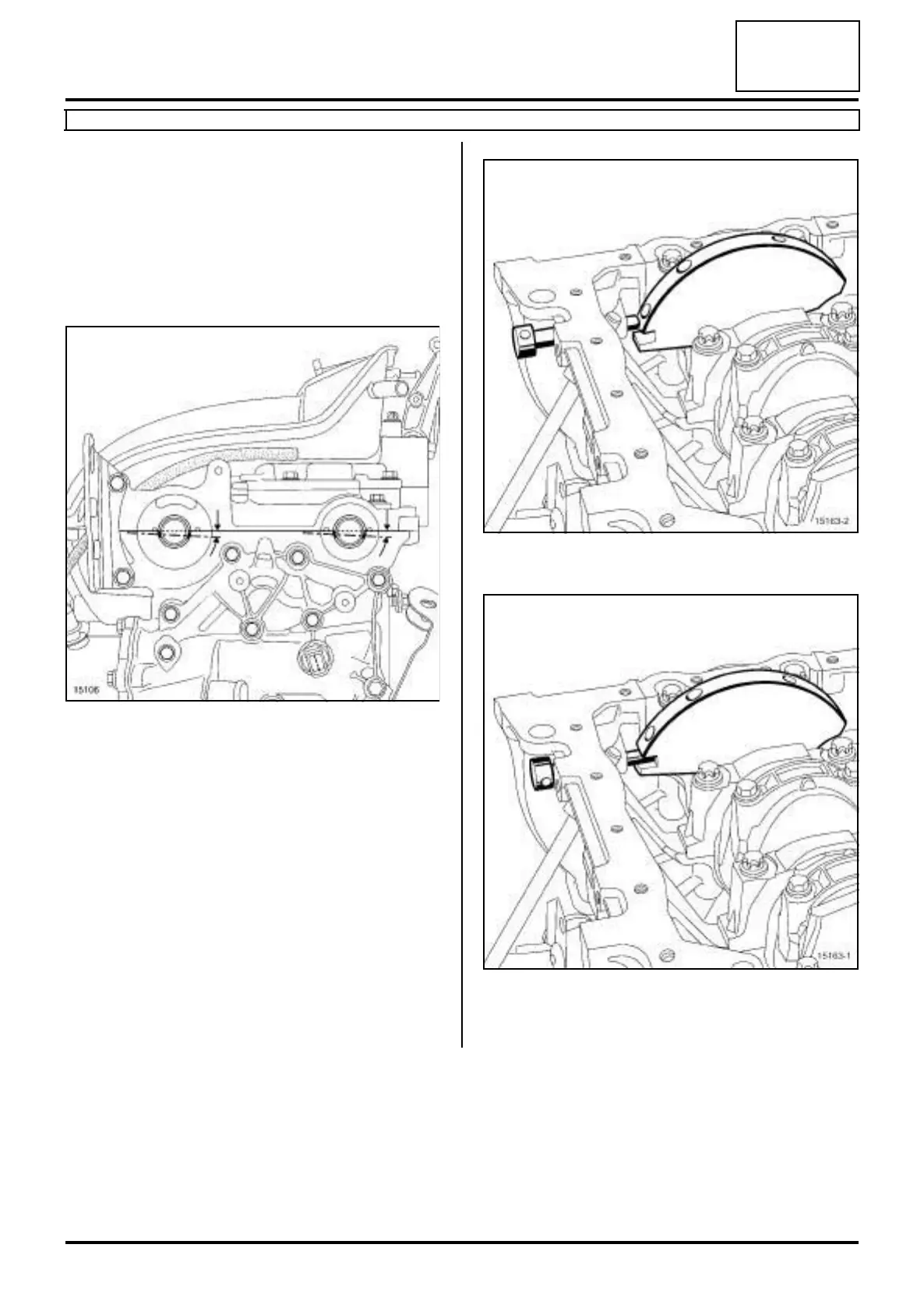

II - OPERATION FOR REMOVAL OF PART
CONCERNED
Adjusting the timing
a Refit:
-the crankshaft accessories pulley,
-the crankshaft accessories pulley bolt.
a Rotate the engine clockwise (timing end) so that the
camshaft grooves are offset below the centre line
and almost horizontal.
Position of TDC pin before setting point
Position of TDC pin setting point
a Insert the TDC setting pin (Mot. 1054) and rotate the
engine slightly clockwise (timing end) until the set-
ting point is reached.
