11A-67
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

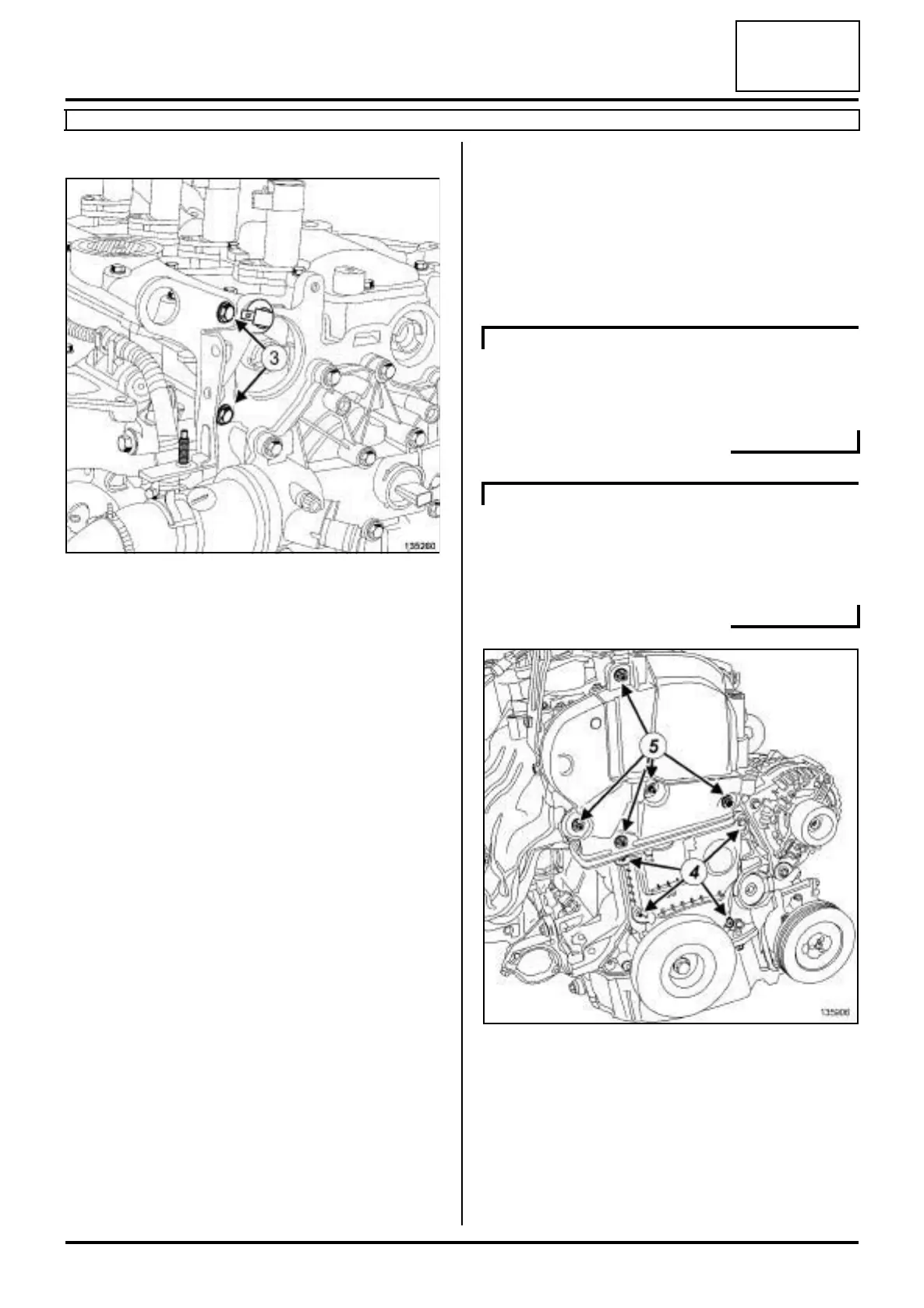

a Move aside the engine wiring.
a Remove:
-the lifting eye bolts (3) ,
-the lifting eye,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) .
a Check the crankshaft timing with the tool (Mot.
1489) by turning the crankshaft using the accesso-
ries pulley bolt and a spacer.
a Remove the accessories pulley bolt and the spacer.
a Position the crankshaft fully on the pin by turning the
engine flywheel using a screwdriver.
a Position the crankshaft fully on the pin by turning the
engine flywheel through the crankshaft position sen-
sor hole using a ratchet extension piece.
a Remove:
- the lower timing cover bolts (4) ,
- the lower timing cover,
- the upper timing cover bolts (5) ,
- the upper timing cover nuts (4) ,
- the upper timing cover.
135260
K4M, and 848
K4M, and 858 or 866
135906
