11A-69
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

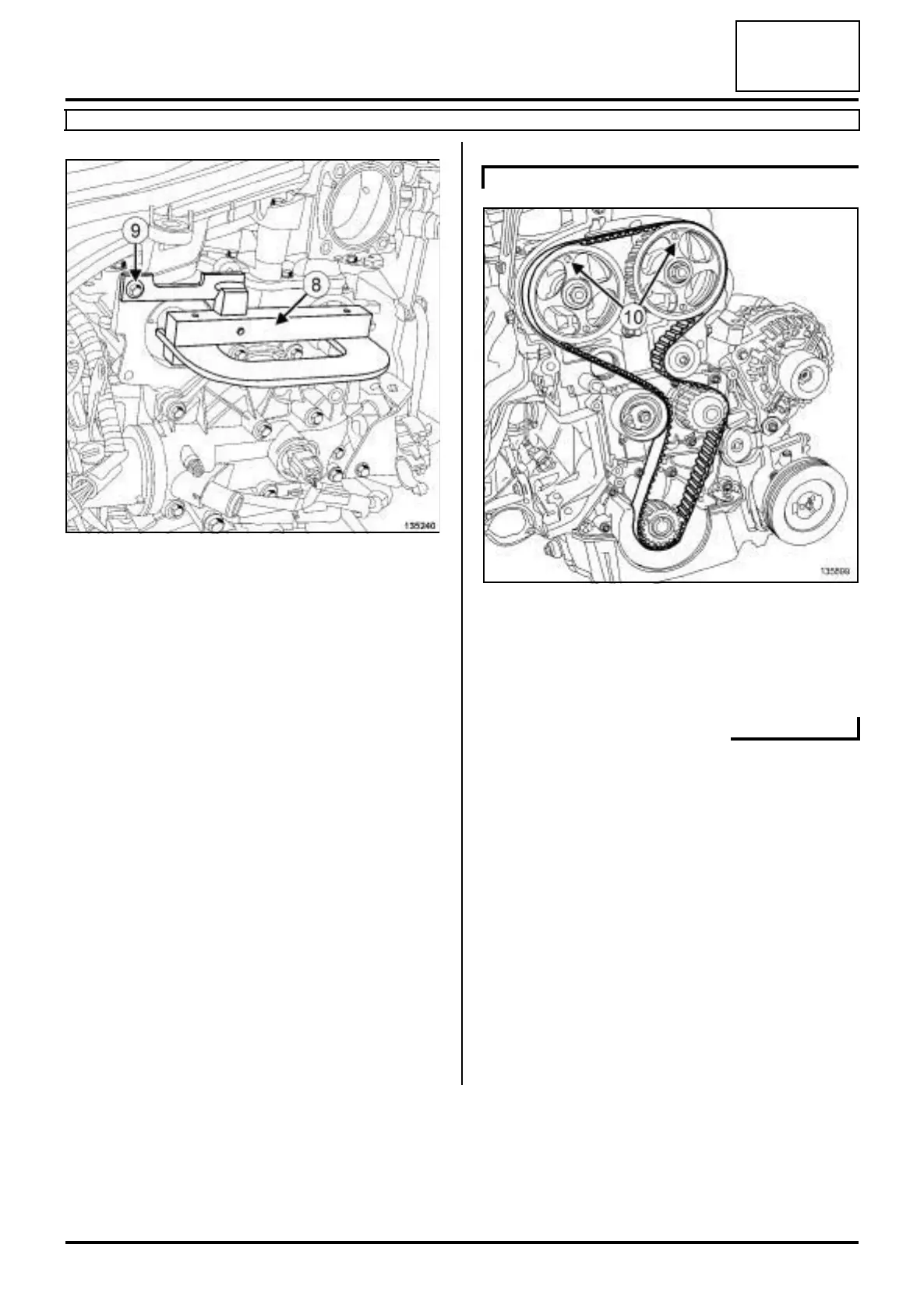

a Fit:
-the (Mot. 1496) (8) fitted with the (Mot. 1750) on
the end of the camshaft,
-a lifting eye bolt (9) to secure the tool (Mot. 1496).
a Check that the camshaft pulley mark (10) (Renault
sign) is vertical and pointing upwards.
a Use a pencil to make marks between the camshaft
pulleys and the rocker cover.
135240
K4M, and 848
135899
