TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

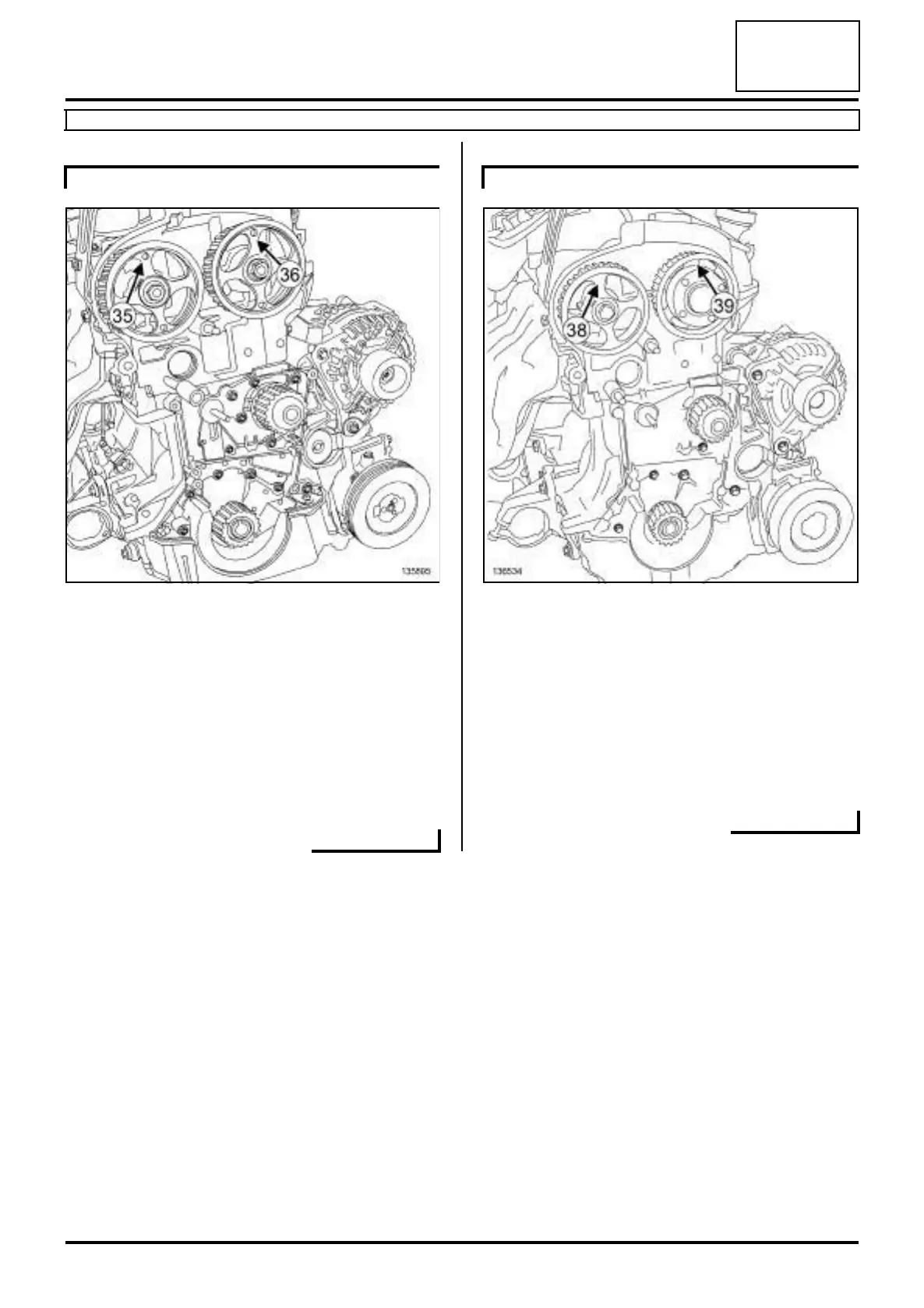

a Position:
-the RENAULT badge (35) etched on the exhaust
camshaft pulley stem vertically and pointing
upwards,
-the RENAULT badge (36) etched on the inlet
camshaft pulley stem vertically and pointing
upwards.
a Make a mark with a pencil between the inlet cams-
haft pulley and the rocker cover.
a Position:
- the RENAULT badge (38) etched on the exhaust
camshaft pulley stem vertically and pointing
upwards,
- the camshaft dephaser mark (39) vertically and
pointing upwards.
a Make a mark with a pencil between the camshaft de-
phaser and the rocker cover.
K4M, and 848
135895
K4M, and 858 or 866
136534
