11A-84
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

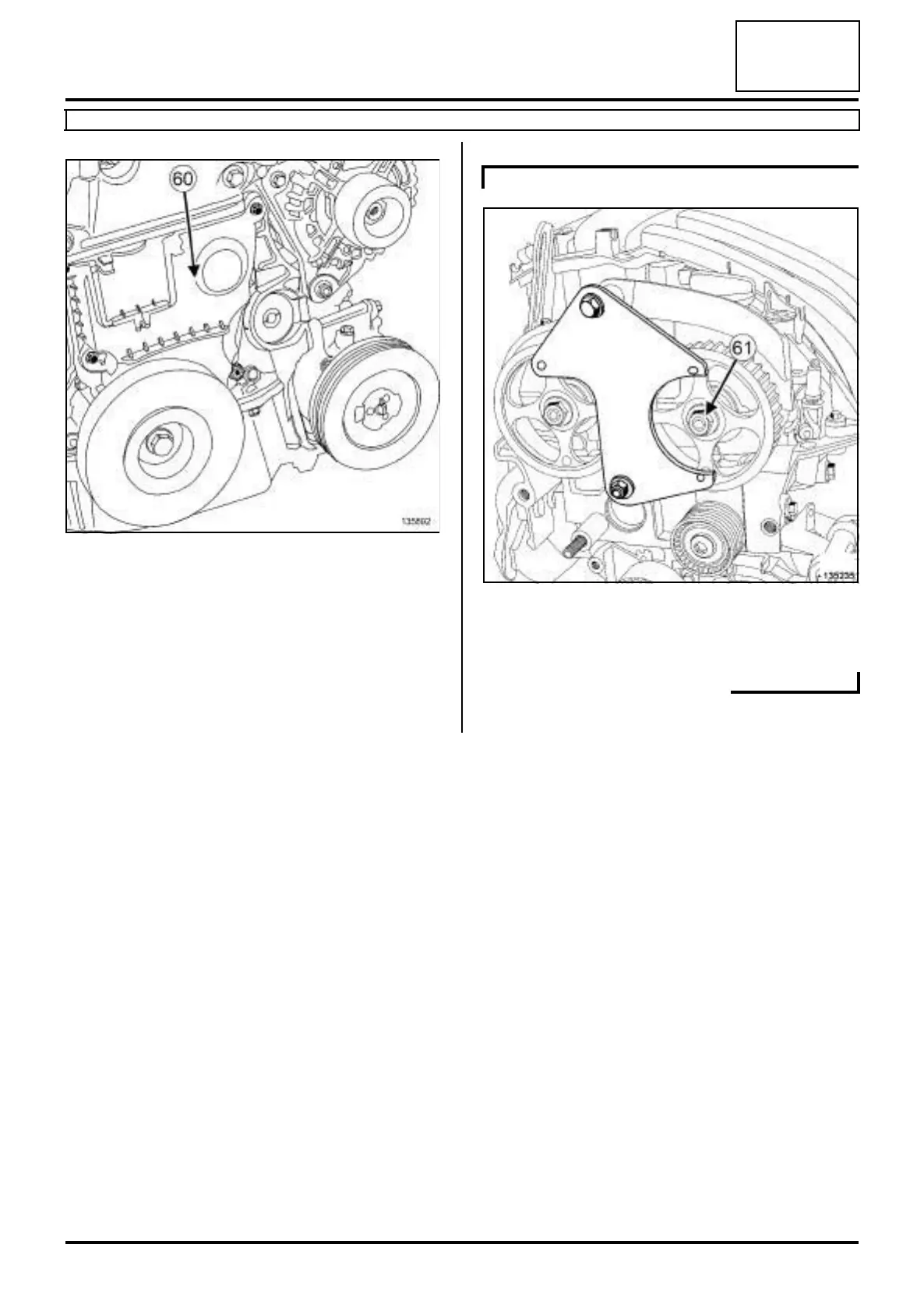

a Refit the lower timing cover (60) .
a Tighten to torque the lower timing cover bolts (12
N.m).
a Refit the accessories crankshaft pulley with a new
bolt.
a Tighten to torque and angle the new crankshaft ac-
cessories pulley bolt (40 N.m + 145˚ ±±
±±
15˚)
(crankshaft in contact with the TDC setting pin).
a Tighten to torque the inlet camshaft pulley nut (30
N.m + 84˚ ±±
±±
4) (61) .
135892
K4M, and 848
135235
