TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

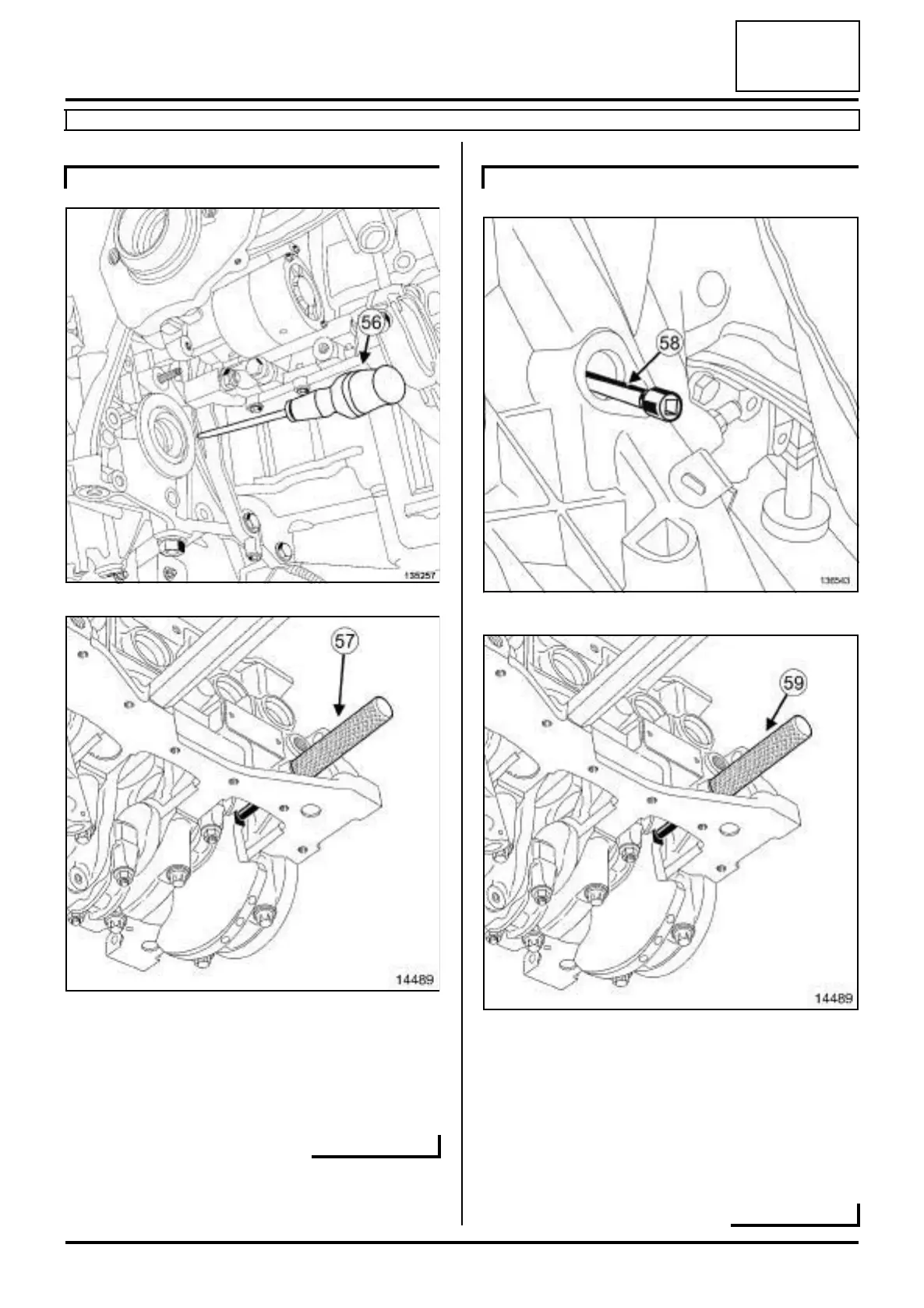

a Use a screwdriver (56) to check that the flywheel
does not turn (clockwise at the timing end), otherwi-
se bring the crankshaft back into contact with the
TDC setting pin (Mot. 1489) (57) using the screwdri-
ver; the crankshaft groove should be at the top.
a Use a ratchet extension piece (58) to check that the
flywheel does not turn (clockwise at the timing end),
otherwise bring the crankshaft back into contact with
the TDC setting pin (Mot. 1489) (59) using the rat-
chet extension piece; the crankshaft groove should
be pointing upwards.
K4M, and 848
135257
14489
K4M, and 858 or 866
136543
14489
