11A-112
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
F9Q
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the injector rail protector (see 13B, Diesel injec-
tion, Injector rail protector: Removal - Refitting,
page 13B-70) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

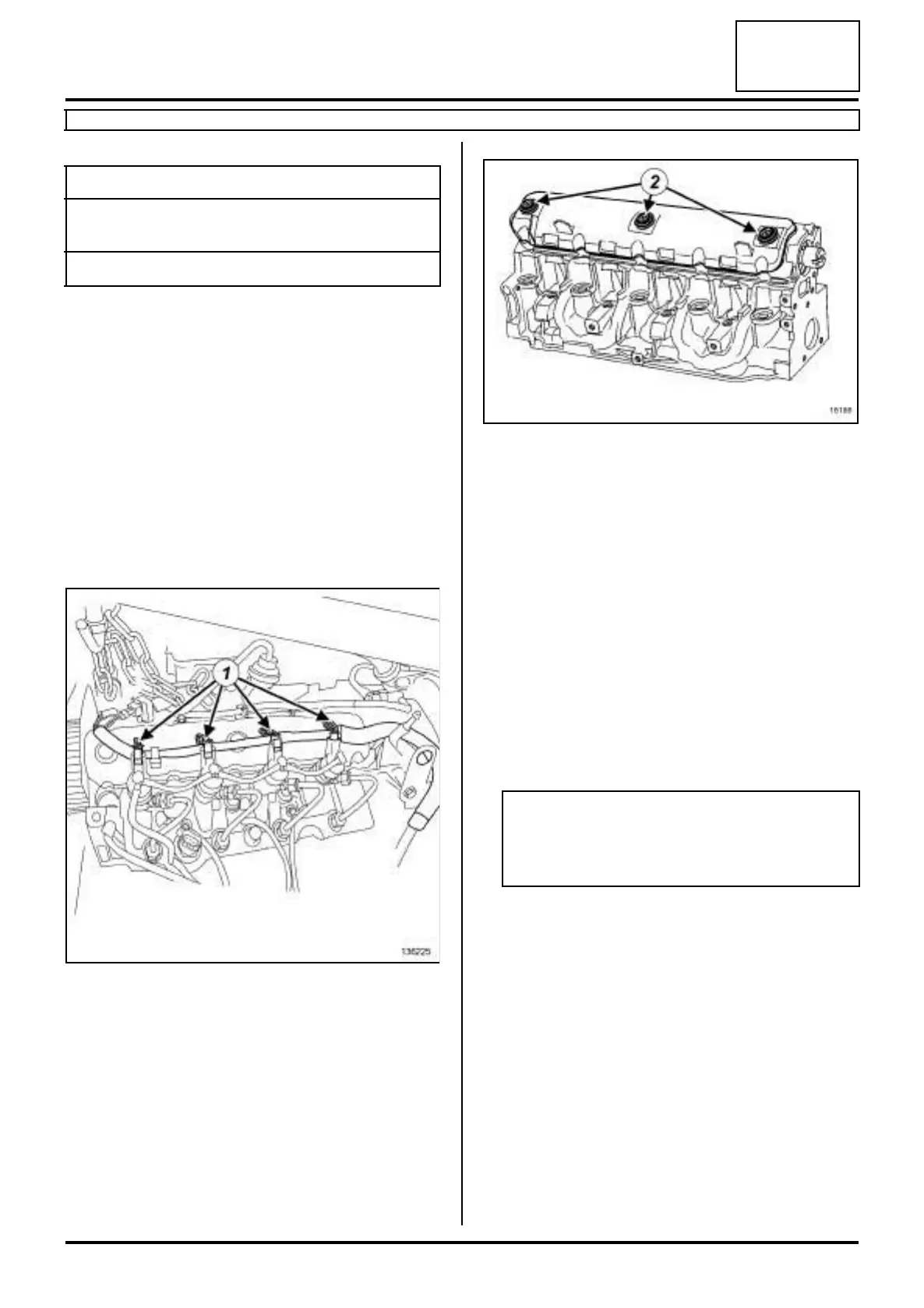

a Disconnect the injector connectors (1) .
a Remove:
- the rocker cover bolts (2) ,
- the rocker cover,
- the rocker cover seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Rocker cover gas-
ket (10,02,01,12).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
- the rocker cover joint face if it is to be re-used,
- the cylinder head joint face.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new rocker cover seal,
- the rocker cover.
Tightening torquesm
rocker cover bolts (ini-
tial torque)
2.5 N.m
rocker cover bolts 13 N.m
136225
16186
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
