11A-119
TOP AND FRONT OF ENGINE
Camshaft: Removal - Refitting
K9K
11A
bracket,
-the oil vapour rebreathing valve bracket.
a Disconnect the brake servo pipe from the vacuum
pump.
a Remove:
-the nuts (5) of the oil vapour rebreathing valve,
-the oil vapour rebreathing valve,
-the oil vapour rebreathing valve seal from the oil
vapour rebreathing valve.

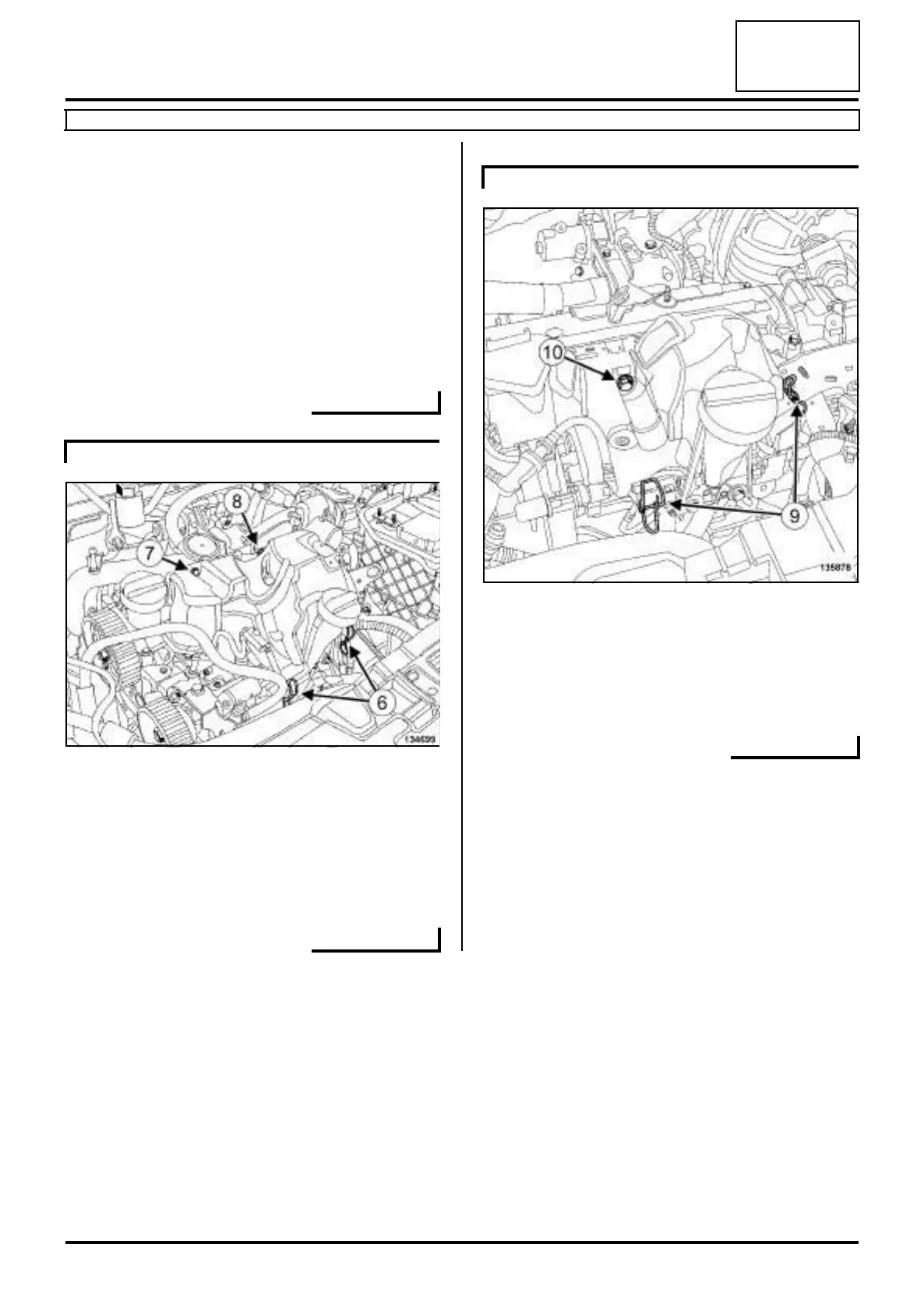

a Unclip the injector rail protector cover at (6) .
a Remove:
-the injector rail protector cover bolt (7) ,
-the injector rail protector cover nut (8) ,
-the injection rail protector cover,
a Unclip the injector rail protector cover at (9) .
a Remove:
- the injector rail protector cover bolt (10) ,
- the injection rail protector cover,
K9K, and 832
134699
K9K, and 830
135878
