Renault F4R - Page 312

11A-138
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K9K
11A
valve,
-the bracket of the oil vapour rebreathing valve.
a Disconnect the brake servo pipe union from the va-
cuum pump.
a Remove:
-the nuts (5) of the oil vapour rebreathing valve,
-the oil vapour rebreathing valve,
-the seal of the oil vapour rebreathing valve.

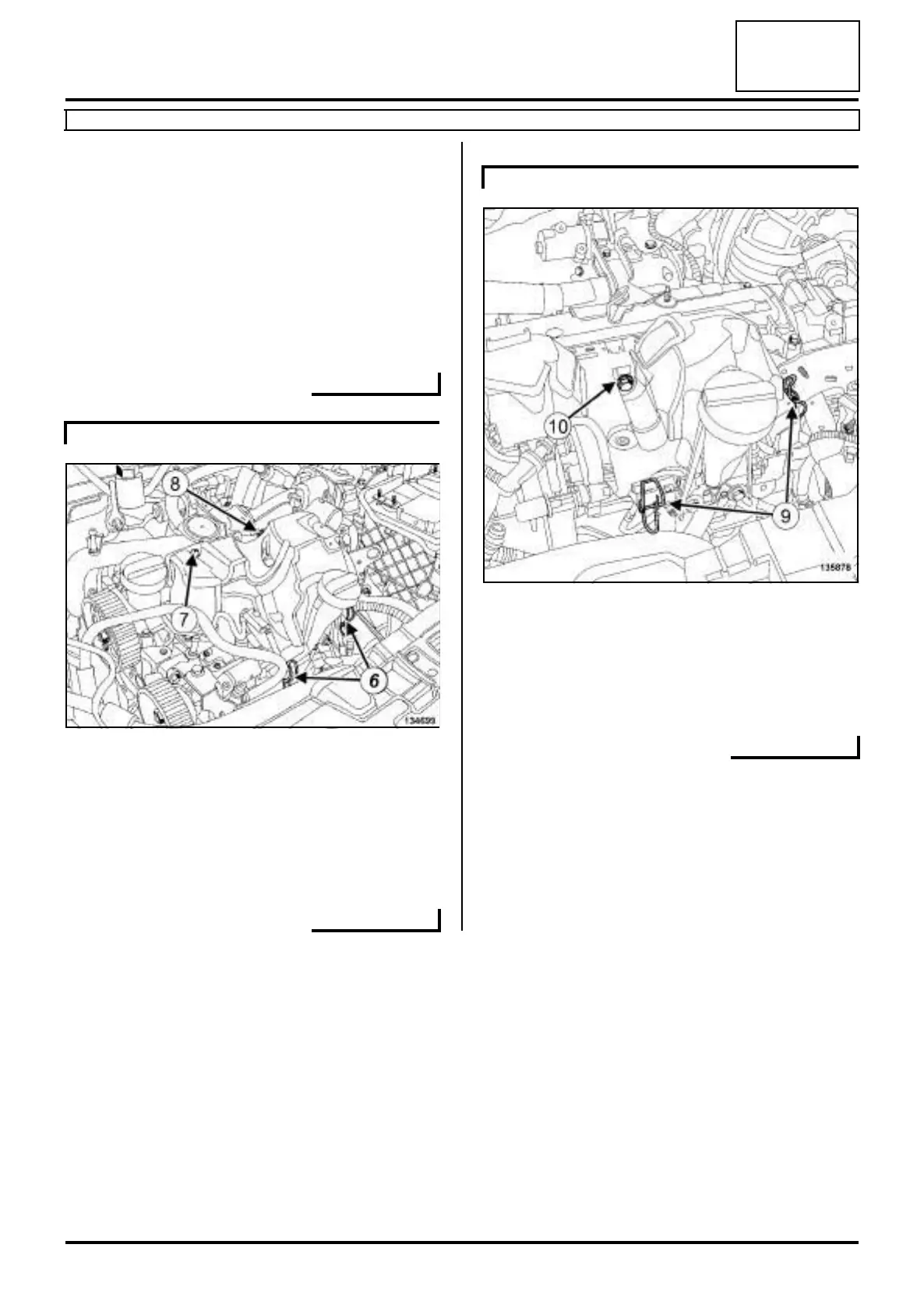

a Unclip the injector rail protector cover at (6) .
a Remove:
-the injector rail protector cover bolt (7) ,
-the injector rail protector cover nut (8) ,
-the injector rail protector cover.
a Unclip the injector rail protector cover at (9) .
a Remove:
- the injector rail protector cover bolt (10) ,
- the injector rail protector cover.
K9K, and 832
134699
K9K, and 830
135878
