11A-153
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery (see Battery: Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment).
a Drain the cooling system (see 19A, Cooling, Coo-
ling circuit: Draining - Refilling, page 19A-17) .

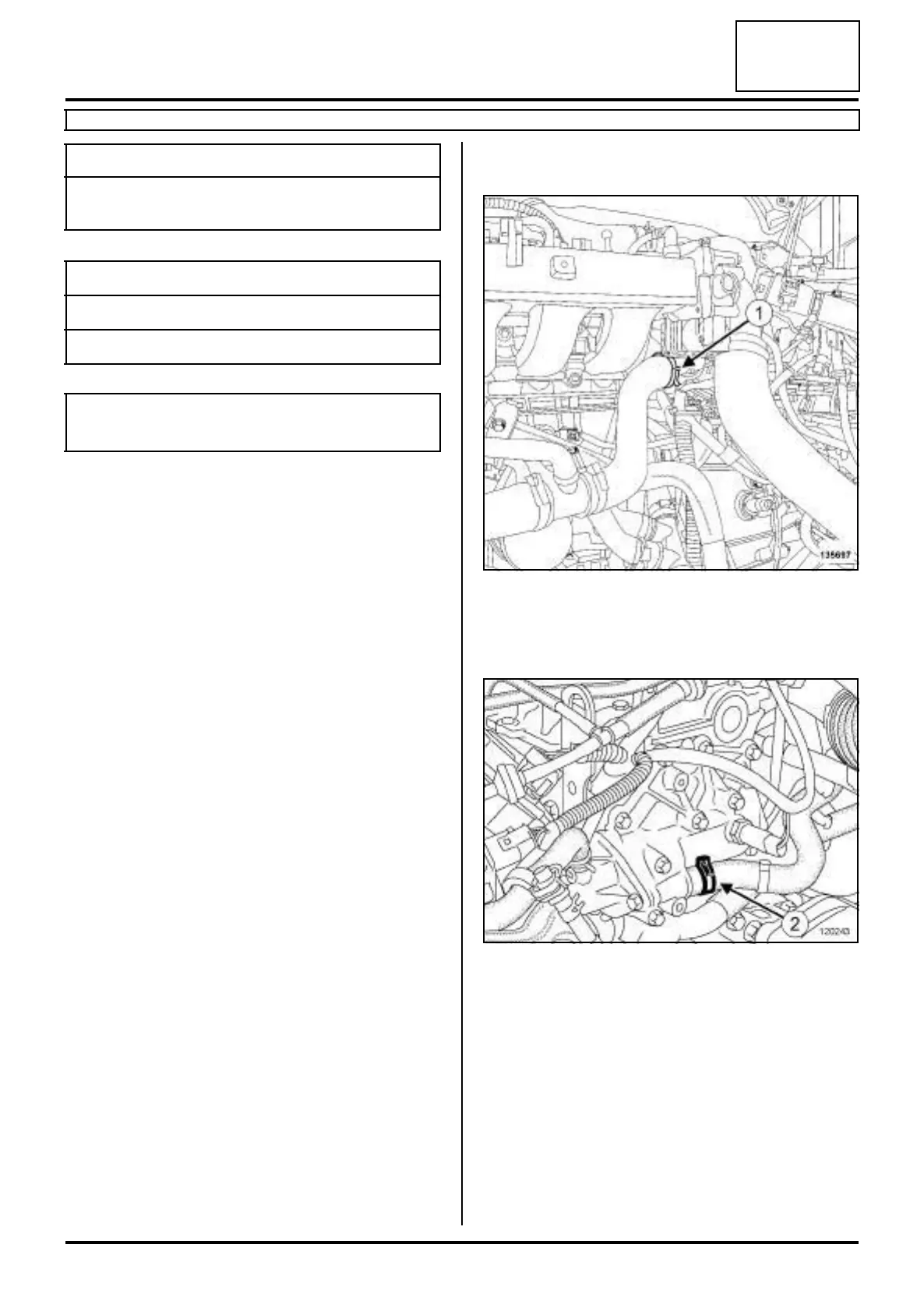

a Using the tool (Mot. 1448), separate the clip (1) on
the water chamber outlet hose.
a Disconnect the outlet hose from the water chamber.
a Using the tool (Mot. 1448), separate the clip (2) on
the heater matrix hose.
a Disconnect the heater matrix hose.
Essential special tooling
Mot. 1448 Long nose pliers for hose
clips.
Tightening torquesm
cylinder head bolts 30 N.m
cylinder head bolts 180˚ ±±
±±
25˚
IMPORTANT
Wear protective gloves during the operation.
135697
120243
