11A-155

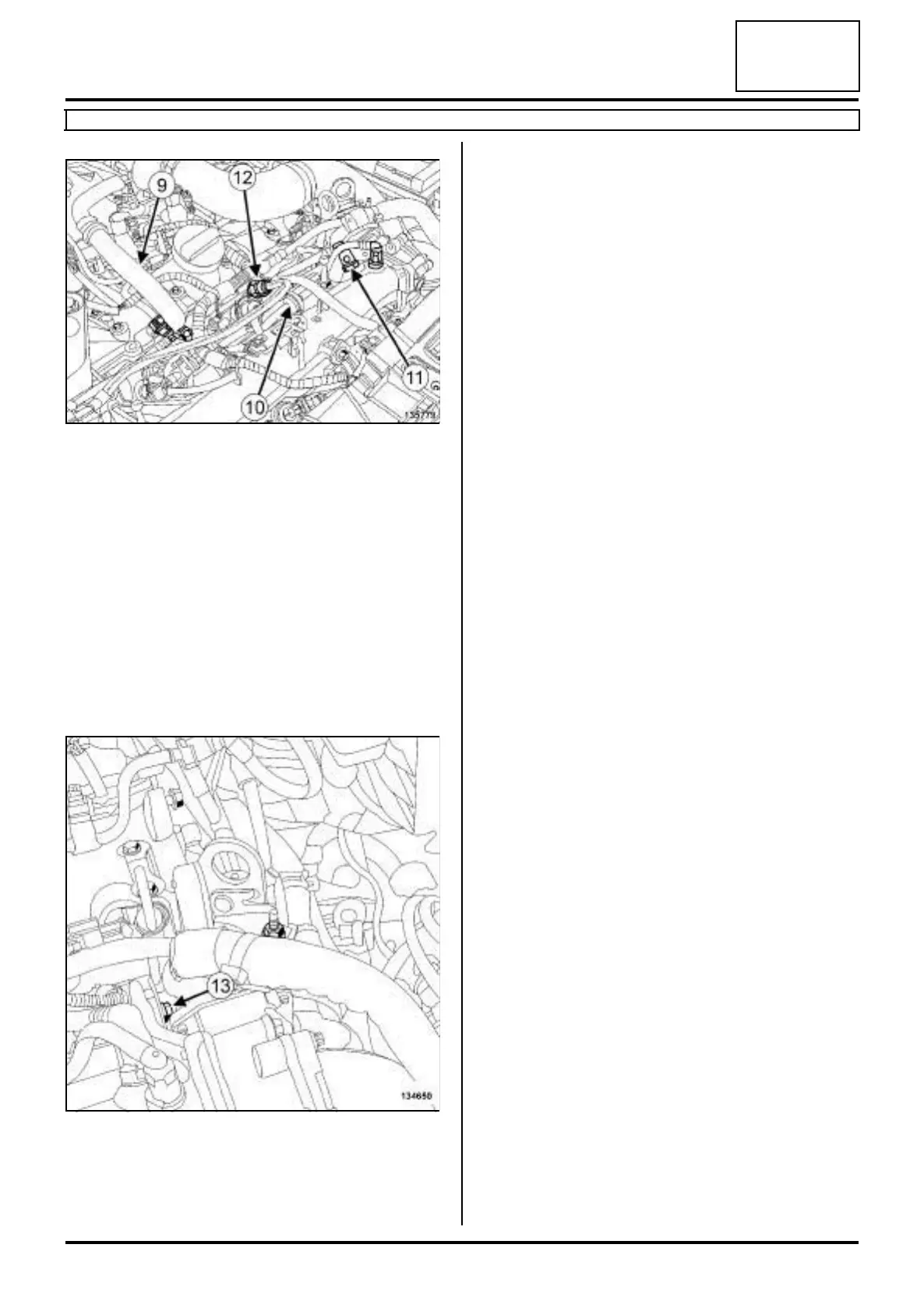

TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
F4R
11A
a Remove:
-the oil vapour rebreathing pipe (9) ,
-the petrol vapour rebreathing pipe (10) .
a Disconnect the vacuum pipe connector (11) from the
brake servo.
a Move the brake servo vacuum pipe to one side.
a Disconnect the fuel supply pipe (12) from the injector
rail.
a Move the fuel supply pipe aside.
a Remove:
-the dipstick guide bolt (13) ,
-the dipstick tube.
