11A-156
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
F4R
11A

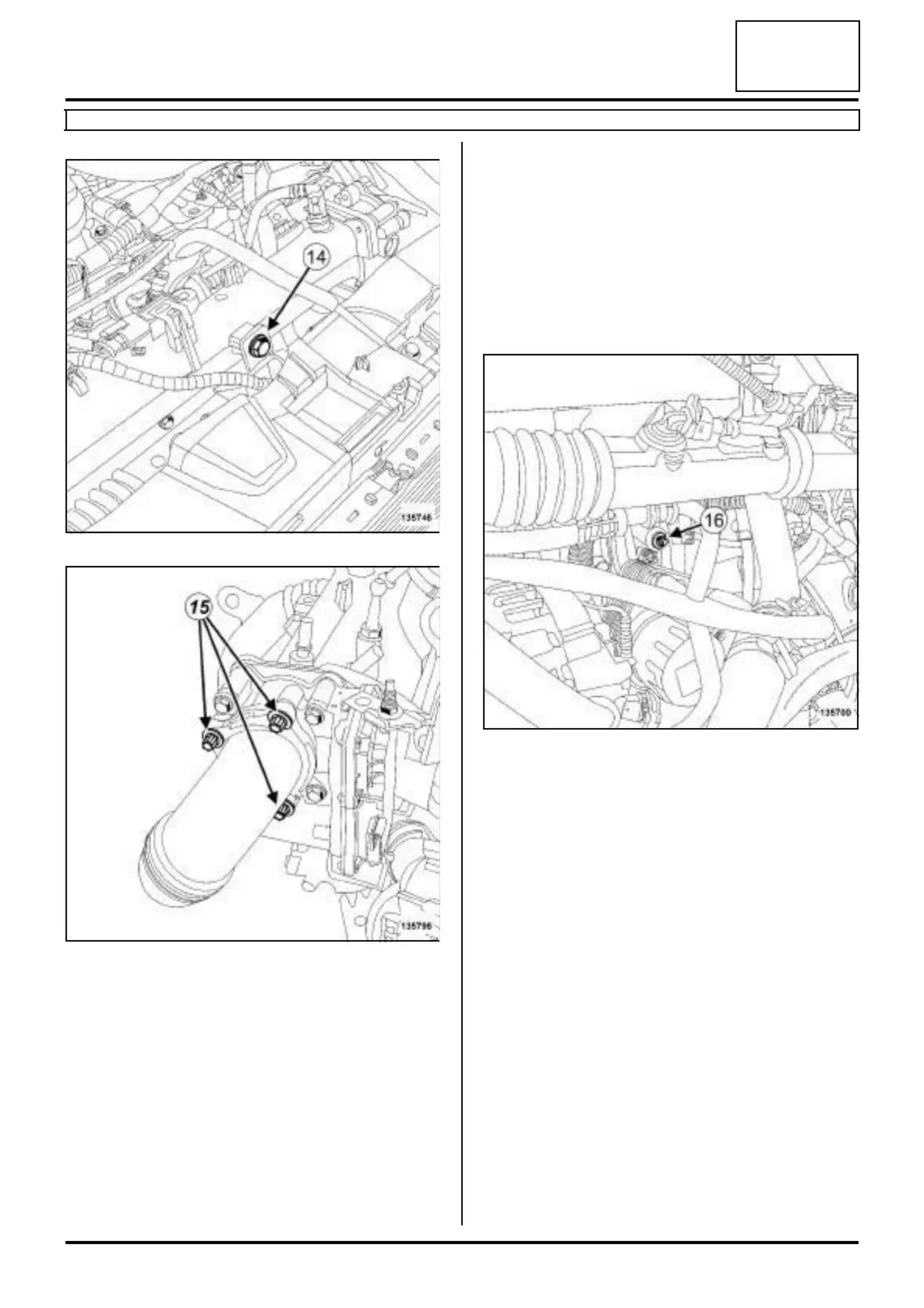

a Remove:
-the bolt (14) from the intercooler air outlet pipe on
the inlet manifold,
-the bolts (15) from the intercooler air outlet pipe on
the throttle valve.
a Move the intercooler air outlet pipe to one side.
a Remove:
-the camshaft position sensor (see 17B, Petrol in-
jection, Camshaft position sensor: Removal -
Refitting, page 17B-13) ,
-the camshaft dephaser solenoid valve (see 11A,
Top and front of engine, Camshaft dephaser
solenoid valve: Removal - Refitting, page 11A-
184) ,
- the ignition coils (see 17A, Ignition, Coils Remo-
val - Refitting, page 17A-1) ,
-the spark plugs (see 17A, Ignition, Spark plugs:
Removal - Refitting, page 17A-5) .
a Move aside the engine wiring.
a Remove:
- the bolt (16) from the air conditioning pipe on the in-
let manifold,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
- the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
135746
135796
135700
