TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
F4R
11A
a Remove:
-the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
-the right-hand differential output seal (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(21A, Manual gearbox),
-the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
,
-the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) ,
-the oil separator (see 11A, Top and front of engi-
ne, Oil decanter: Removal - Refitting, page 11A-
205) ,
-the rocker cover (see 11A, Top and front of engi-
ne, Rocker cover: Removal - Refitting, page
11A-88) ,
-the camshafts (see 11A, Top and front of engine,
Camshaft: Removal - Refitting, page 11A-114) ,
-the timing end camshaft seals (see 11A, Top and
front of engine, Camshaft seal at timing end:
Removal - Refitting, page 11A-186) .
a

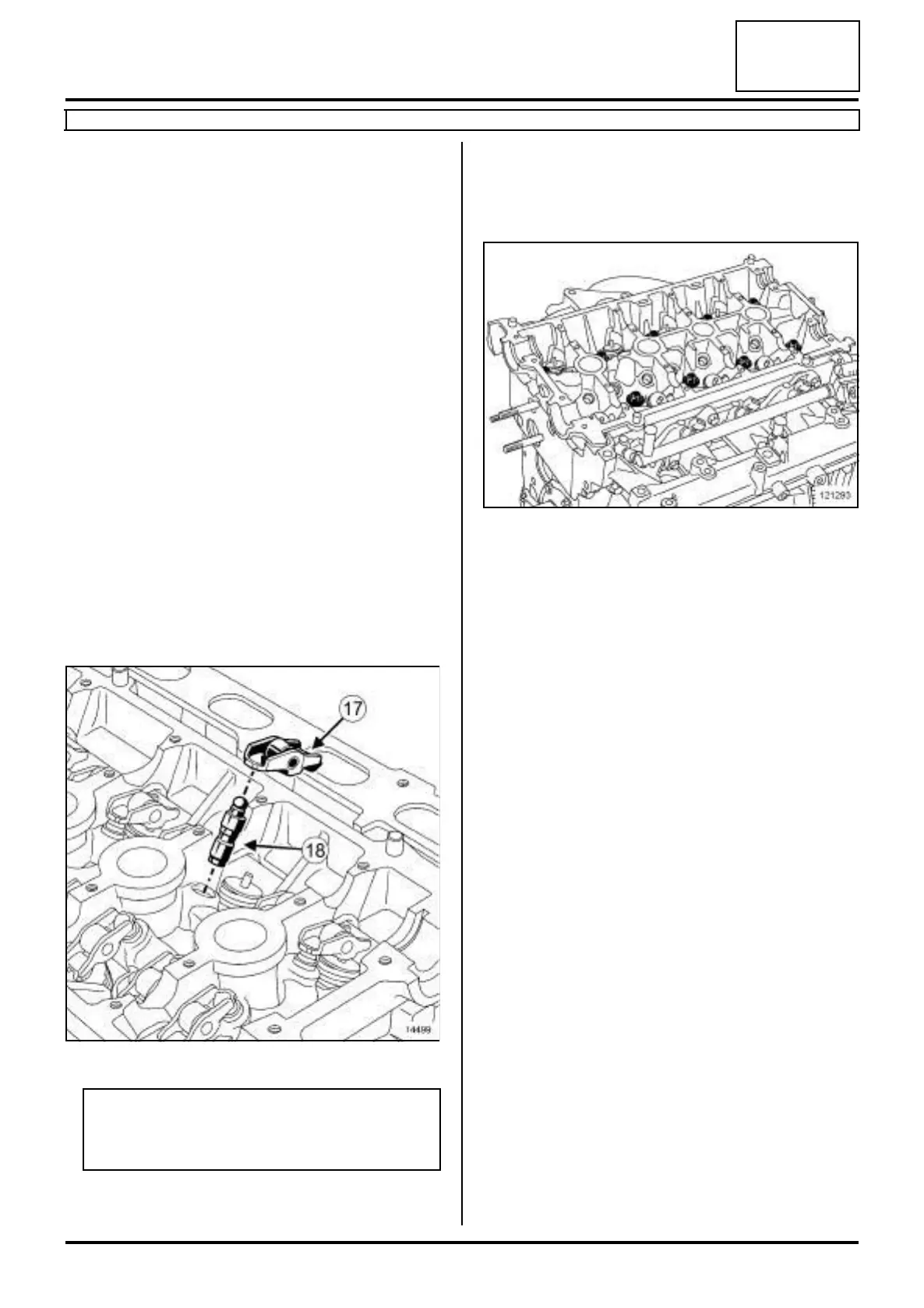

a Remove:
-the valve rockers (17) ,
- the hydraulic tappets (18) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the cylinder head bolts,
- the cylinder head,
- the cylinder head gasket.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Cylinder head gas-
ket (10,02,01,04).
a parts always to be replaced: Cylinder head bolts
(10,02,01,14).
14499
Note:
To prevent any risk of unpriming the hydraulic
tappets, make sure that they are vertical.
