11A-164
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
F9Q
11A

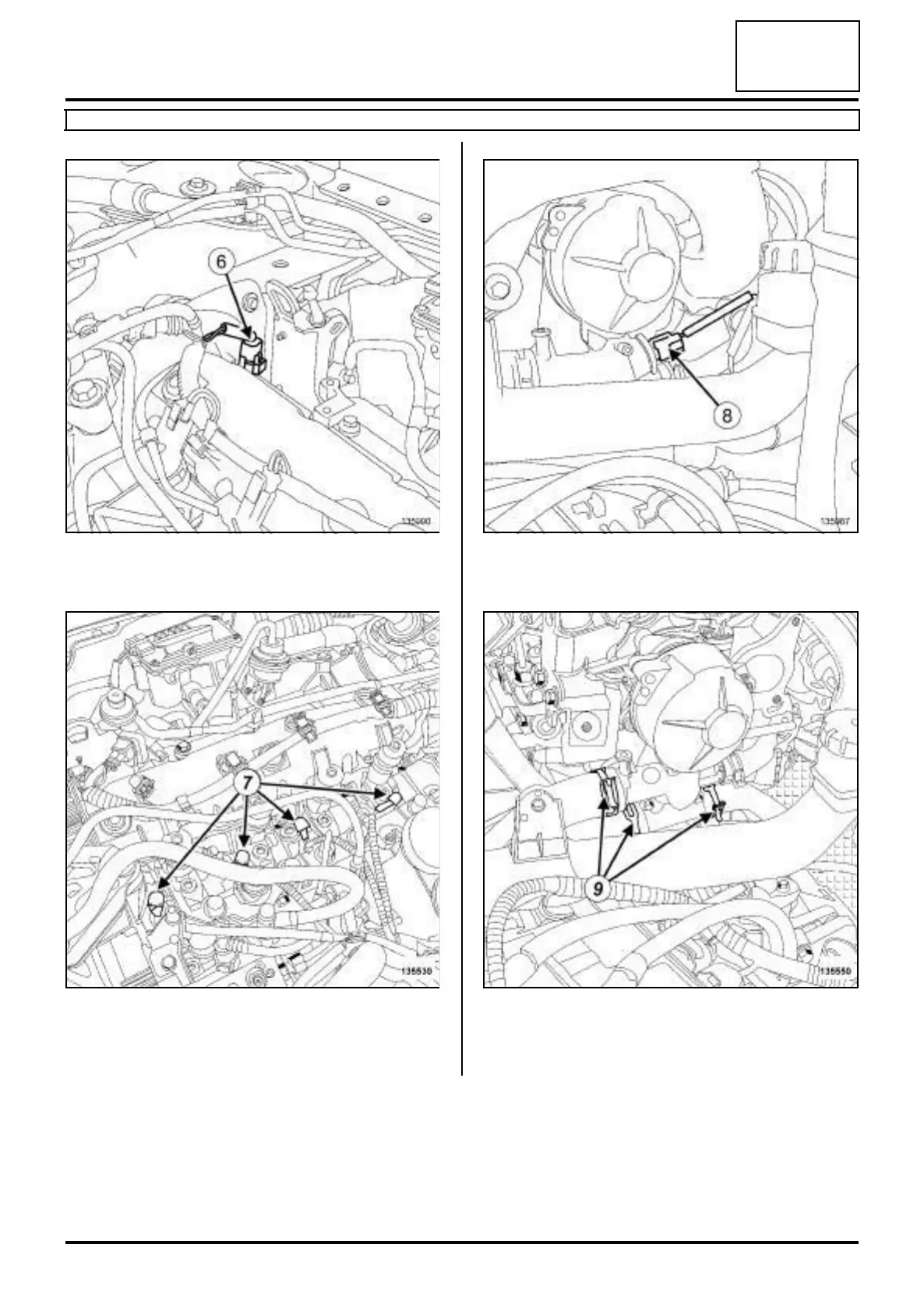

a Disconnect the connector (6) from the camshaft po-
sition sensor.
a Disconnect the heater plug connectors (7) .
a Separate the injection wiring.
a Disconnect the coolant temperature sensor connec-
tor (8) .
a Separate the clips (9) from the water chamber hoses
using the tool (Mot. 1448).
a Disconnect the water chamber hoses.
135990
135530
135987
135550
