11A-170
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K4M
11A

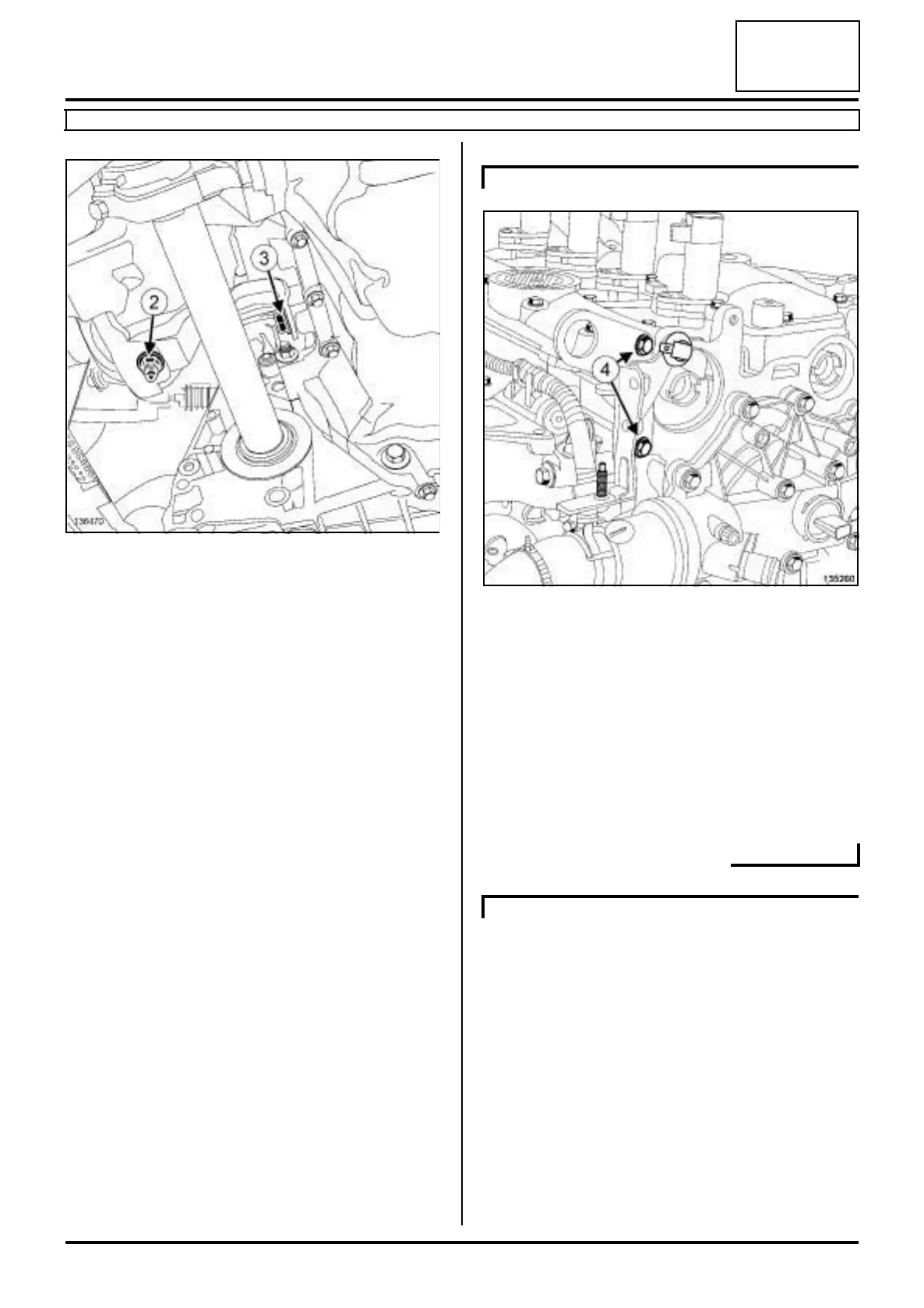

a Remove:
-the exhaust manifold strut nut (2) from the exhaust
manifold,
-the exhaust manifold strut bolt (3) from the cylinder
block,
-the exhaust manifold strut,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) ,
-the inlet manifold (see 12A, Fuel mixture, Inlet
manifold: Removal - Refitting, page 12A-23) ,
-the ignition coils (see 17A, Ignition, Coils Remo-
val - Refitting, page 17A-1) ,
-the spark plugs (see 17A, Ignition, Spark plugs:
Removal - Refitting, page 17A-5) .
a Unclip the wiring from the lifting eye.
a Remove:
- the engine wiring retaining nut,
- the dipstick guide bolt,
- the lifting eye bolts (4) ,
- the dipstick guide,
- the lifting eye.
a Unclip the wiring from the lifting eye.
a Remove:
- the engine wiring retaining nut,
- the lifting eye bolts,
- the lifting eye,
-the camshaft position sensor (see 17B, Petrol in-
jection, Camshaft position sensor: Removal -
Refitting, page 17B-13) ,
-the camshaft dephaser solenoid valve (see 11A,
Top and front of engine, Camshaft dephaser
solenoid valve: Removal - Refitting, page 11A-
184) ,
136470
K4M, and 848
135260
K4M, and 858 or 866
