11A-171
TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K4M
11A
-the camshaft dephaser (see 11A, Top and front of
engine, Camshaft dephaser: Removal - Refit-
ting, page 11A-177) .
a Remove:
-the oil separator (see 11A, Top and front of engi-
ne, Oil decanter: Removal - Refitting, page 11A-
205) ,
-the rocker cover (see 11A, Top and front of engi-
ne, Rocker cover: Removal - Refitting, page
11A-88) ,
-the camshafts (see 11A, Top and front of engine,
Camshaft: Removal - Refitting, page 11A-114) ,
-the camshaft seals (see 11A, Top and front of en-
gine, Camshaft seal at timing end: Removal -
Refitting, page 11A-186) ,
-the injector rail (see 17B, Petrol injection, Injec-
tor rail - Injectors: Removal - Refitting, page
17B-19) .

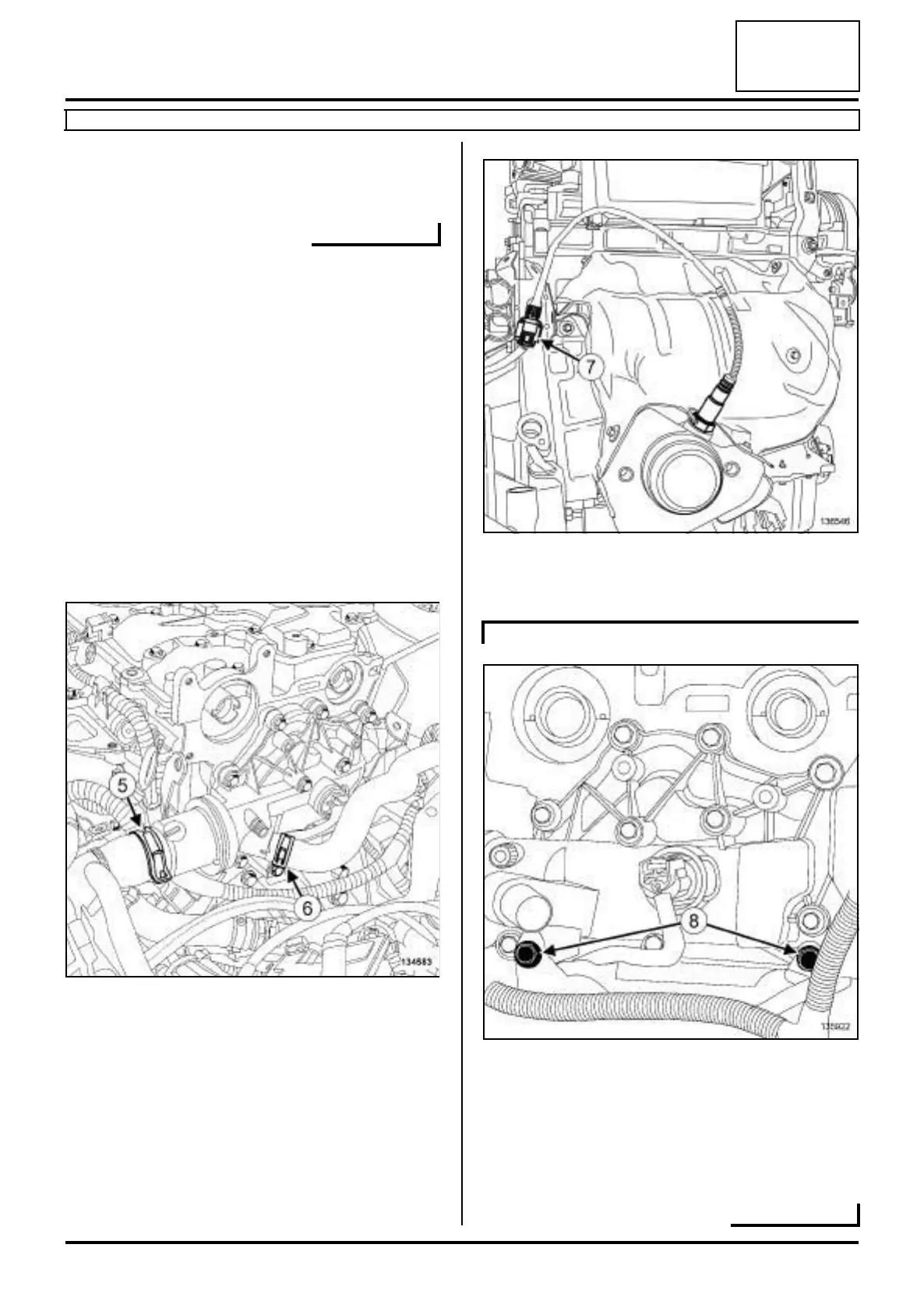

a Using the (Mot. 1448) or (Mot. 1202-01) or (Mot.
1202-02) remove:
-the clip (5) from the top hose on the water cham-
ber,
-the heater matrix hose clip (6) .
a Disconnect:
-the top hose on the water chamber,
-the heater matrix hose,
-the coolant temperature sensor connector.
a Disconnect the upstream oxygen sensor connector
(7) .
a Disconnect the crankshaft position sensor connec-
tor.
a Remove the bolts (8) from the engine wiring chan-
nel.
a Unclip the wiring of the injector holder shim.
134583
136546
K4M, and 848
135922
