11A-172

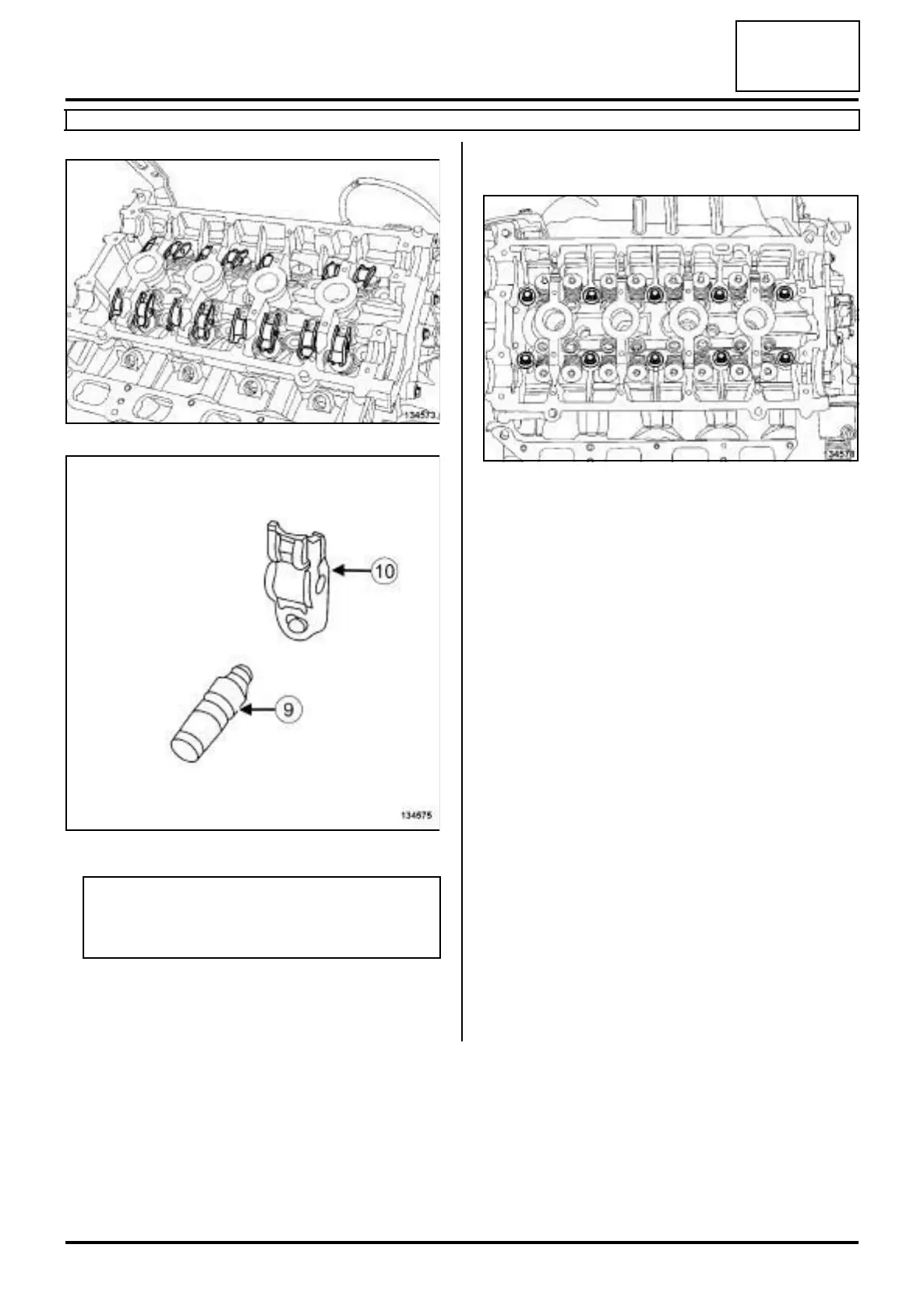

TOP AND FRONT OF ENGINE
Cylinder head: Removal - Refitting
K4M
11A
a
a Remove:
-the valve rockers (10) ,
-the hydraulic tappets (9) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the cylinder head bolts,
- the cylinder head.
a Mount the cylinder head on the cylinder head sup-
port (Mot. 1573).
a Remove the cylinder head gasket from the cylinder
block.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Cylinder head bolts
(10,02,01,14).
a parts always to be replaced: Cylinder head gas-
ket (10,02,01,04).
a parts always to be replaced: ring between ex-
haust manifold and catalytic converter (10,08,02,
20).
134573
134575
Note:
To prevent any risk of unpriming the hydraulic
tappets, make sure that they are vertical.
134578
