11A-187
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
K4M
11A
-the exhaust camshaft sprocket,
-the inlet camshaft sprocket nut,
-the inlet camshaft sprocket.

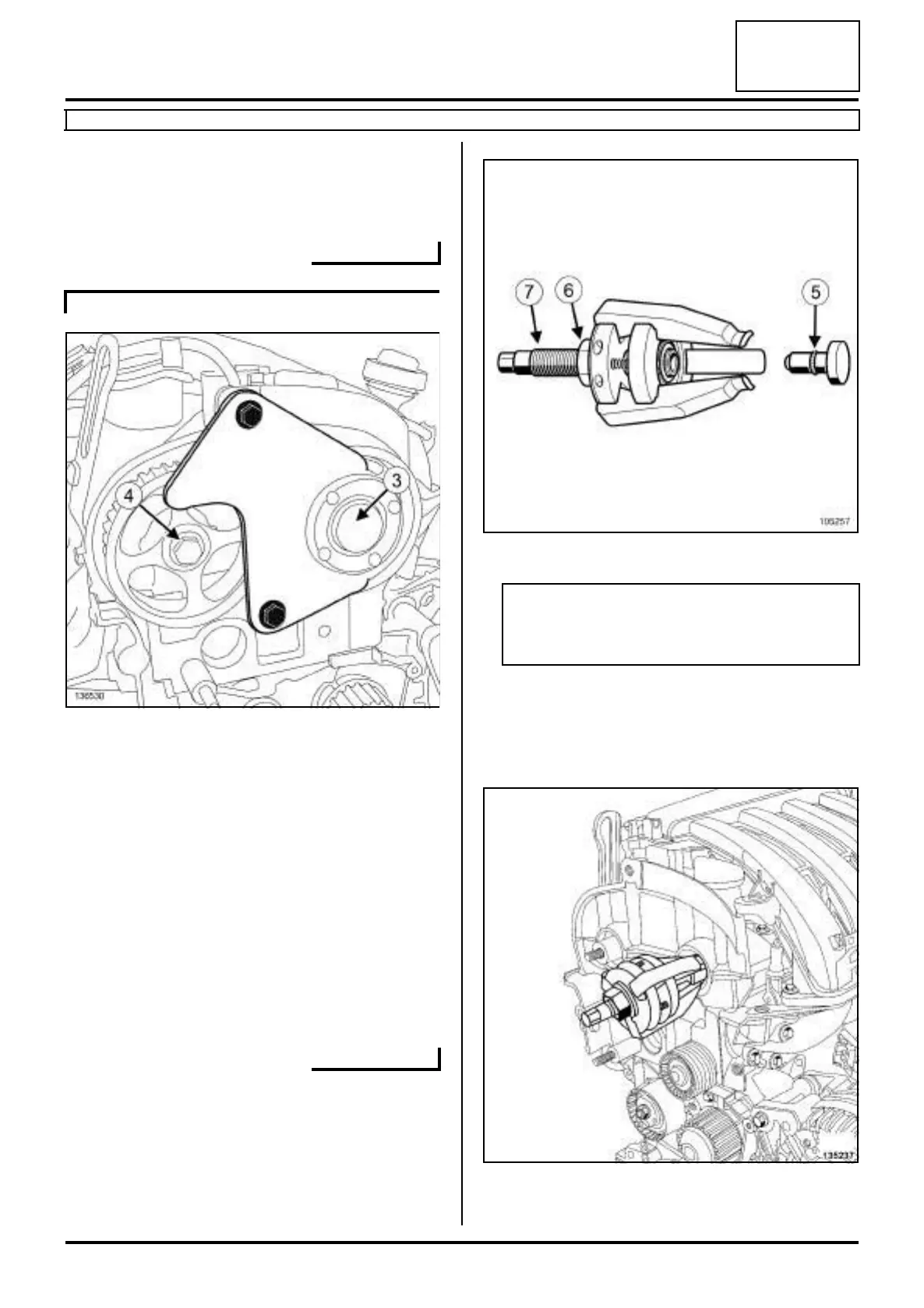

a Remove the camshaft dephaser blanking cover (3) .
a Undo:
-the exhaust camshaft sprocket nut (4) ,
-the camshaft dephaser bolt.
a Remove the tool (Mot. 1490-01) from the camshaft
sprockets.
a Remove:
-the exhaust camshaft sprocket nut,
-the exhaust camshaft sprocket,
-the camshaft dephaser bolt,
-the camshaft dephaser.
a
a Always remove the end piece (5) of the tool (Mot.
1577).
a Completely unscrew the nut (6) and the bolt (Mot.
1577) of the (7) .
a Position the claws of the (Mot. 1577) on the cams-
haft.
K4M, and 858 or 866
136530
105257
Note:
The camshaft seal is removed from the timing
end using the (Mot. 1577).
135237
