11A-188
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
K4M
11A

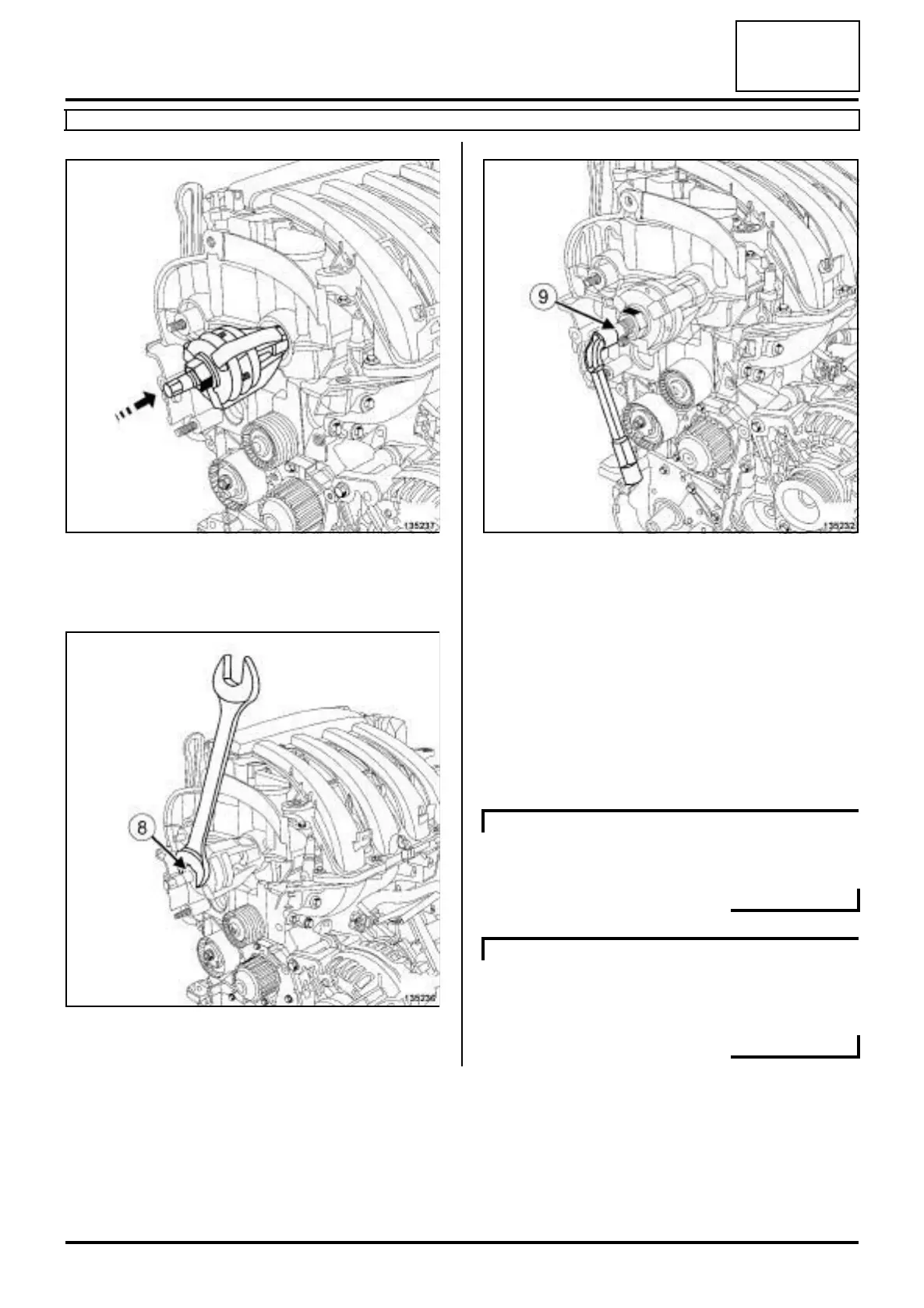

a Push the tool (Mot. 1577) until contact is made
between the ends of the claws and the camshaft
seal.
a Separate the claws by turning the bolt (8) clockwise
using an open-jawed spanner.
a Remove the camshaft seal by turning the bolt (9)
clockwise.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Camshaft seal on ti-
ming end (10,02,02,02).
a parts always to be replaced: Exhaust camshaft
pulley nut (10,02,02,13).
a Always replace the inlet camshaft pulley nut.
a parts always to be replaced: Camshaft dephaser
sprocket bolt (10,02,02,06).
135237
135236
135232
K4M, and 848
K4M, and 858 or 866
