11A-193
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
K9K
11A

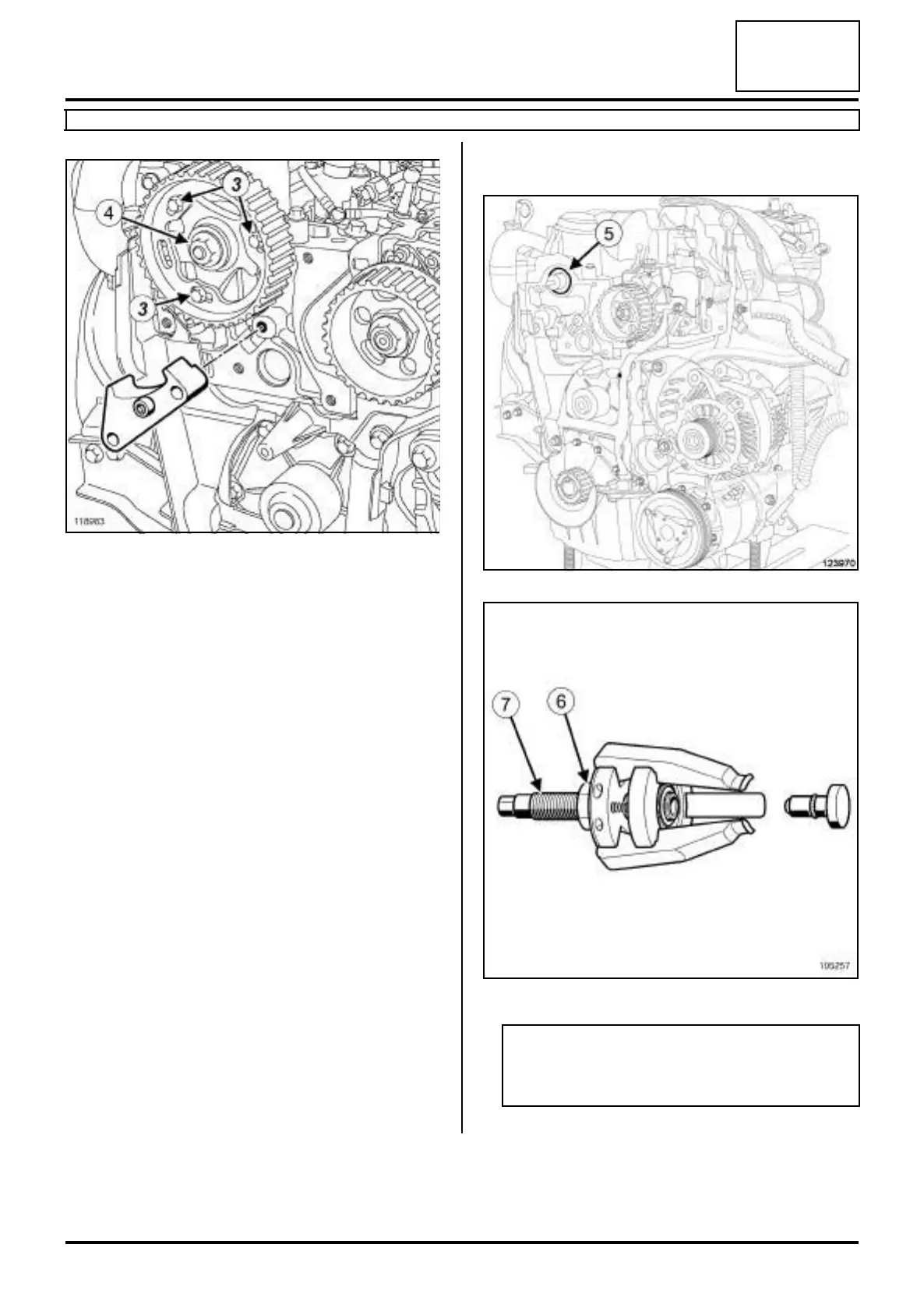

a Undo the camshaft pulley hub bolts (3) .
a Fit the (Mot. 1606) on the cylinder head to lock the
camshaft pulley wheel.
a Tighten the camshaft pulley hub bolts (3) .
a Remove:
-the nut (4) from the camshaft pulley,
-the (Mot. 1606),
-the camshaft pulley.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a
a Loosen bolts (6) and (7) fully from the (Mot. 1577).
118983
123970
105257
Note:
The timing end camshaft seal (5) is removed
using the tool (Mot. 1577).
