11A-194
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
K9K
11A

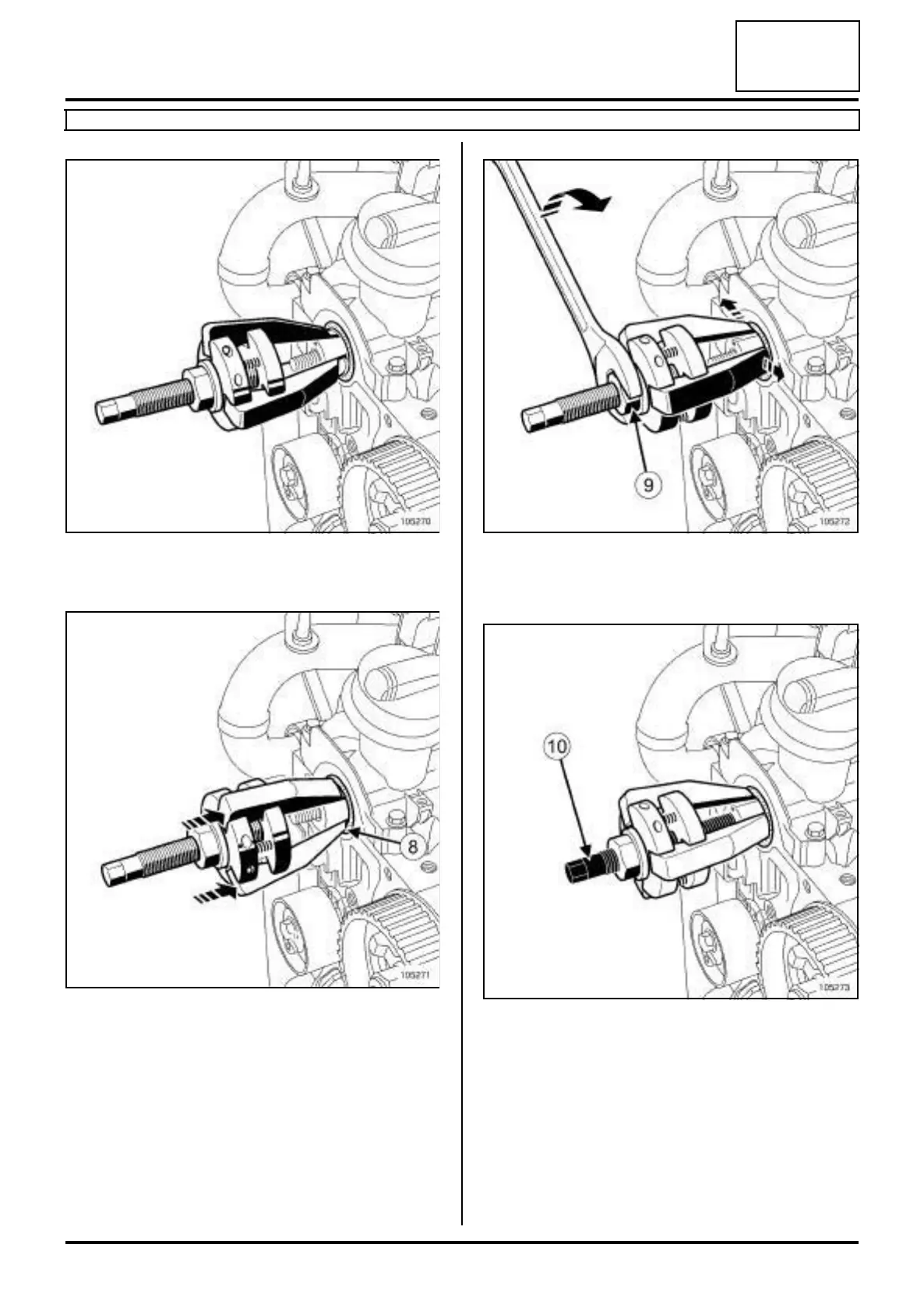

a Position the claws of the (Mot. 1577) on the cams-
haft.
a Push the tool (Mot. 1577) until contact is made
between the ends (8) of the claws and the camshaft
seal.
a Separate the claws by turning the bolt (9) clockwise
using an open-jawed spanner.
a Remove the camshaft seal by turning the bolt (10)
clockwise.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Camshaft seal on ti-
ming end (10,02,02,02).
