11A-200
TOP AND FRONT OF ENGINE
Camshaft seal at timing end: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery (see Battery: Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) .

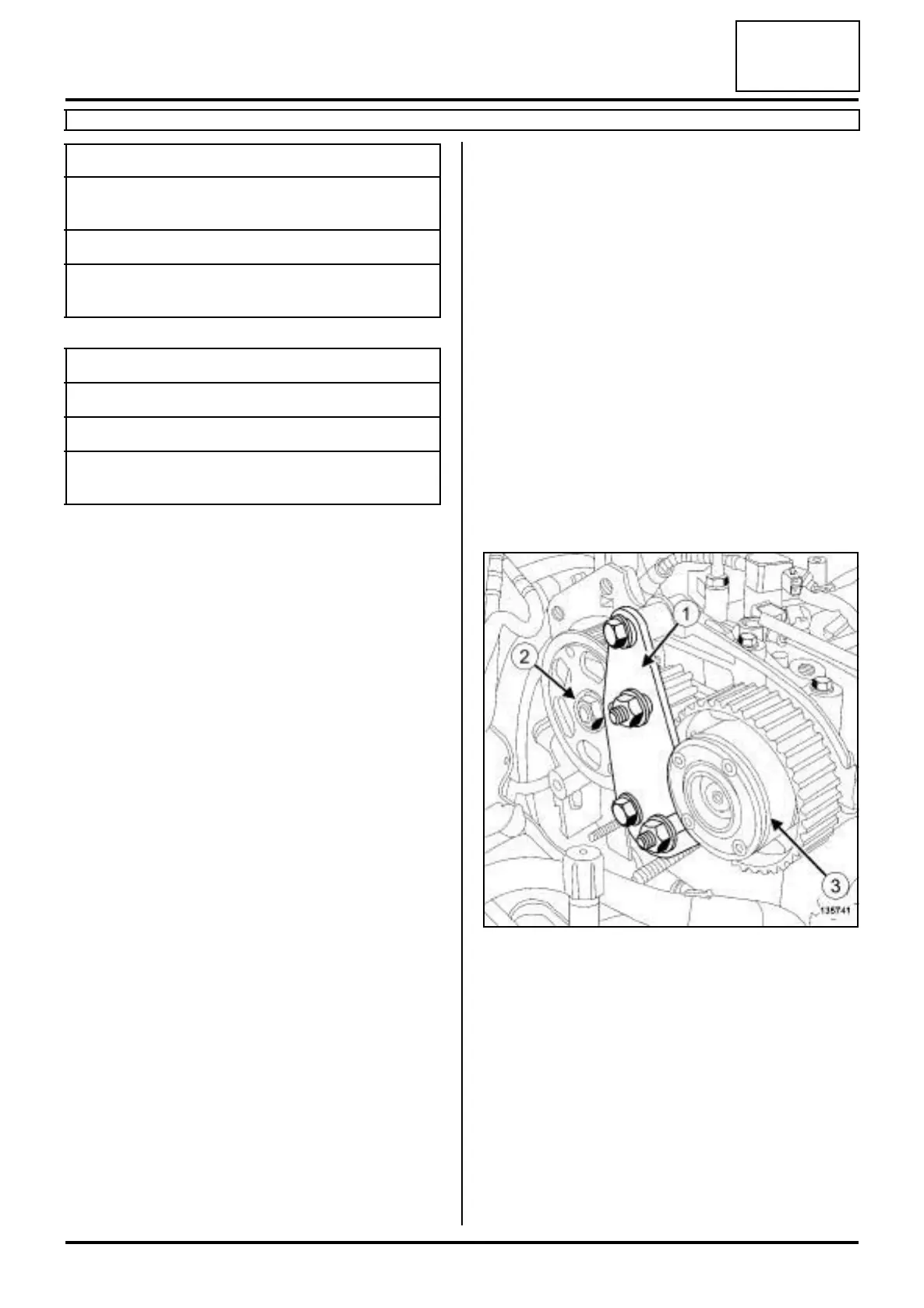

a Position the (Mot. 1801) (1) .
a Torque tighten the toothed sprocket nuts (80
N.m).
a Remove:
- the exhaust camshaft pulley nut (2) ,
- the camshaft dephaser (see 11A, Top and front of
engine, Camshaft dephaser: Removal - Refit-
ting, page 11A-177) (3) ,
- the (Mot. 1801),
- the exhaust camshaft pulley.
Essential special tooling
Mot. 1801 Camshaft sprocket locking
tool - F4 engine.
Mot. 1517 Camshaft seal fitting tool.
Mot. 1512 Exhaust camshaft oil seal fit-
ting tool (28 x 47).
Tightening torquesm
toothed sprocket nuts 80 N.m
toothed sprocket nuts 80 N.m
exhaust camshaft pul-
ley nut
30 N.m ±±
±±
86˚
135741
