Renault F4R - Page 385

11A-211
TOP AND FRONT OF ENGINE
Oil decanter: Removal - Refitting
F4R
11A

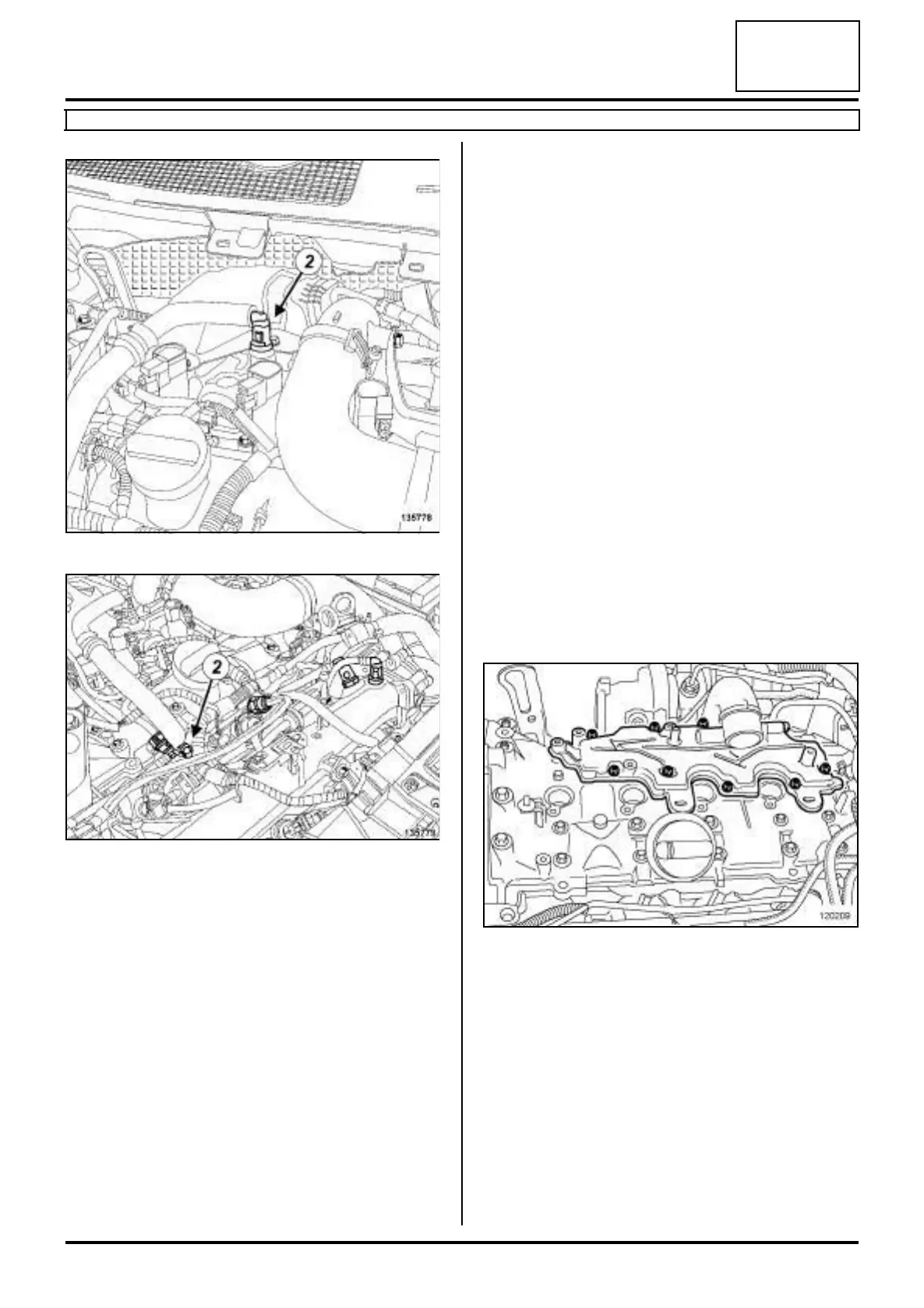

a Disconnect the oil vapour rebreathing pipe at (2) .
a Remove the oil vapour rebreathing pipe.
a Remove:
-the upstream oxygen sensor (see 17B, Petrol in-
jection, Oxygen sensors: Removal - Refitting,
page 17B-1) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
a Drain the manual gearbox (see Manual gearbox
oil: Draining - Refilling) (21A, Manual gearbox).
a Remove:
- the front right-hand wheel driveshaft (see Front ri-
ght-hand wheel driveshaft: Removal - Refitting)
(29A, Driveshafts),
- the right-hand differential output seal (see Diffe-
rential output seal: Removal - Refitting) (21A,
Manual gearbox),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the connecting hose (see 19B, Exhaust, Connec-
ting hose: Removal - Refitting, page 19B-60) ,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
,
- the turbocharger oil pipes (see 12B, Turbochar-
ging, Turbocharger oil pipe: Removal - Refit-
ting, page 12B-22) ,
- the turbocharger (see 12B, Turbocharging, Tur-
bocharger: Removal - Refitting, page 12B-8) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the oil decanter bolts,
- the oil separator.
135778
135779
120209
